Connector Locations

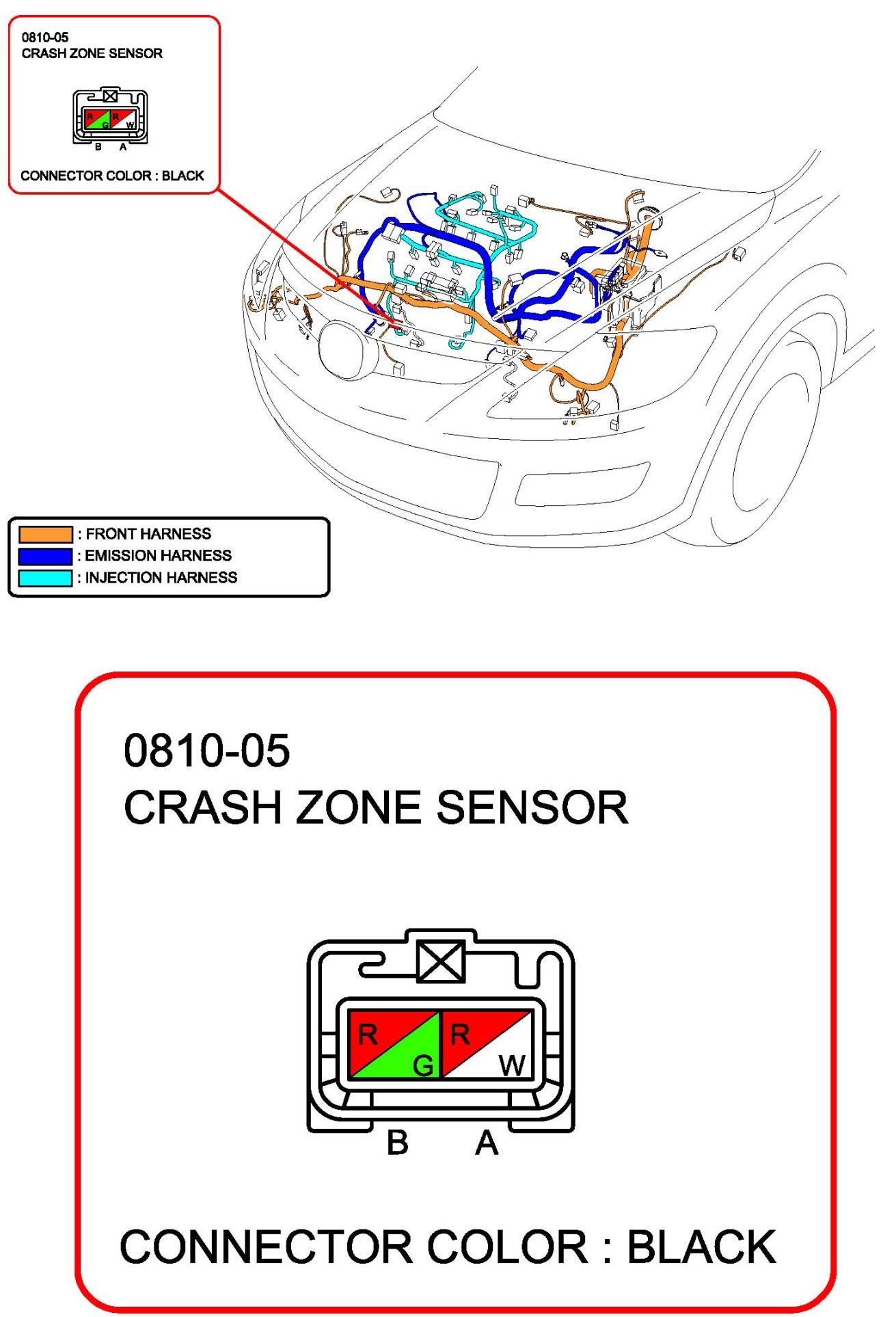

Crash Zone Sensor:

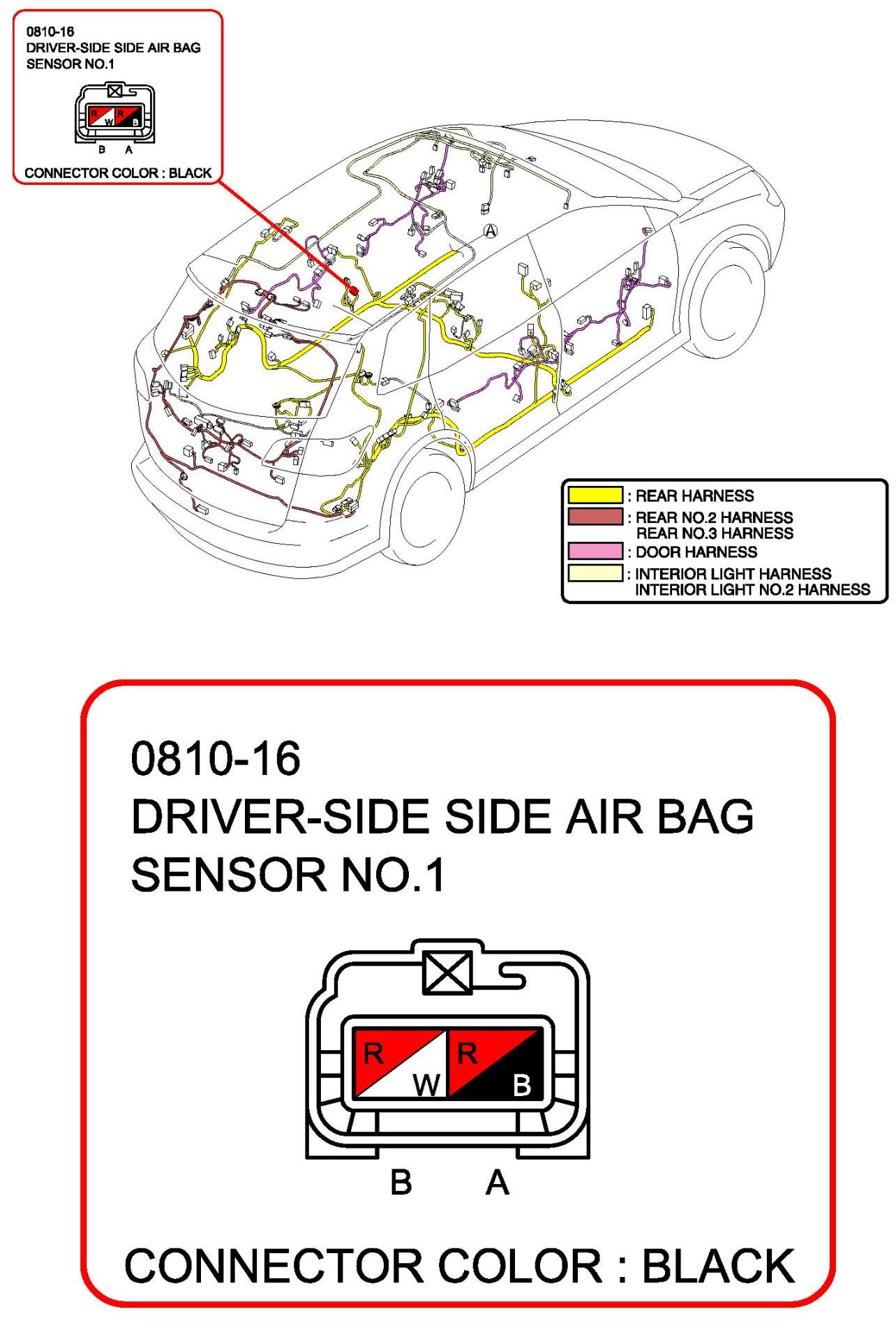

Driver-Side Side Air Bag Sensor No.1:

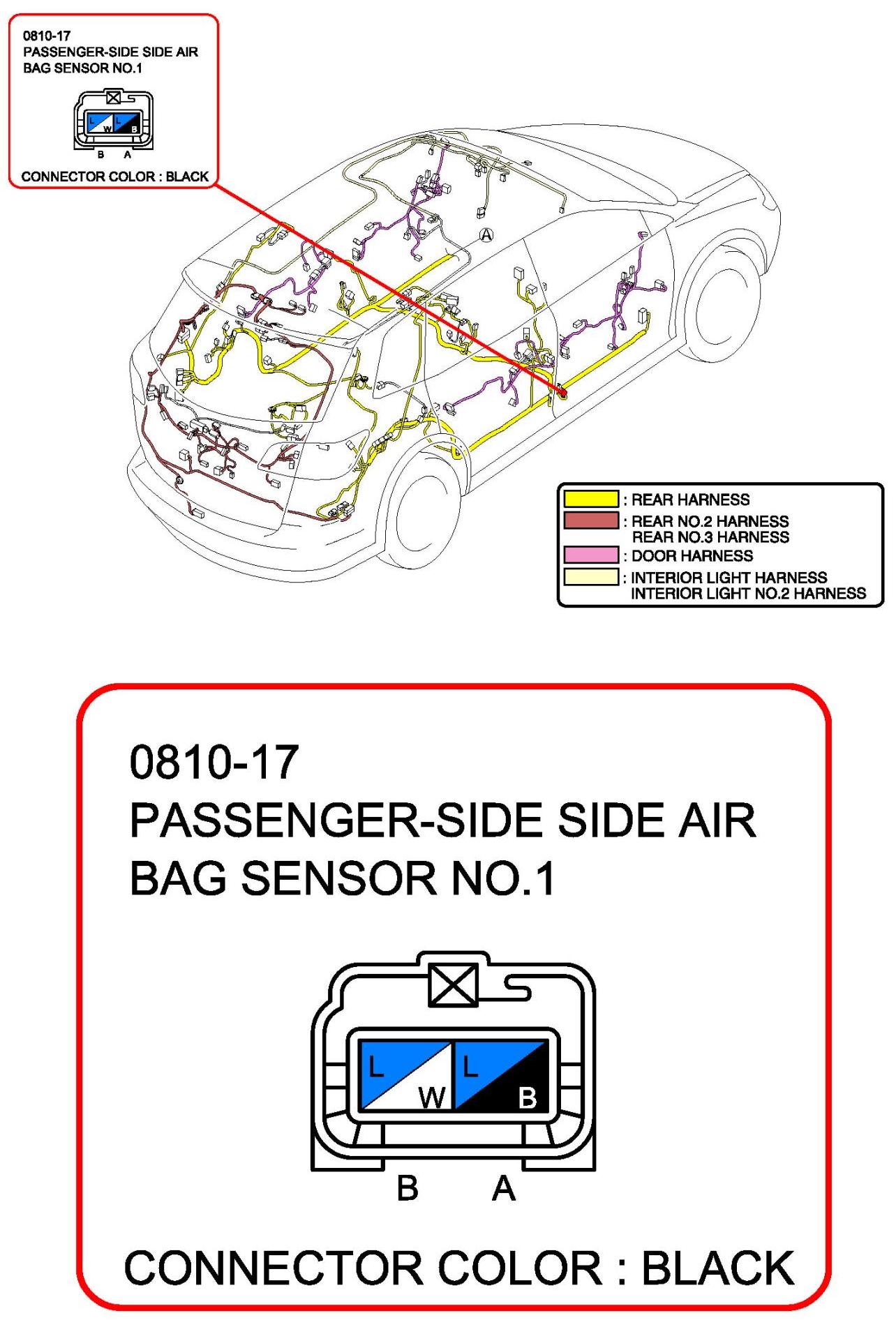

Passenger-Side Side Air Bag Sensor N0.1:

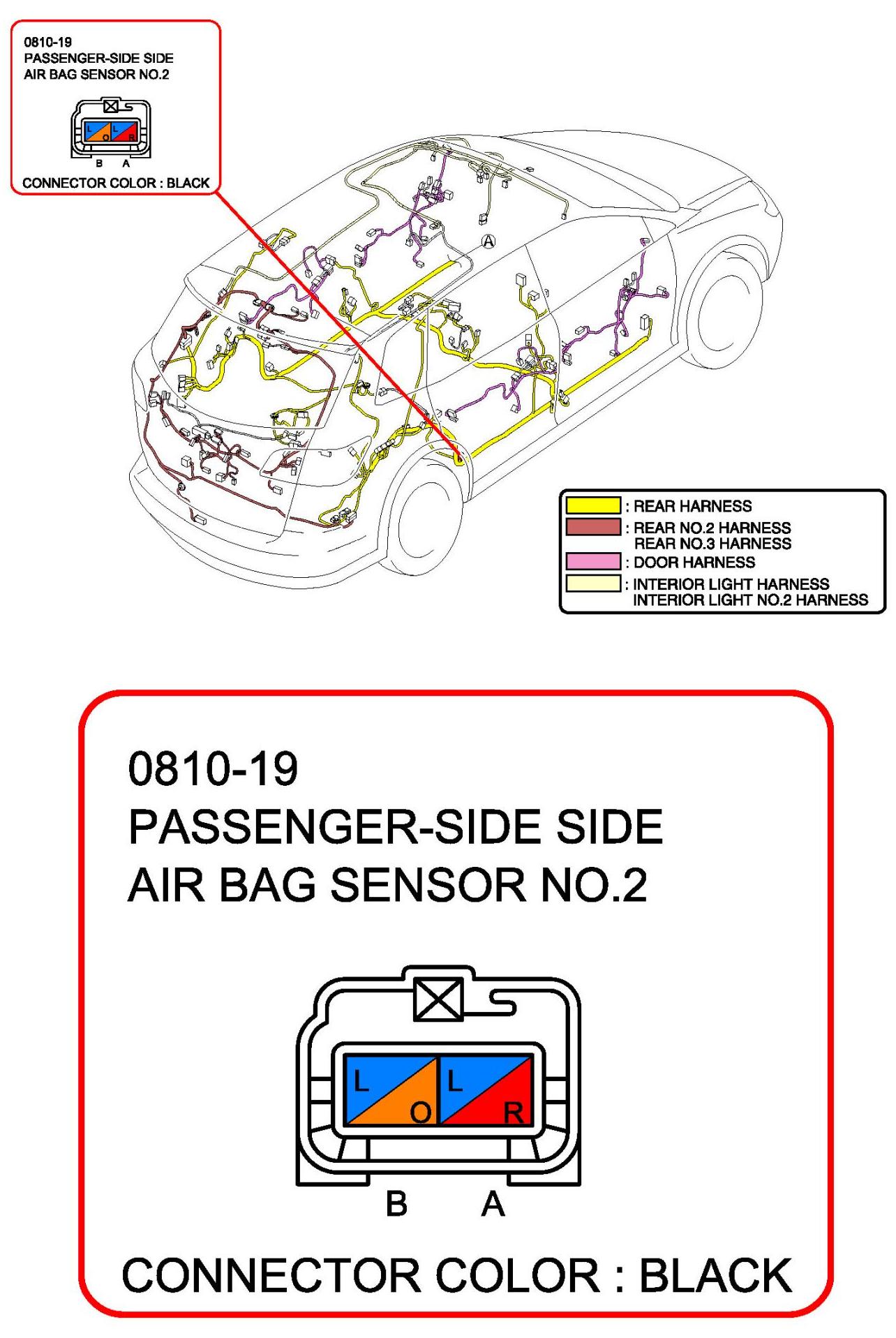

Passenger-Side Side Air Bag Sensor No.2:

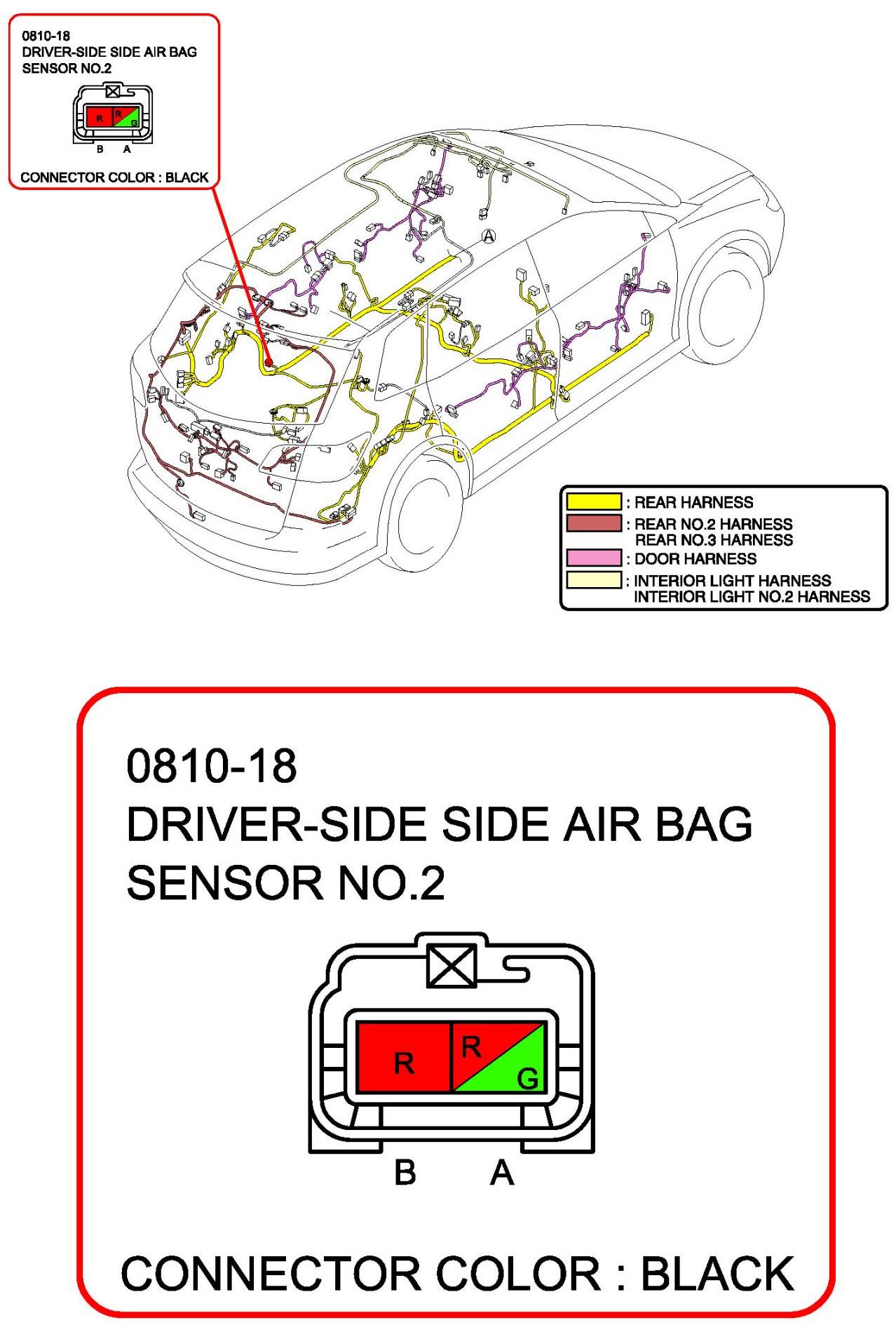

Driver-Side Side Air Bag Sensor No.2:
