Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

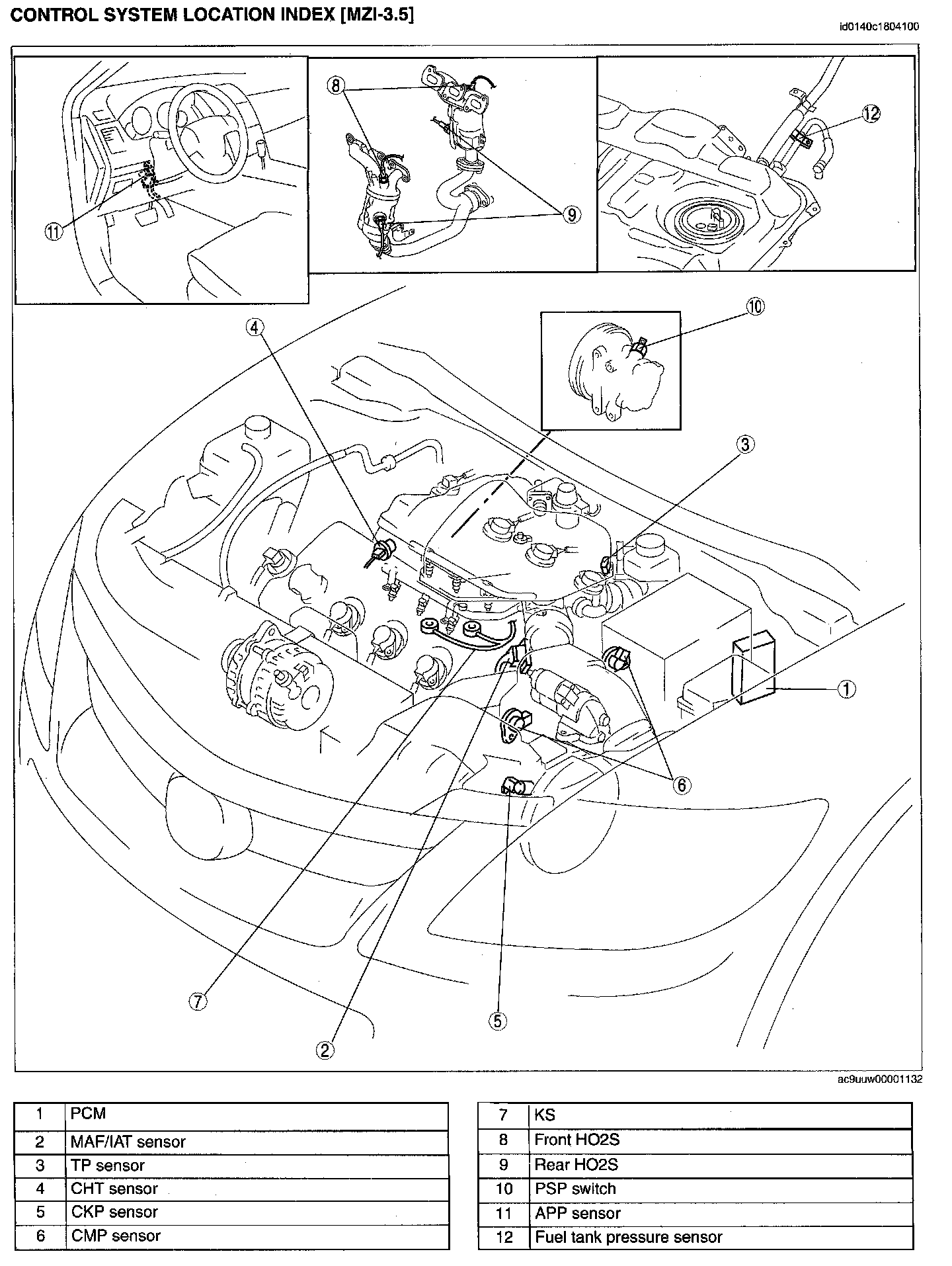

Control System Location Index:
