[2WD]

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD]
1. Remove the trunk box.
2. Remove the seat side box.
3. Remove the third-row seat.
4. Remove the rear scuff plate inner.
5. Remove the third-row seat belt lower anchor installation bolt.
6. Remove the trunk side trim.

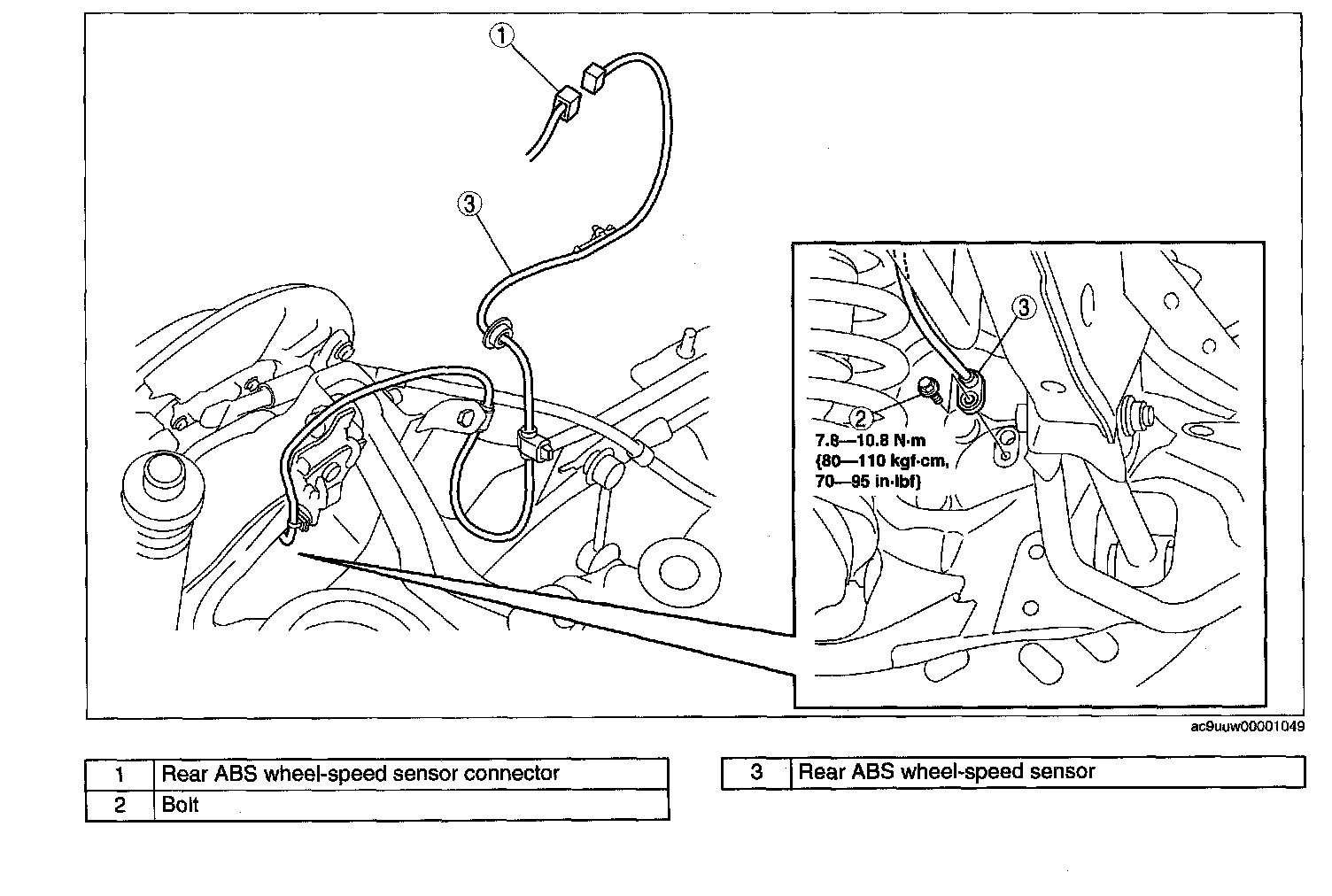

7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.
