Trunk / Liftgate Switch: Locations

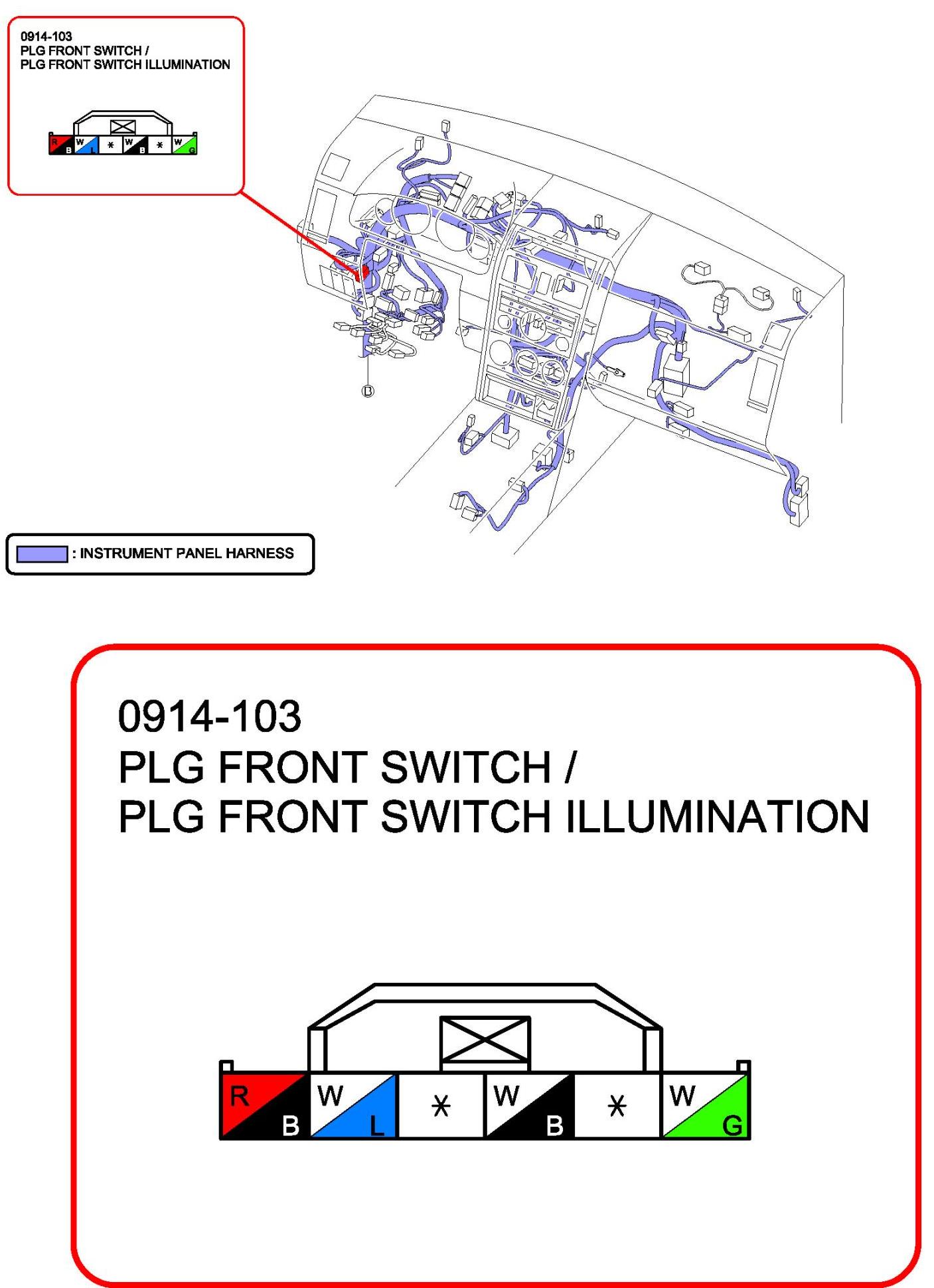

PLG Front Switch/PLG Front Switch Illumination:

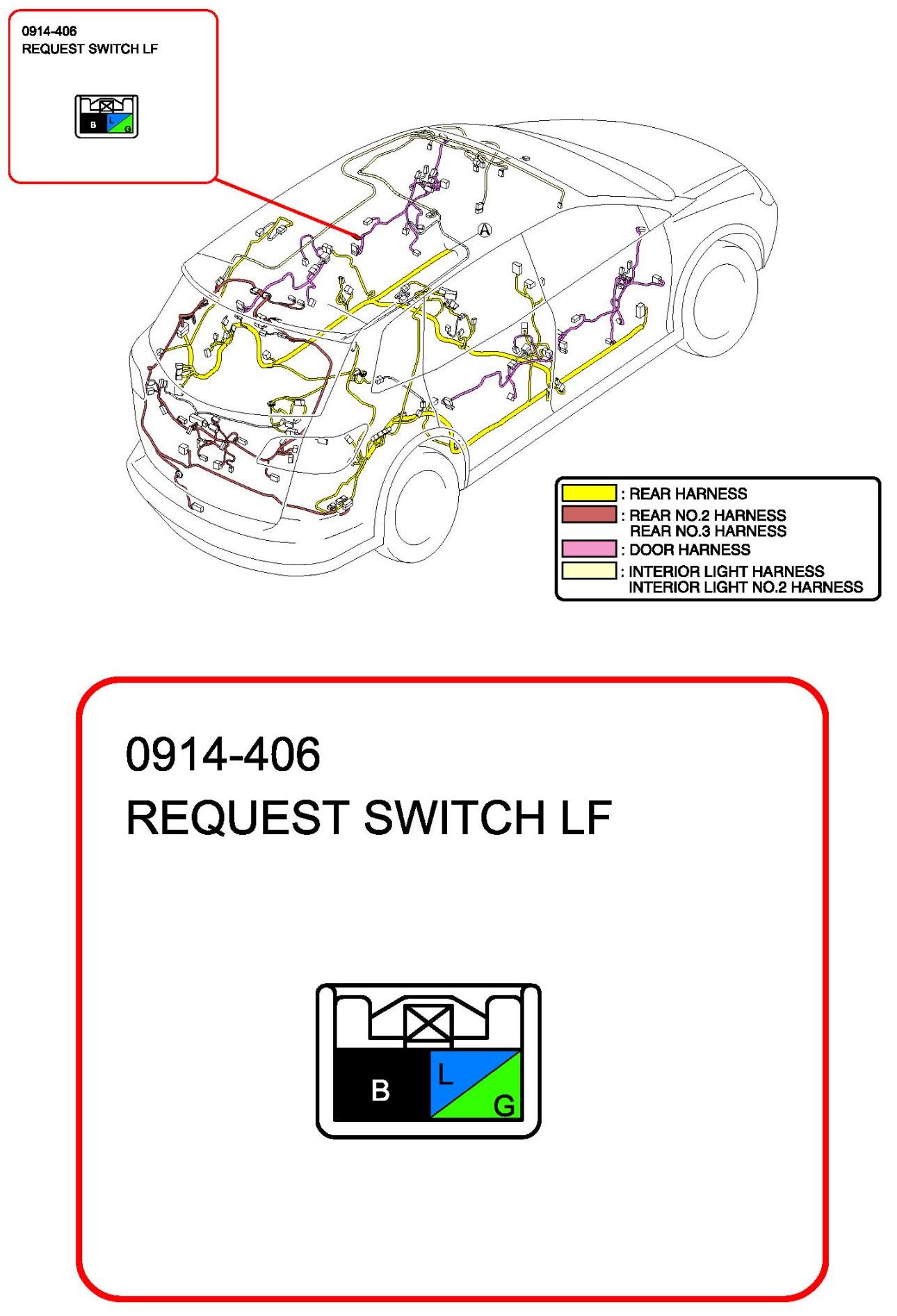

Request Switch LF:



Request Switch RF:

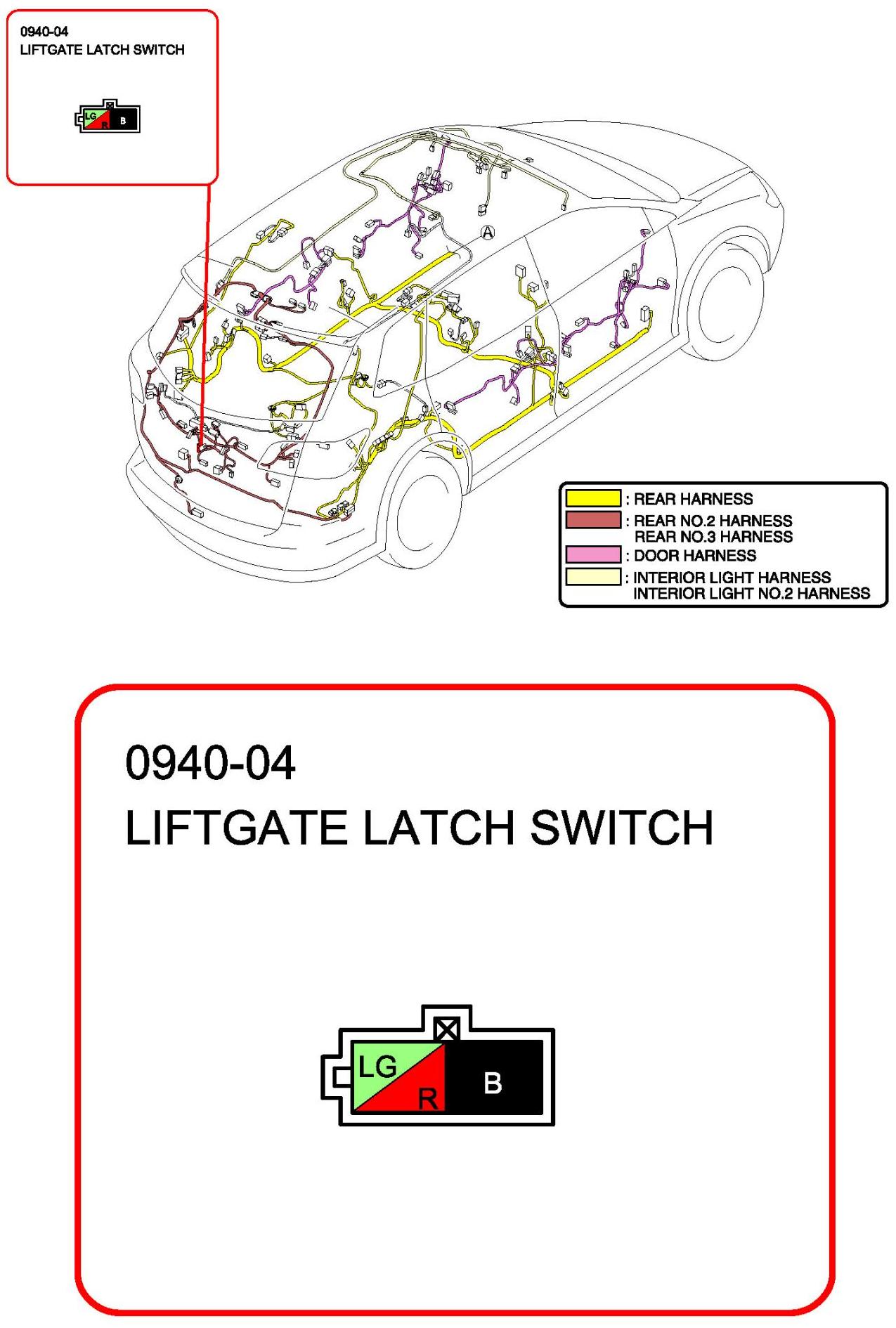

Liftgate Latch Switch:

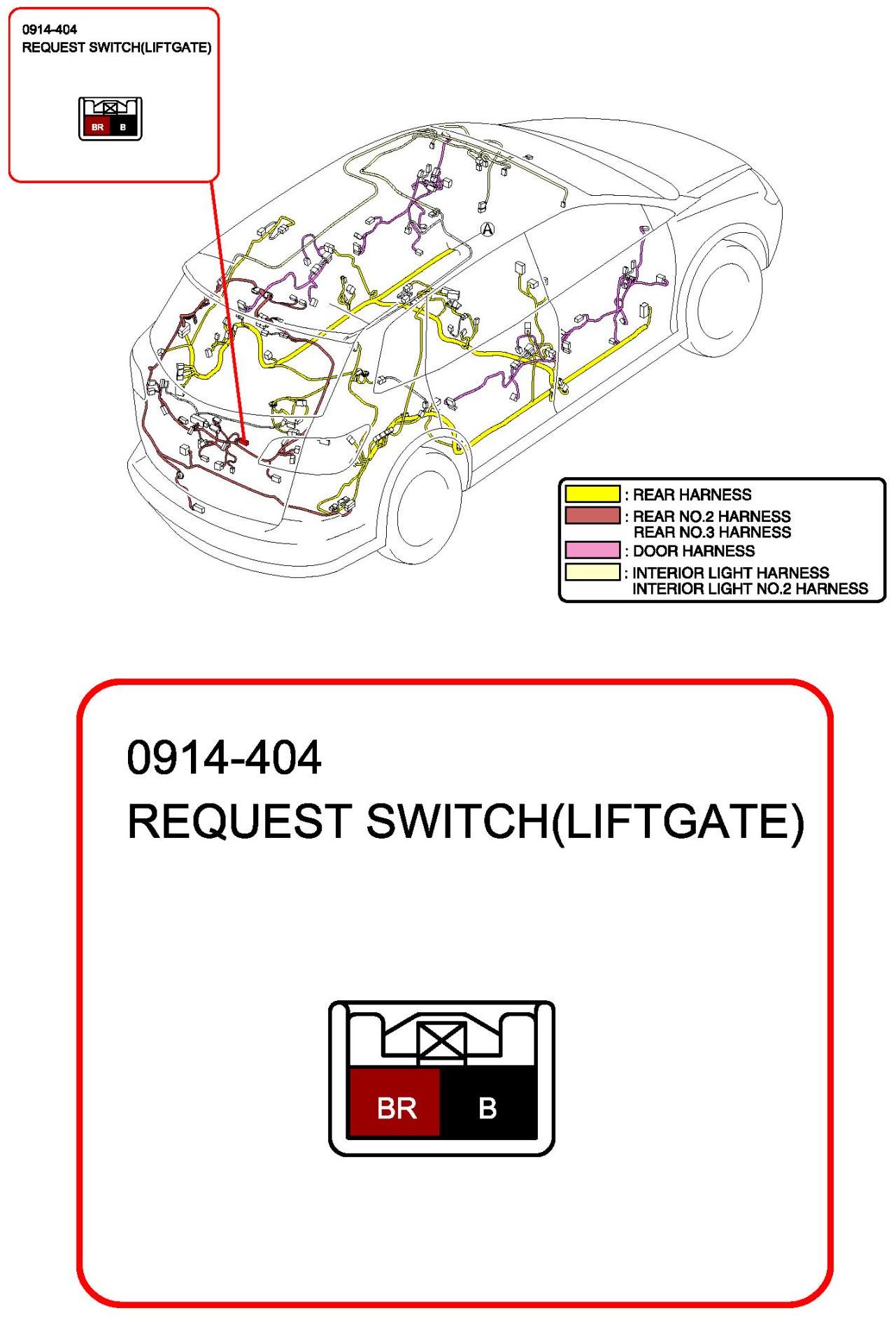

Request Switch(Liftgate):

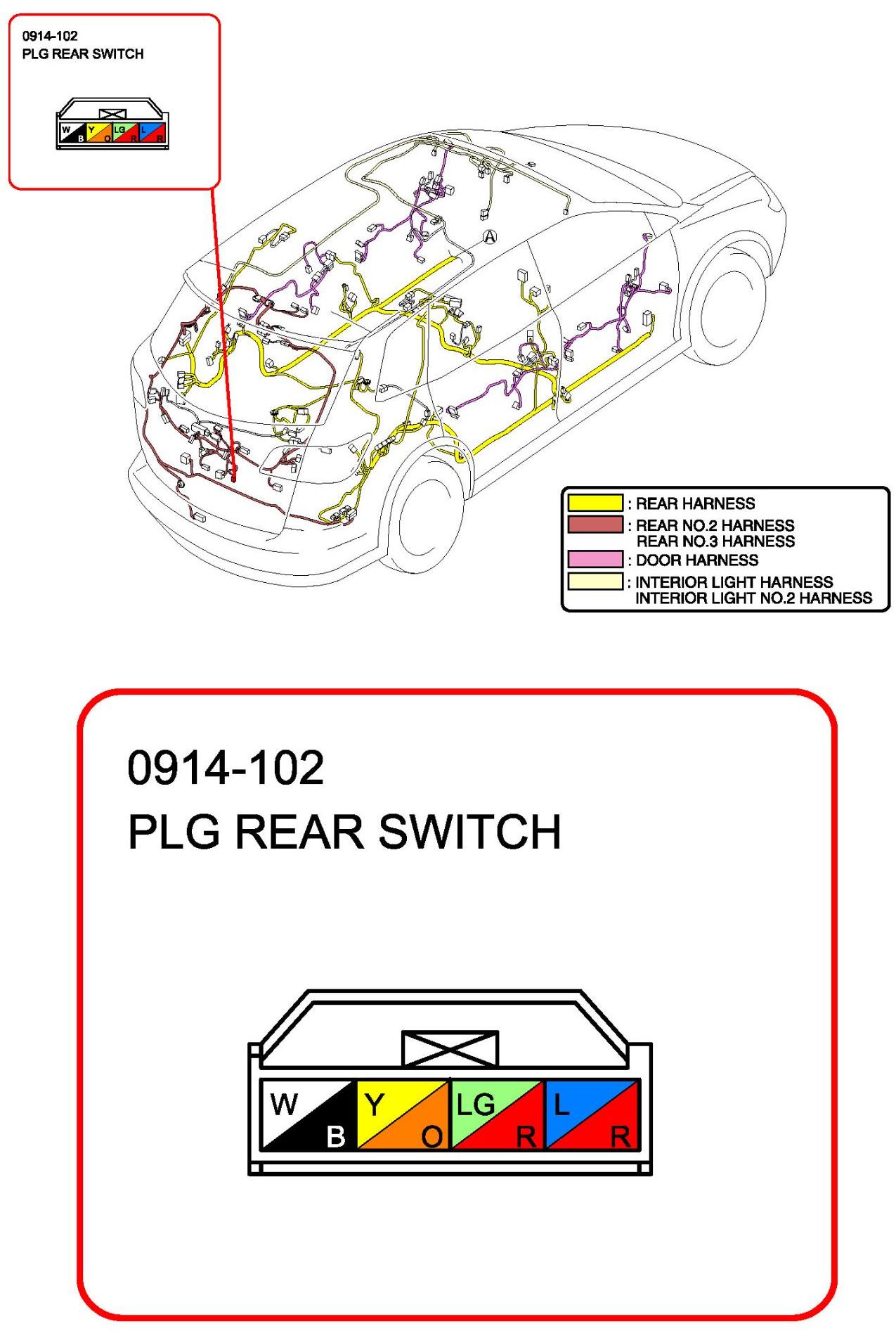

PLG Rear Switch:
