Power Seat Switch Inspection

POWER SEAT SWITCH INSPECTION

1. Disconnect the power seat switch connector.

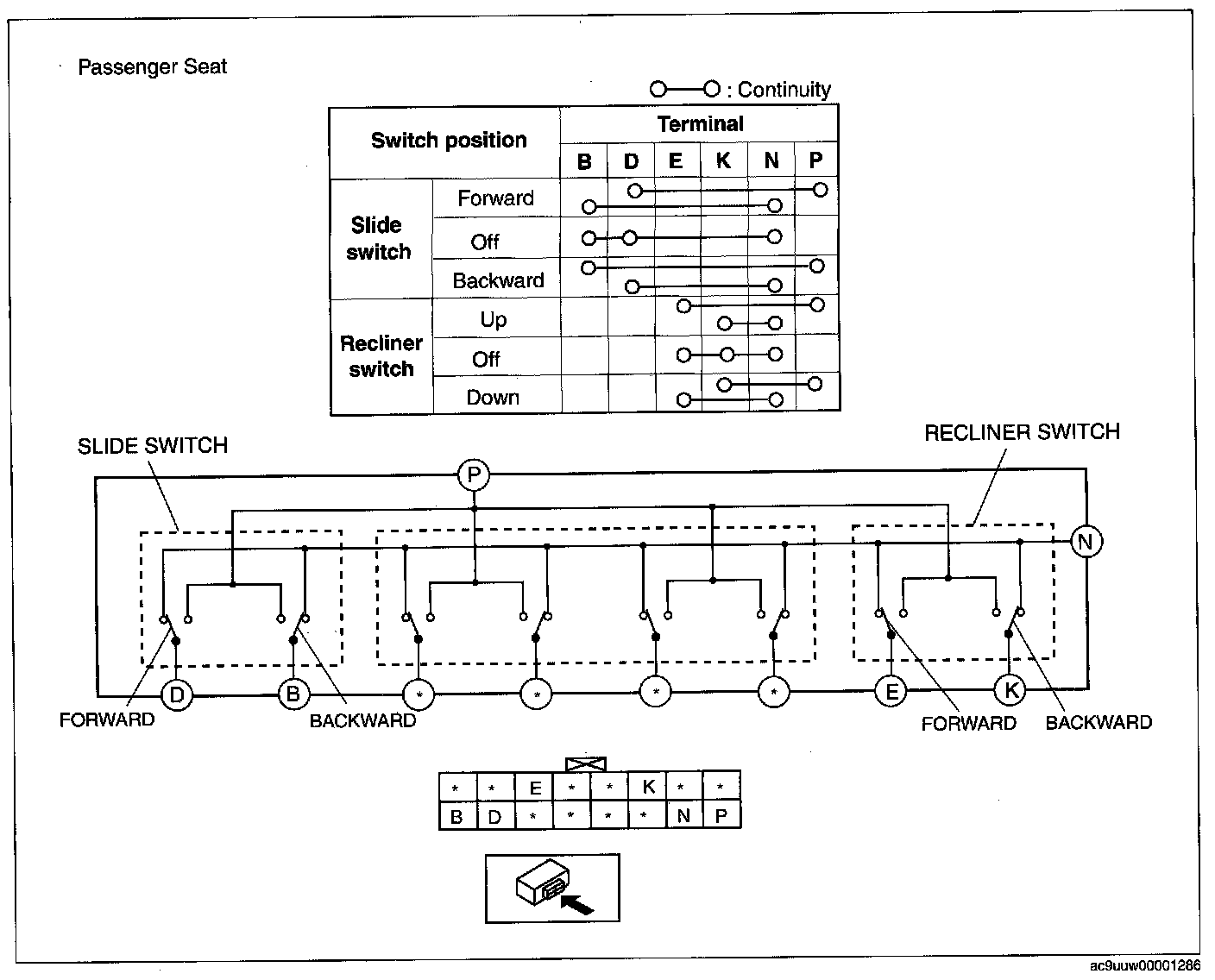

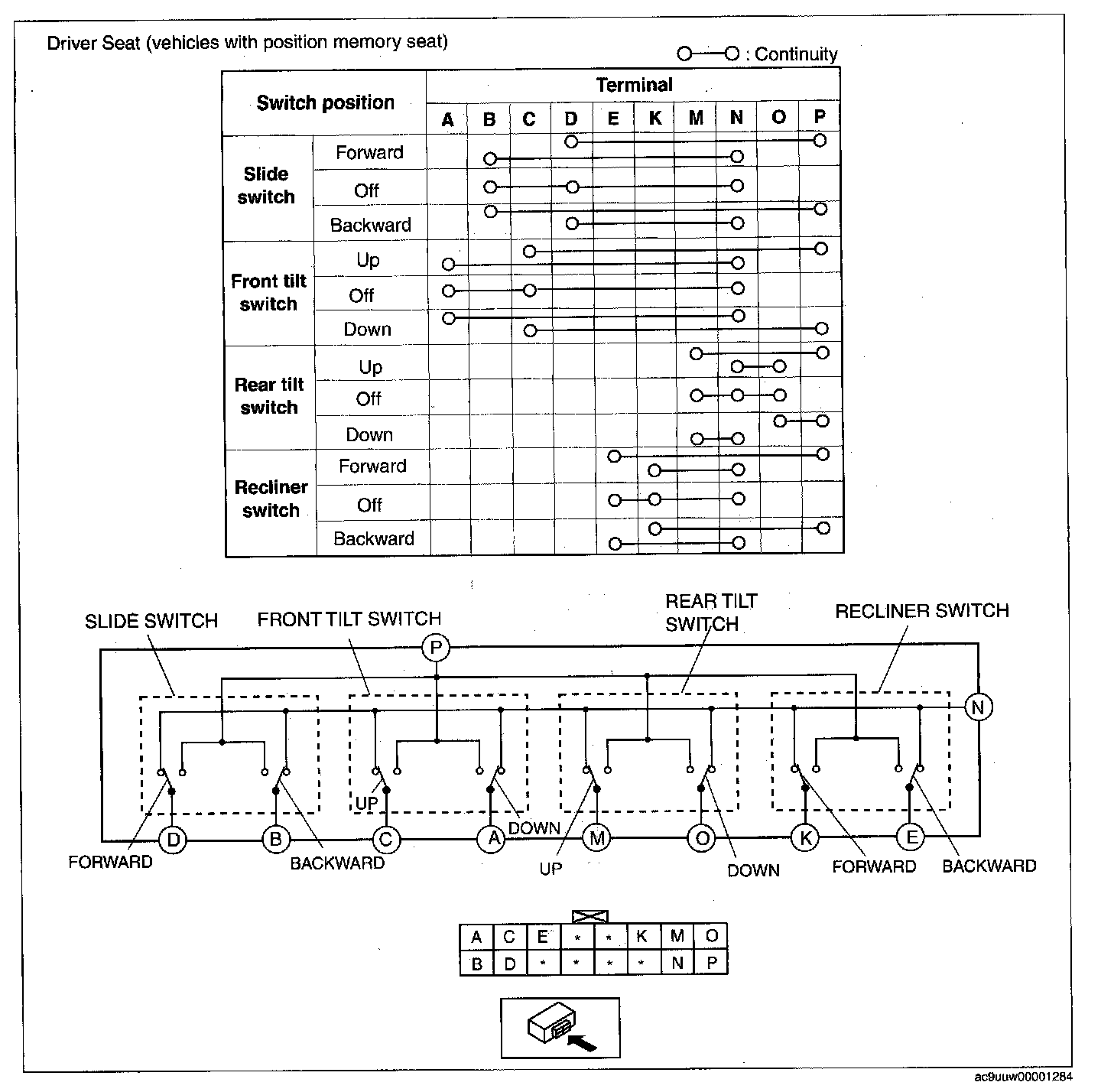

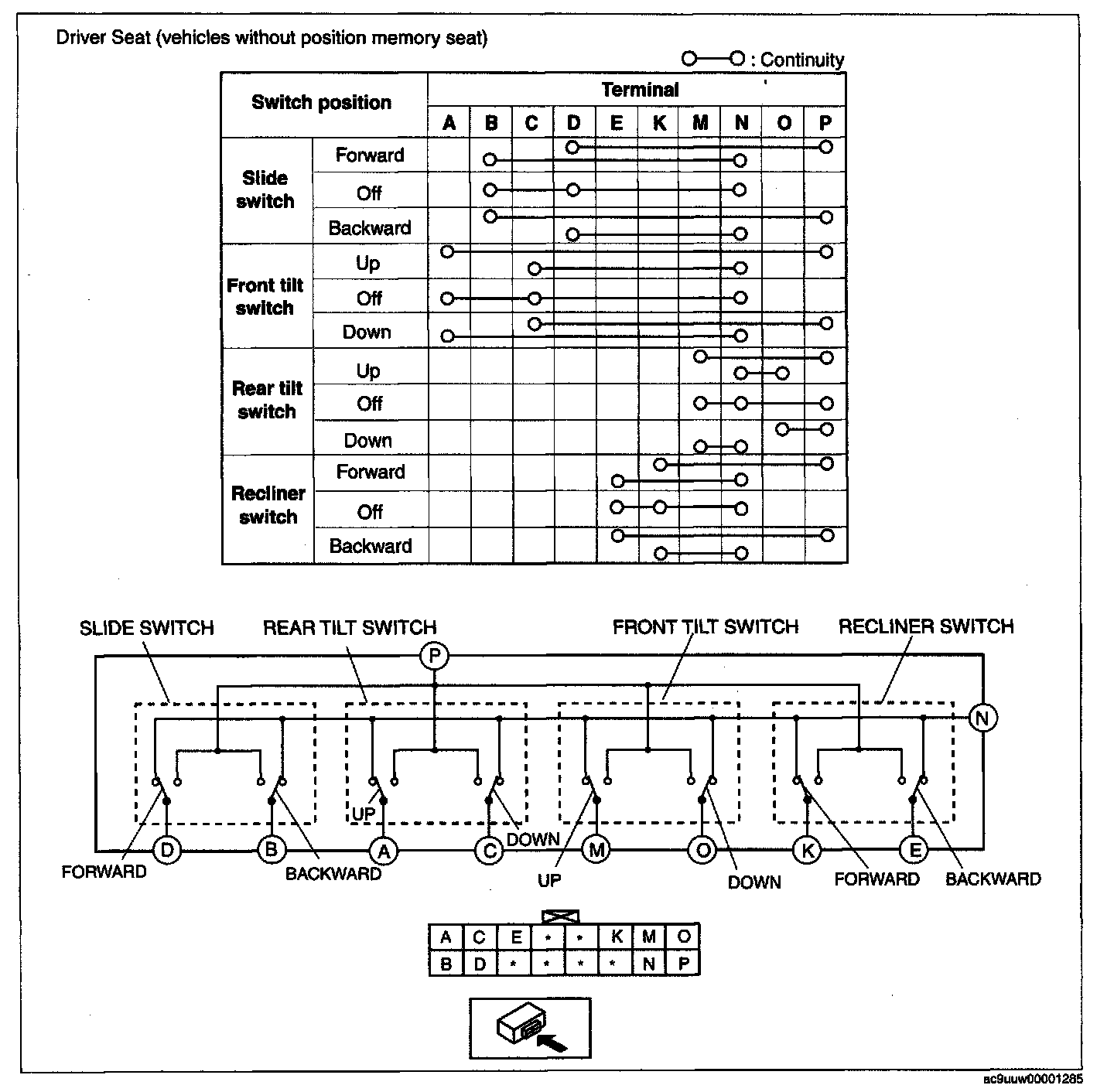

2. Inspect for continuity between the power seat switch connector terminals.
- If not as specified, replace the power seat switch.
