Connector Locations

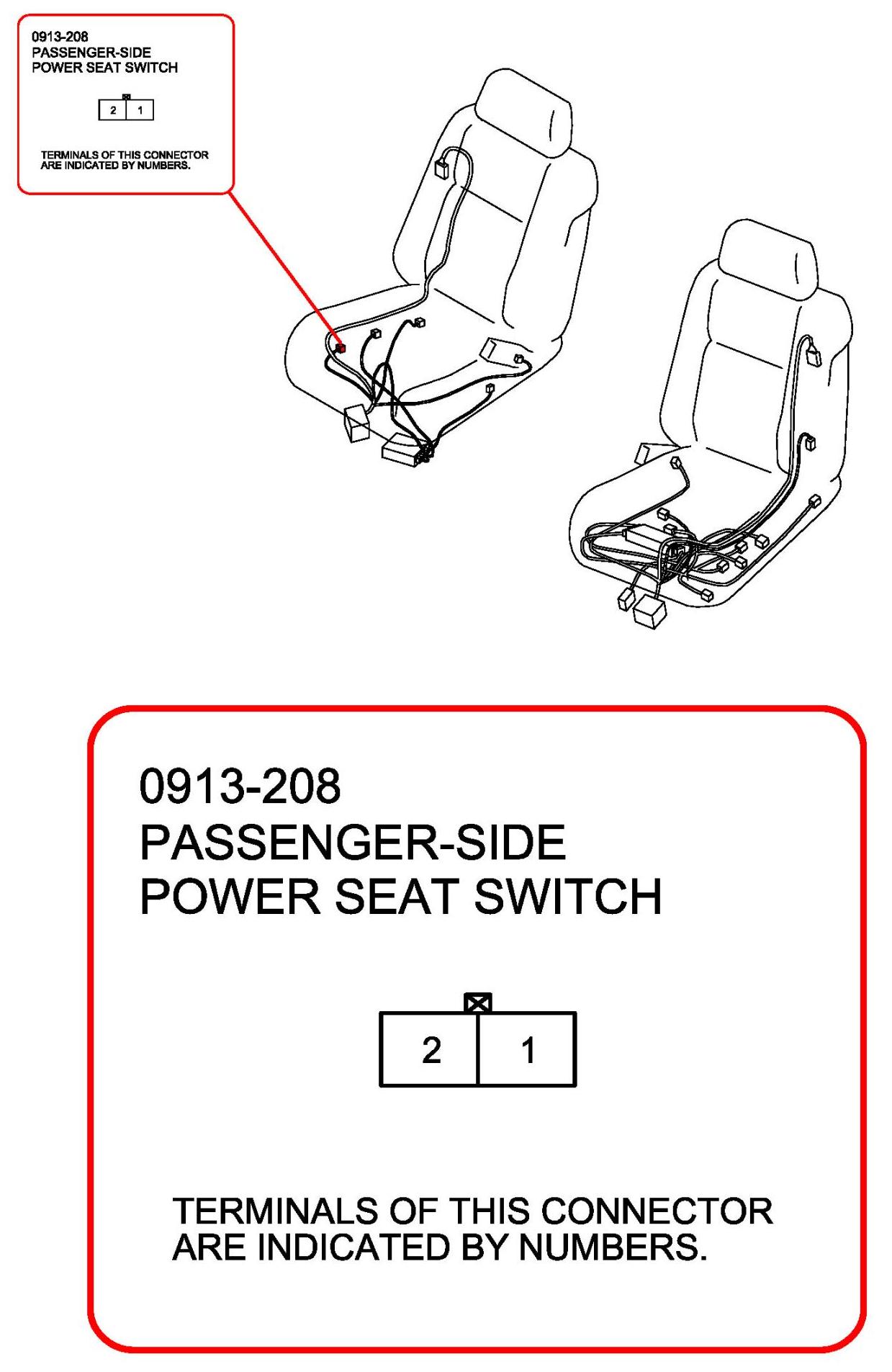

Passenger-Side Power Seat Switch:

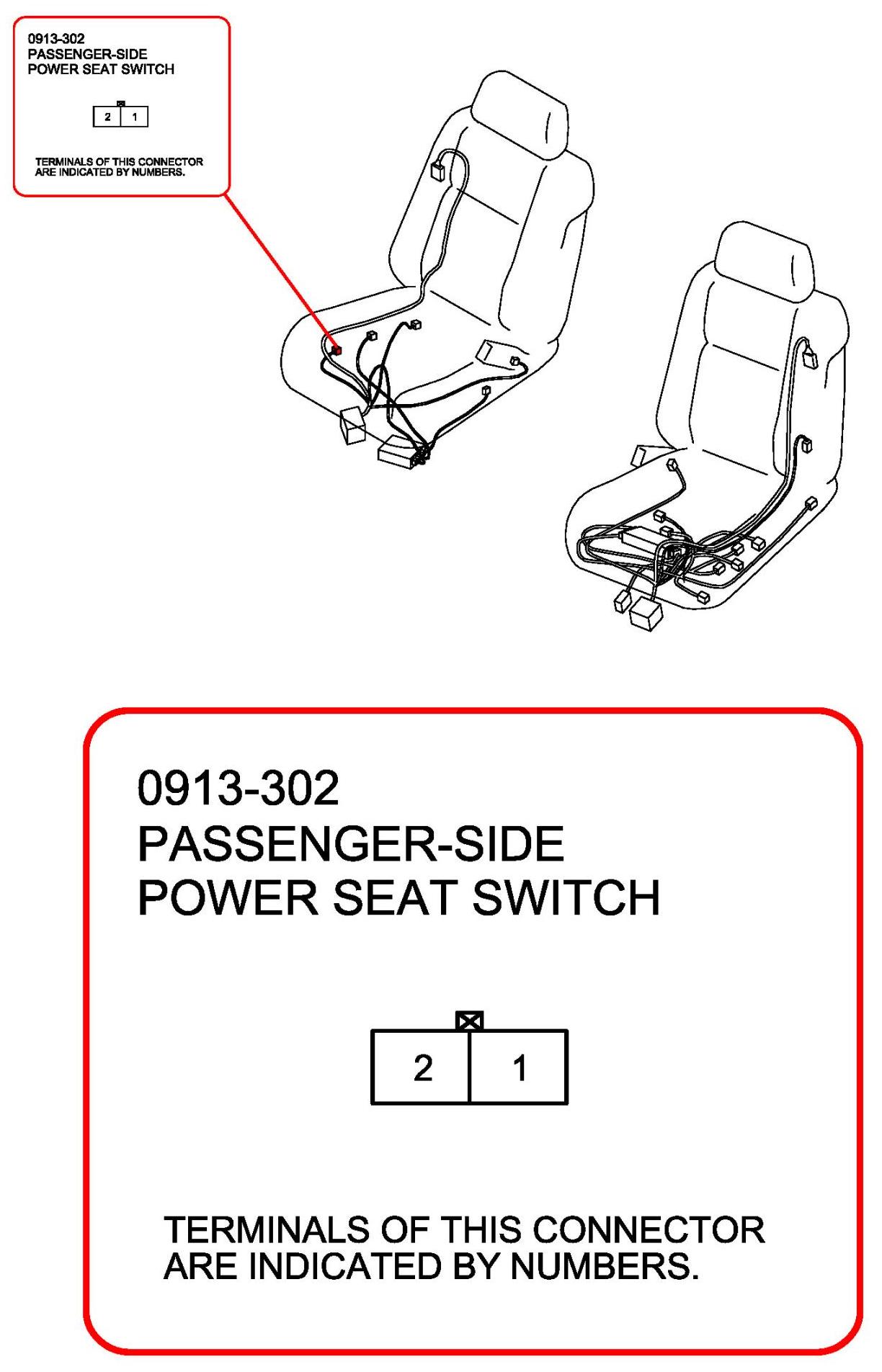

Passenger-Side Power Seat Switch:

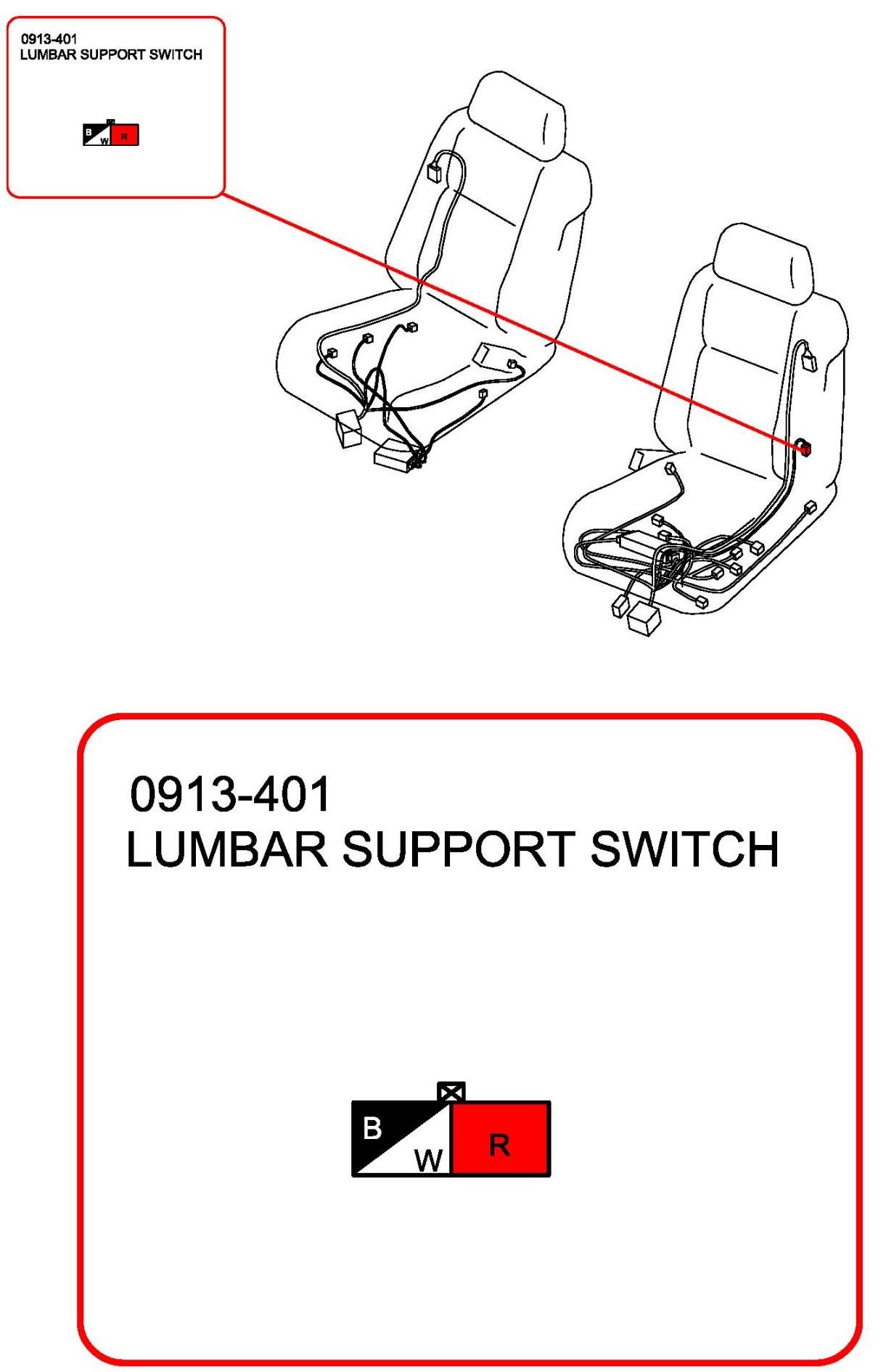

Lumbar Support Switch:

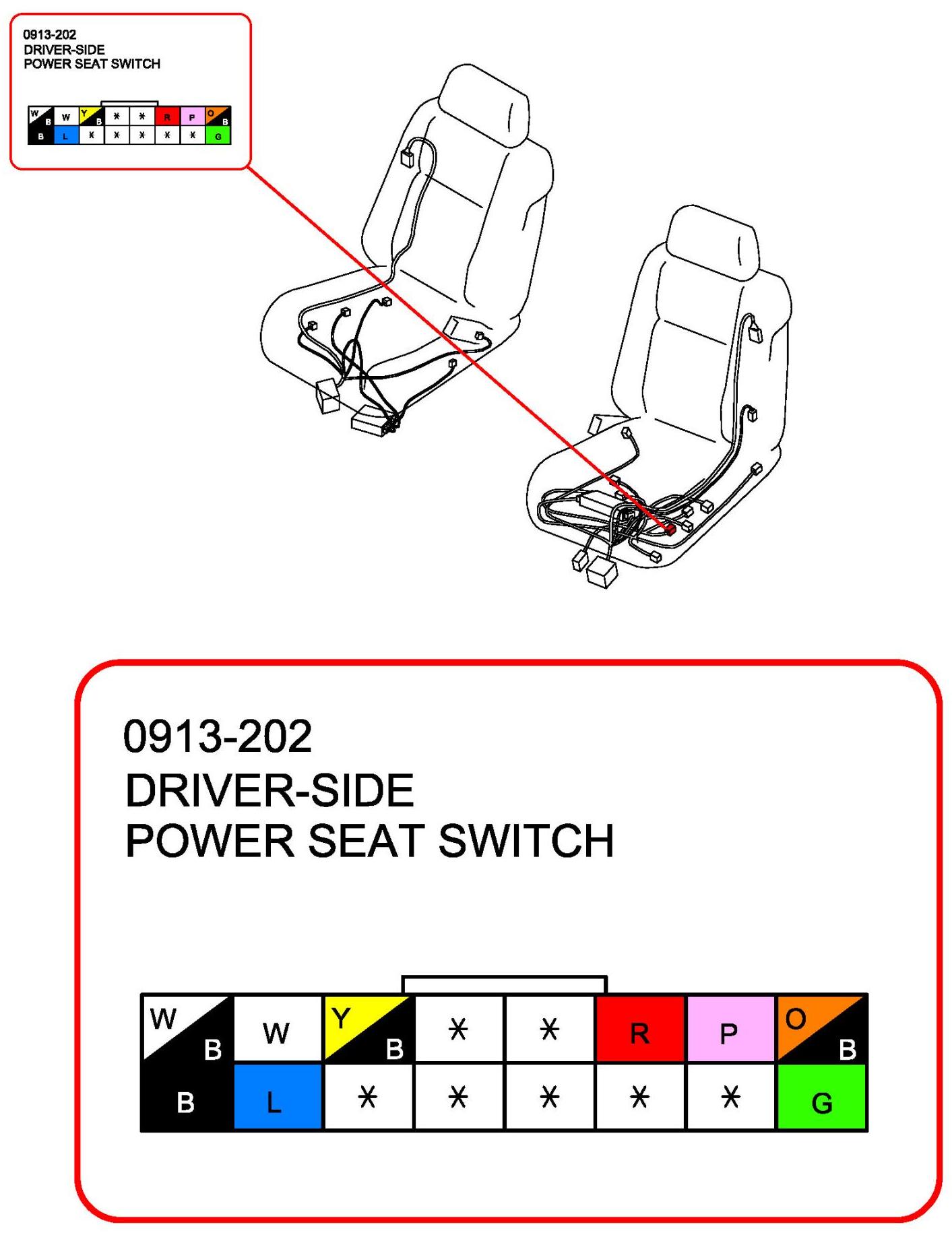

Driver-Side Power Seat Switch:

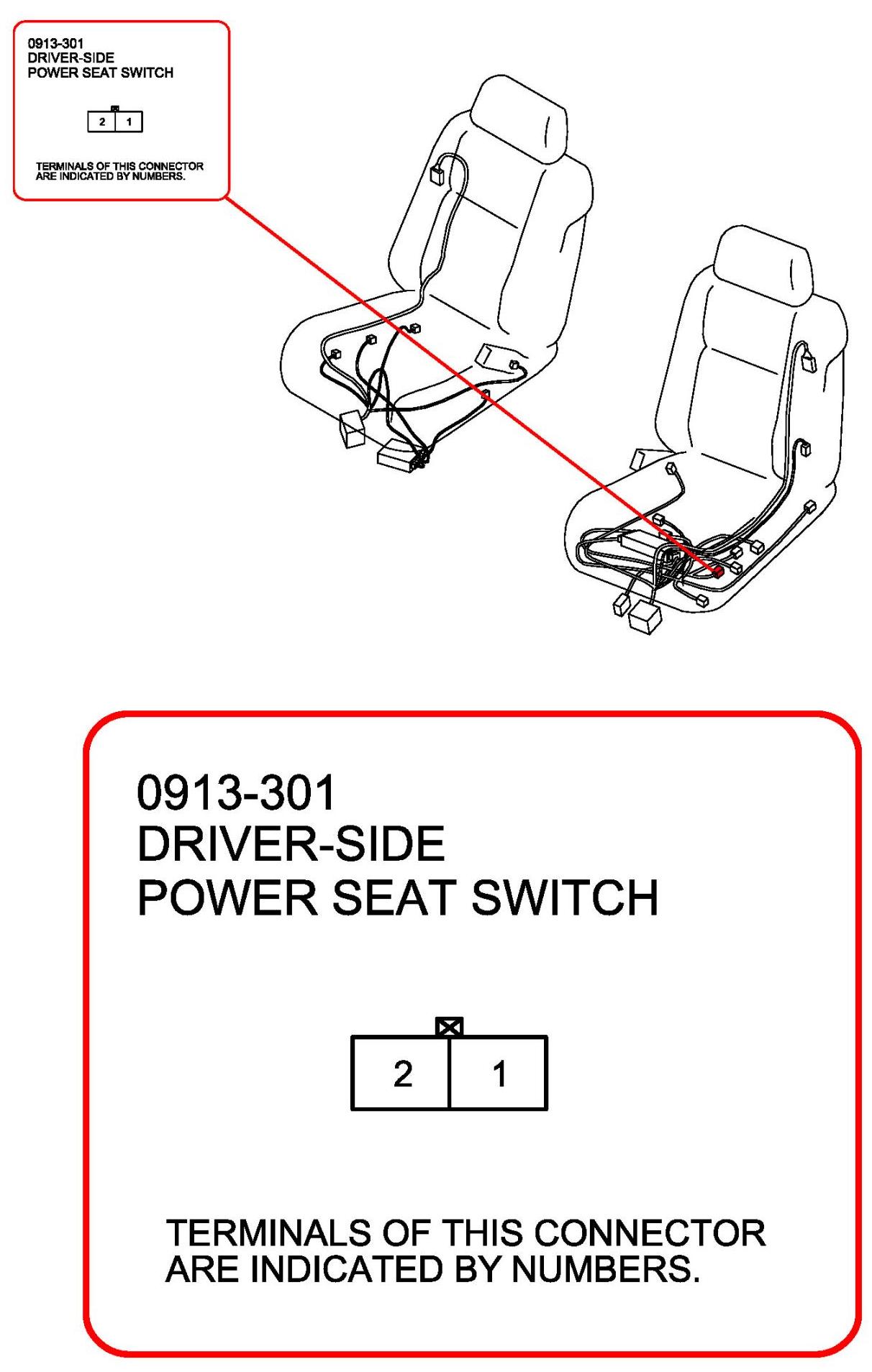

Driver-Side Power Seat Switch:
