Power Seat Motor Position Sensor: Locations

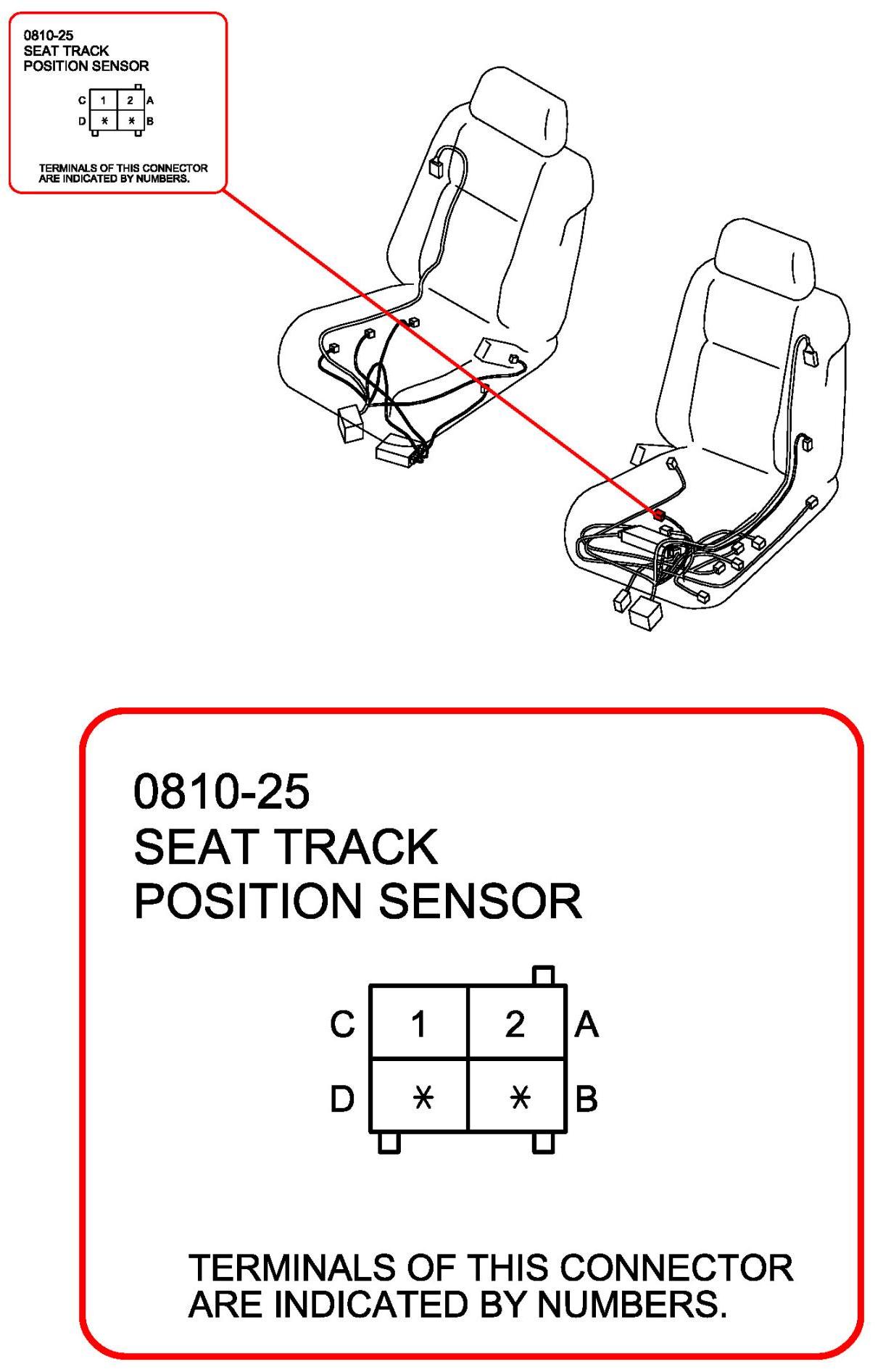

Seat Track Position Sensor:

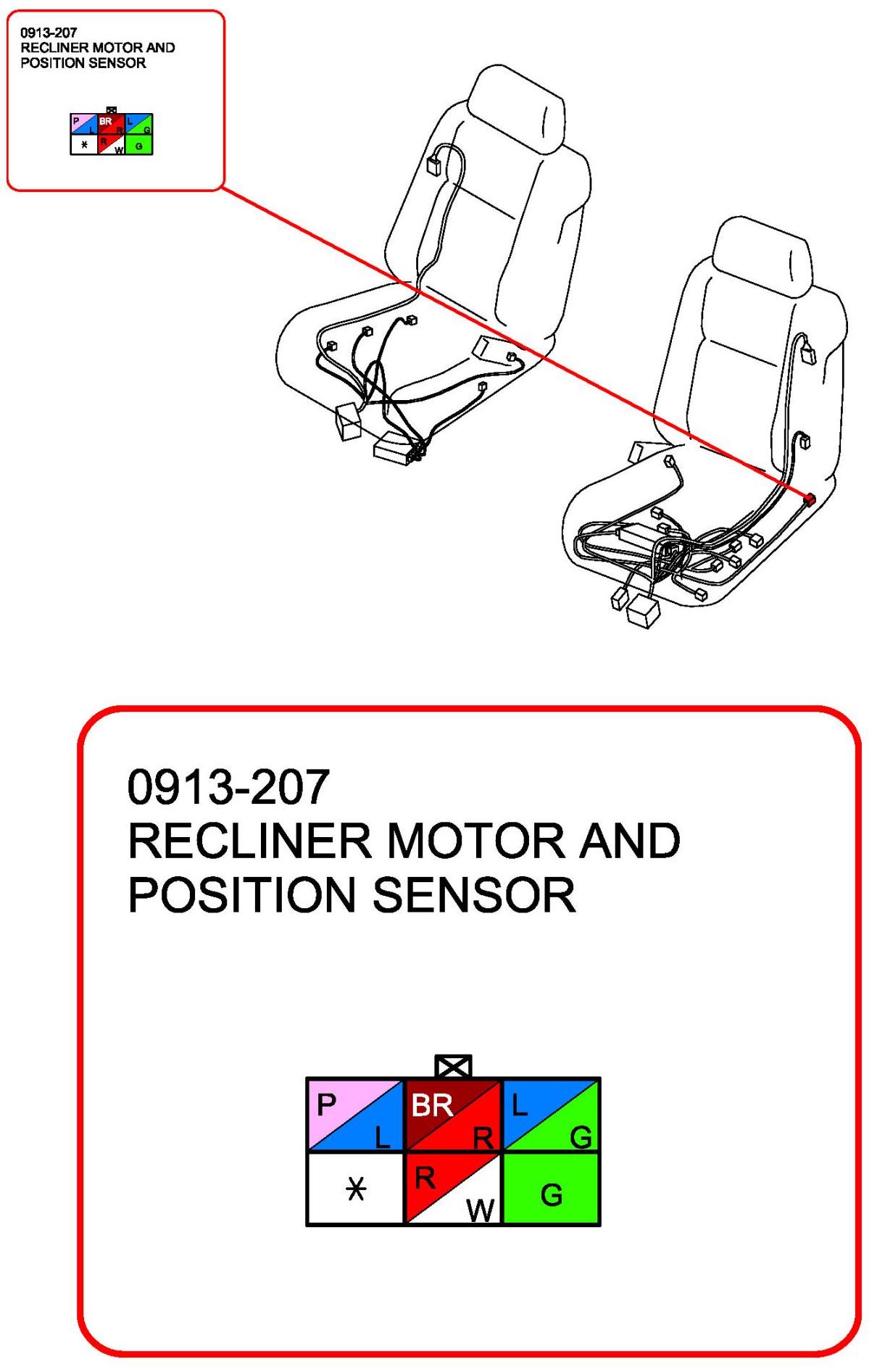

Recliner Motor And Position Sensor:

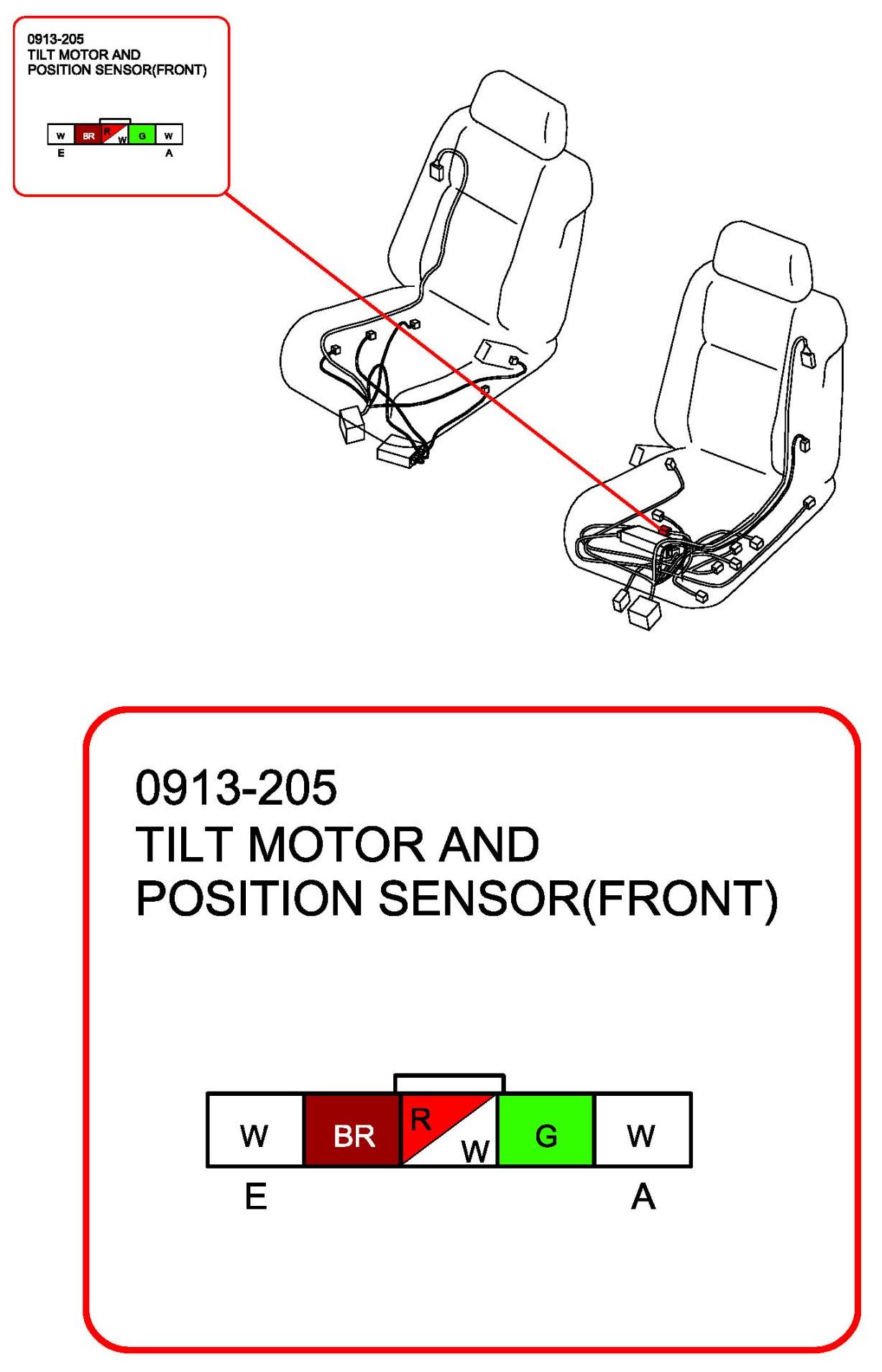

Tilt Motor And Position Sensor(Front):

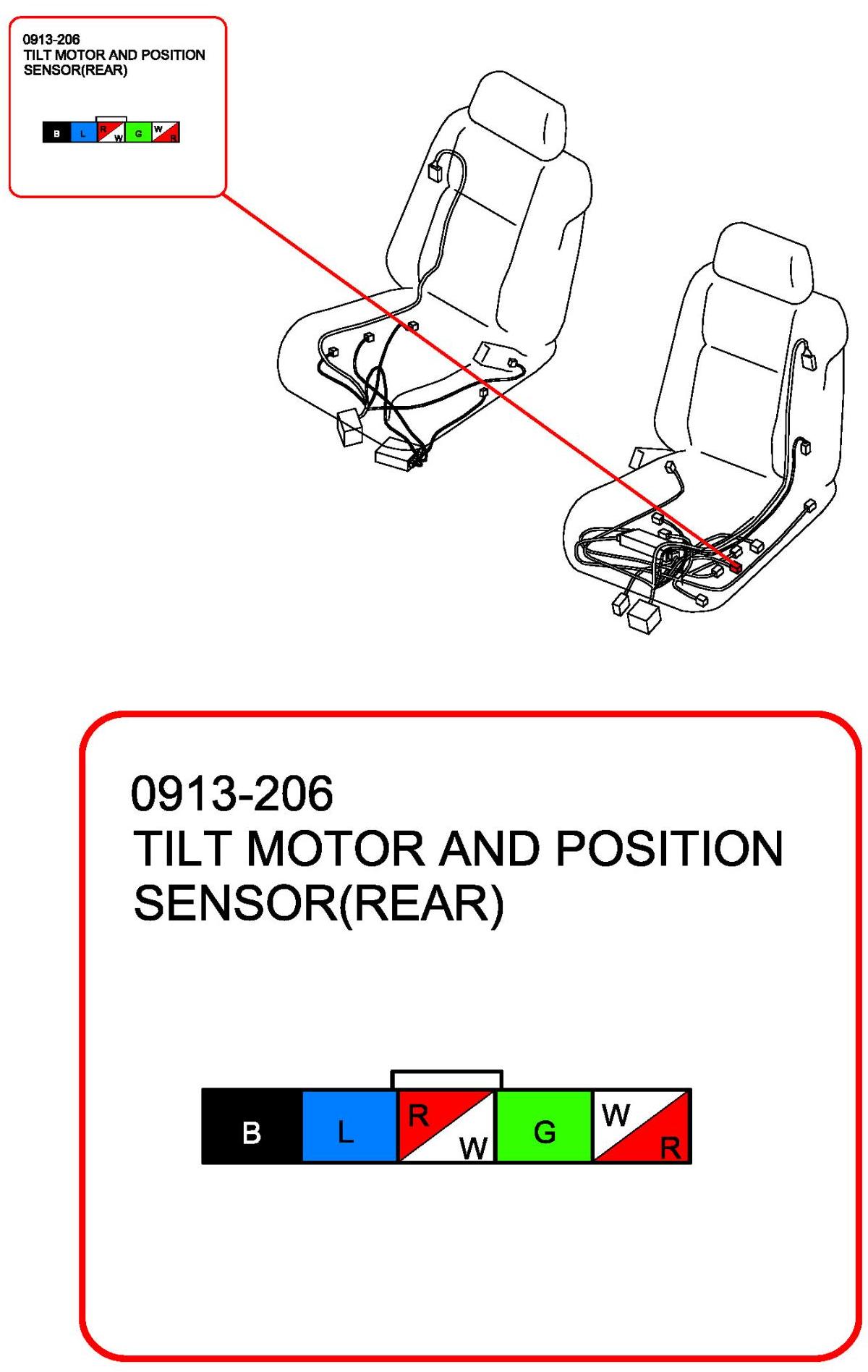

Tilt Motor And Position Sensor(Rear):

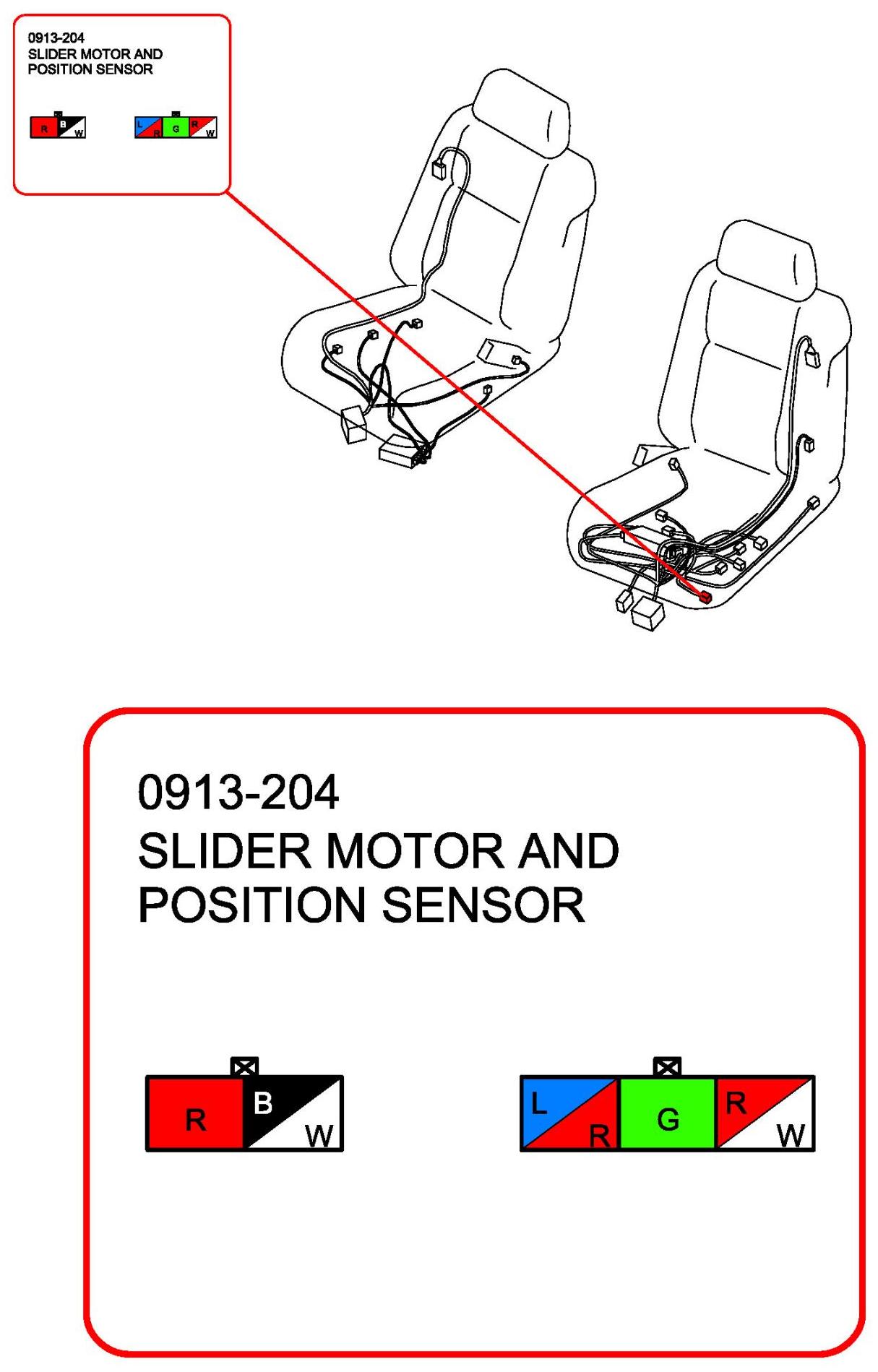

Slider Motor And Position Sensor:
