Fuel Pump Relay
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

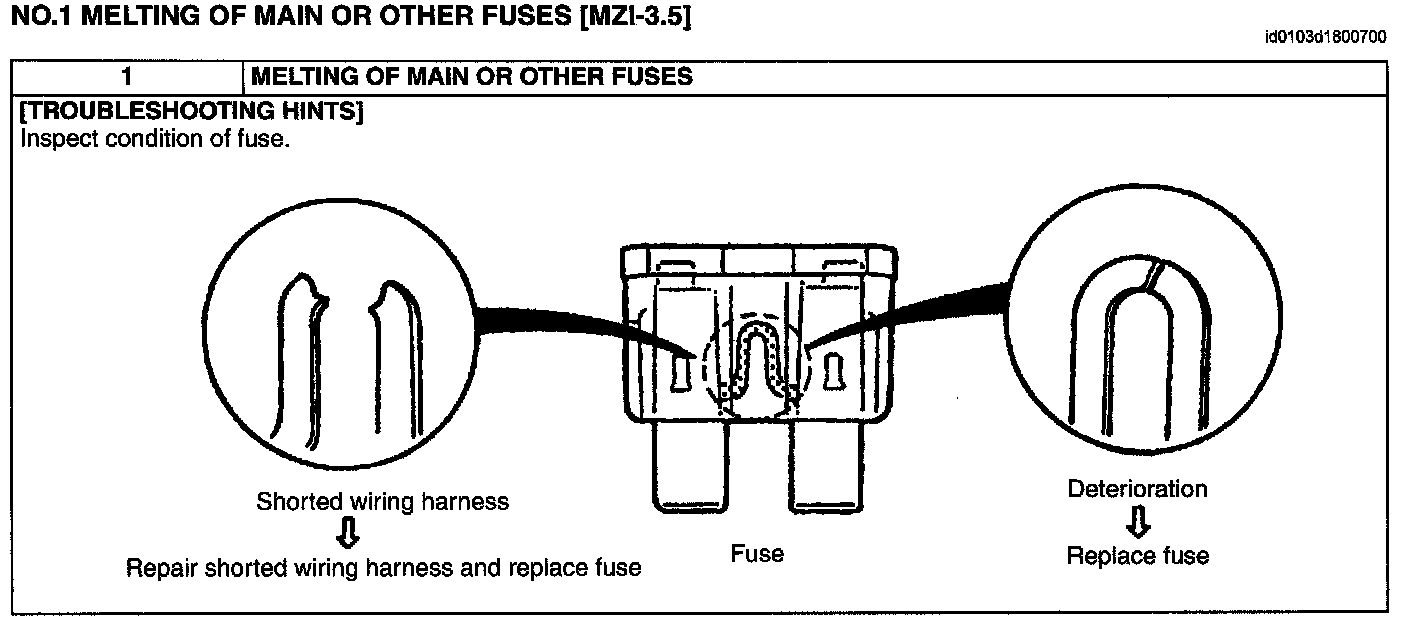

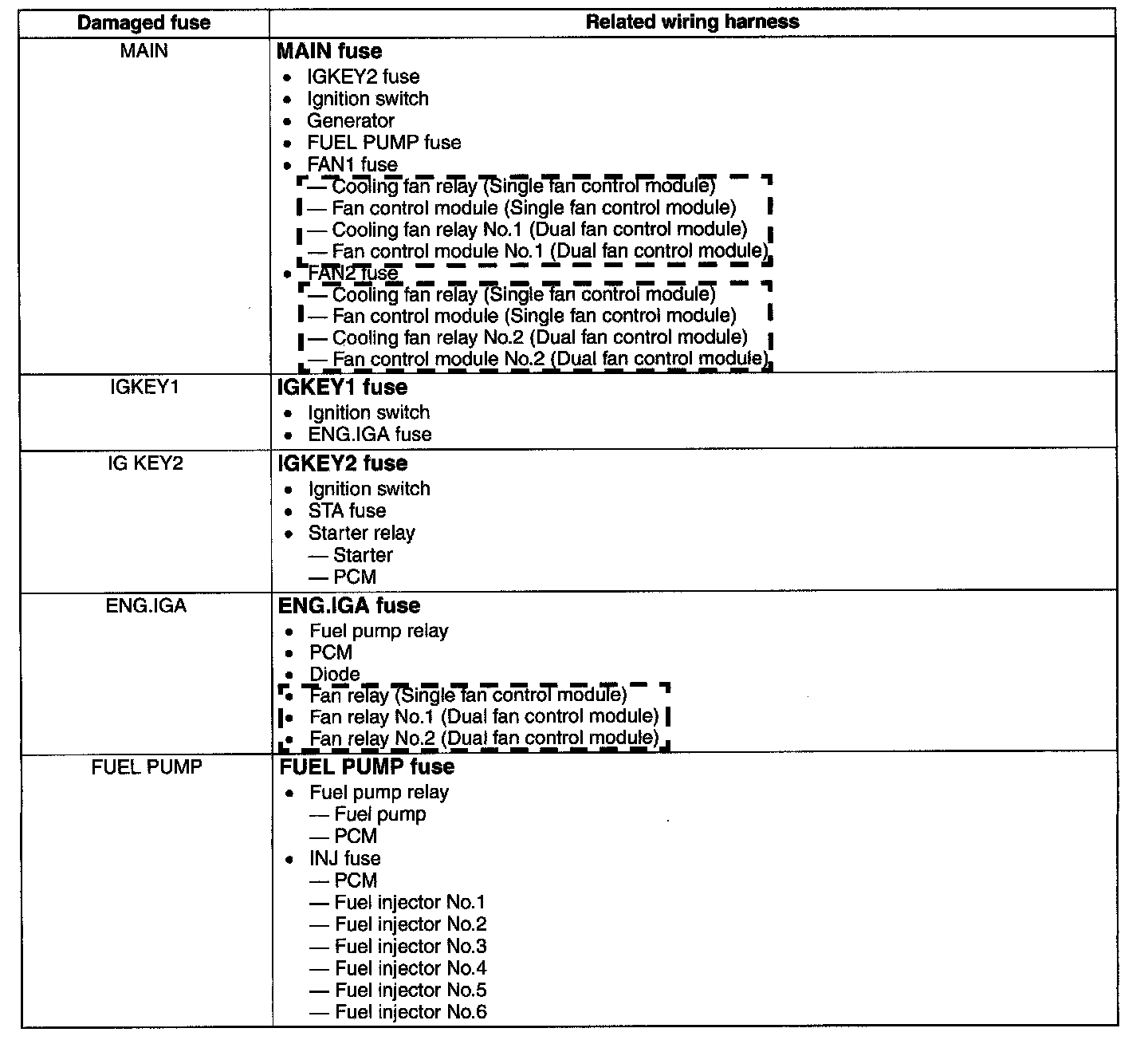

No.1 Melting Of Main Or Other Fuses Part 1:

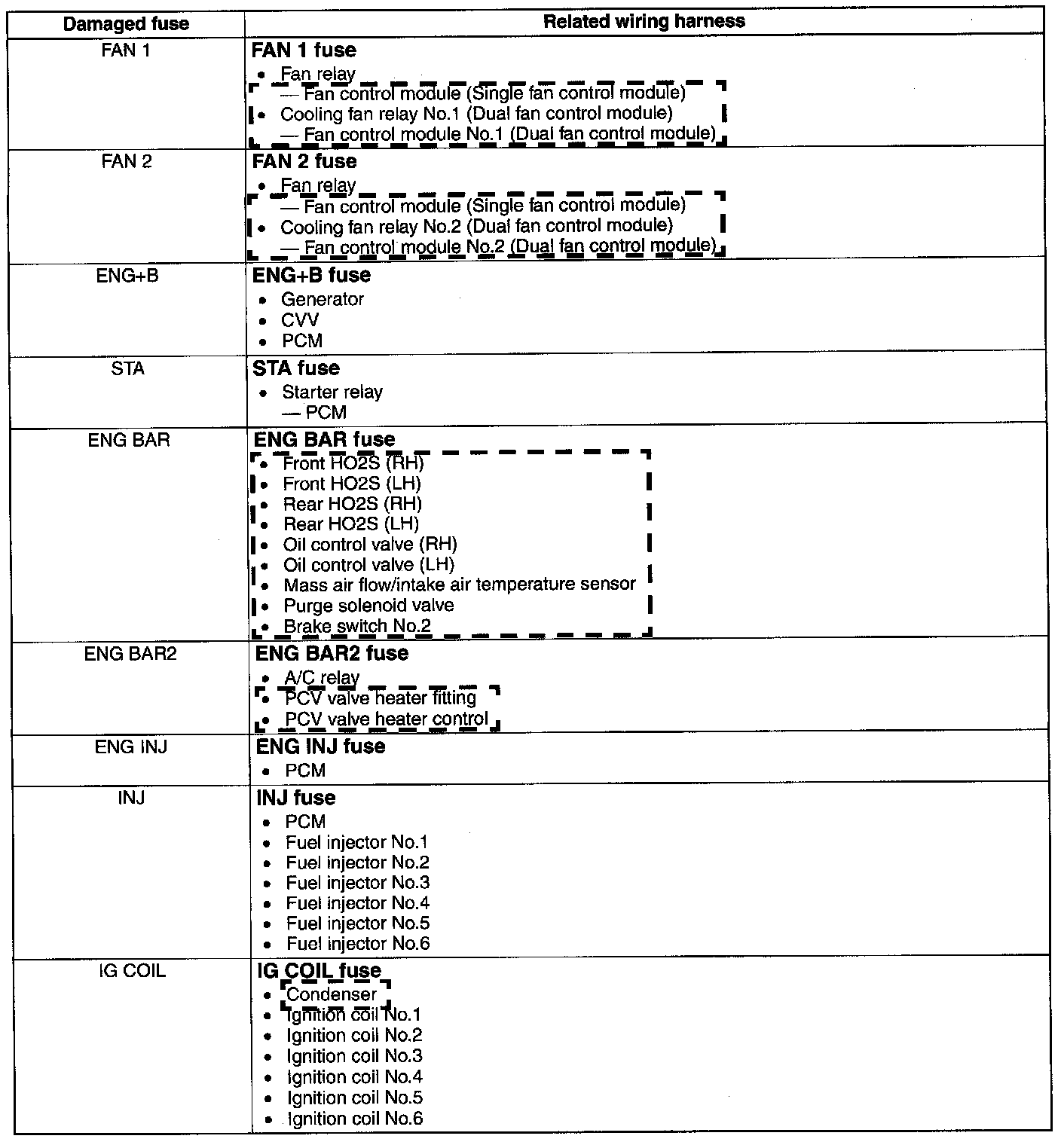

No.1 Melting Of Main Or Other Fuses Part 2:
No.1 Melting Of Main Or Other Fuses Part 3:
