Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Locations >> Connector Locations >> C-14 (Rear Harness-Door No.3 Harness)

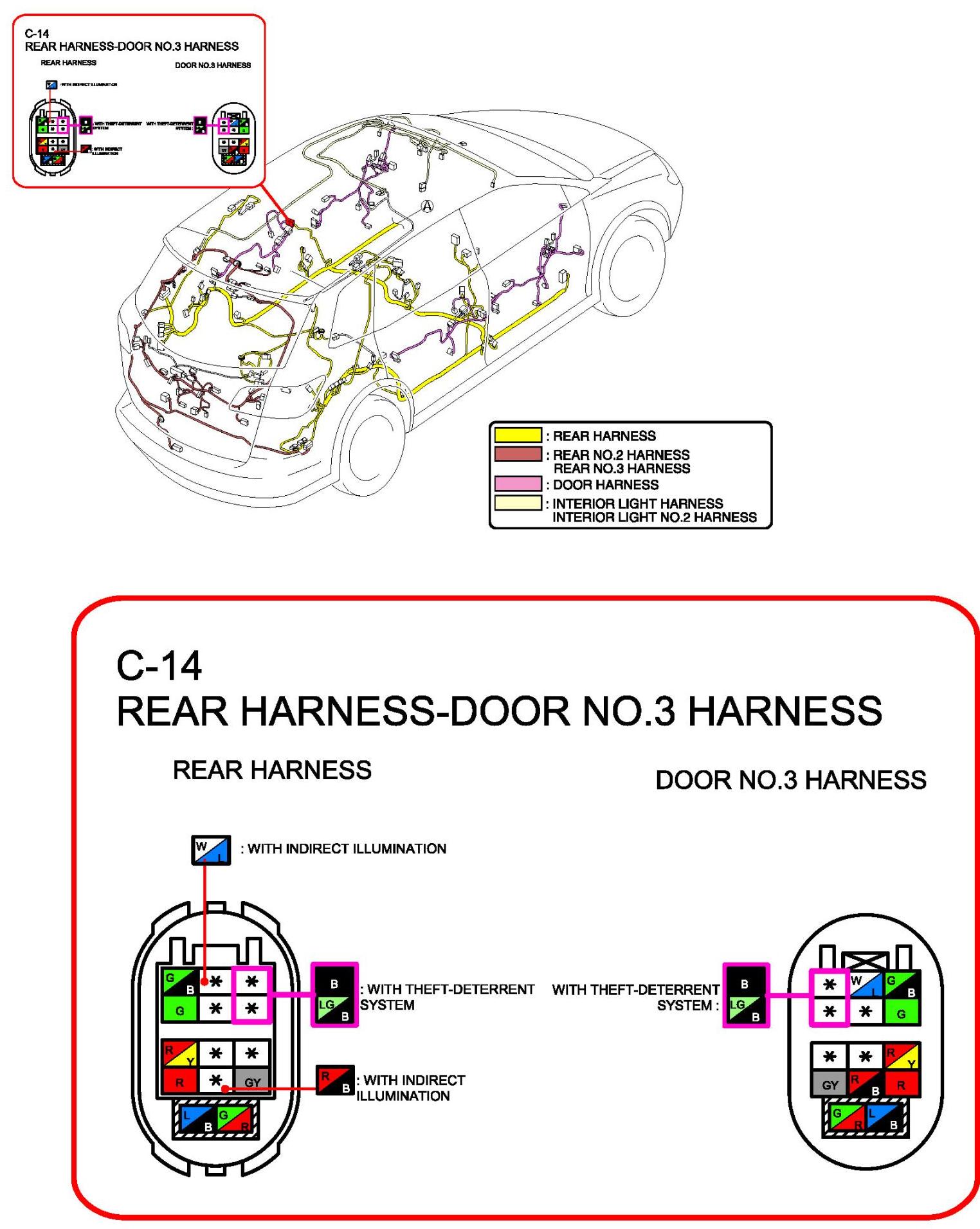

C-14 (Rear Harness-Door No.3 Harness)

C-14 (Rear Harness-Door No.3 Harness):
