C-12 (Instrument Panel Harness-Door No.1 Harness)
C-12 (Instrument Panel Harness-Door No.1 Harness)

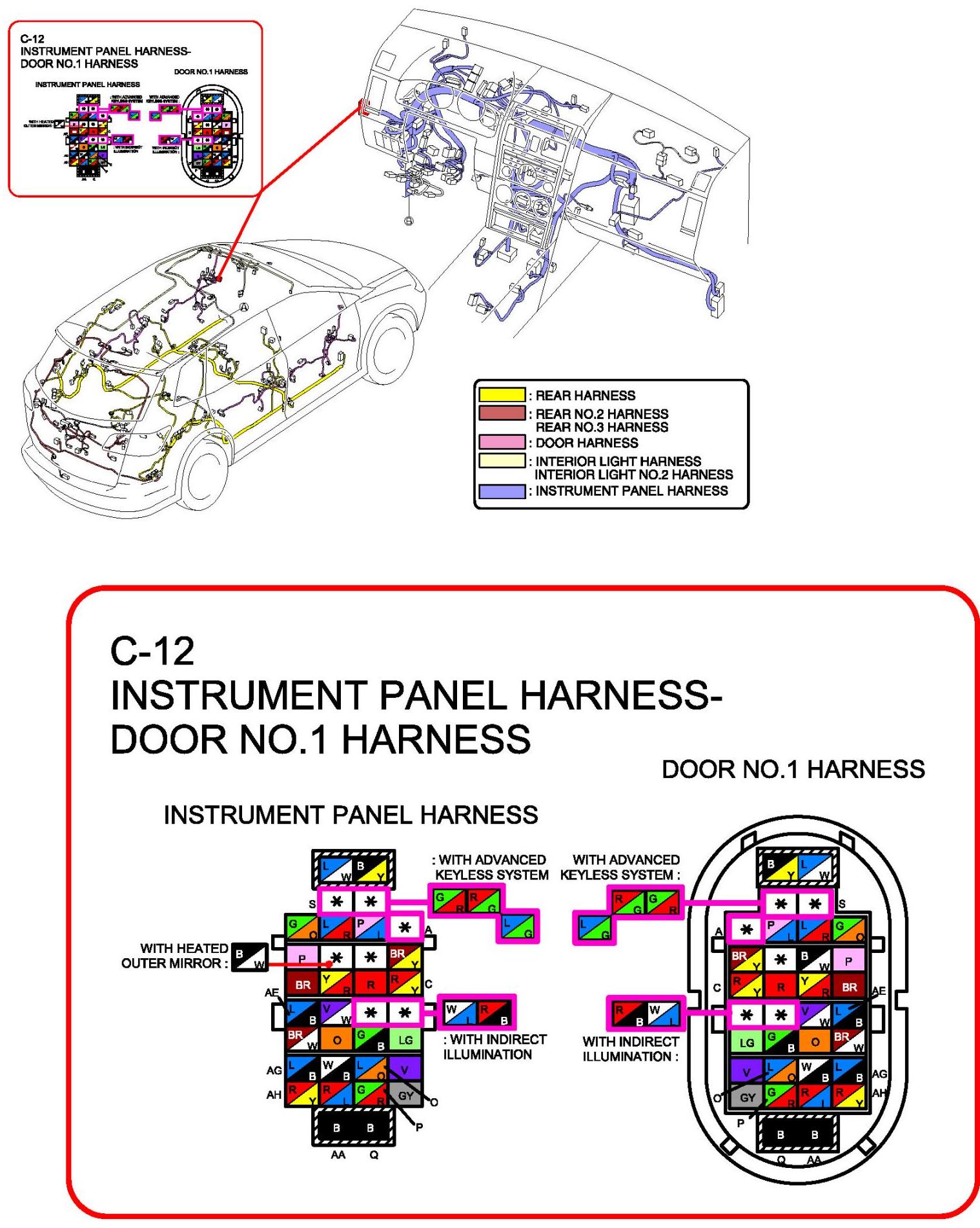

C-12 (Instrument Panel Harness-Door No.1 Harness):

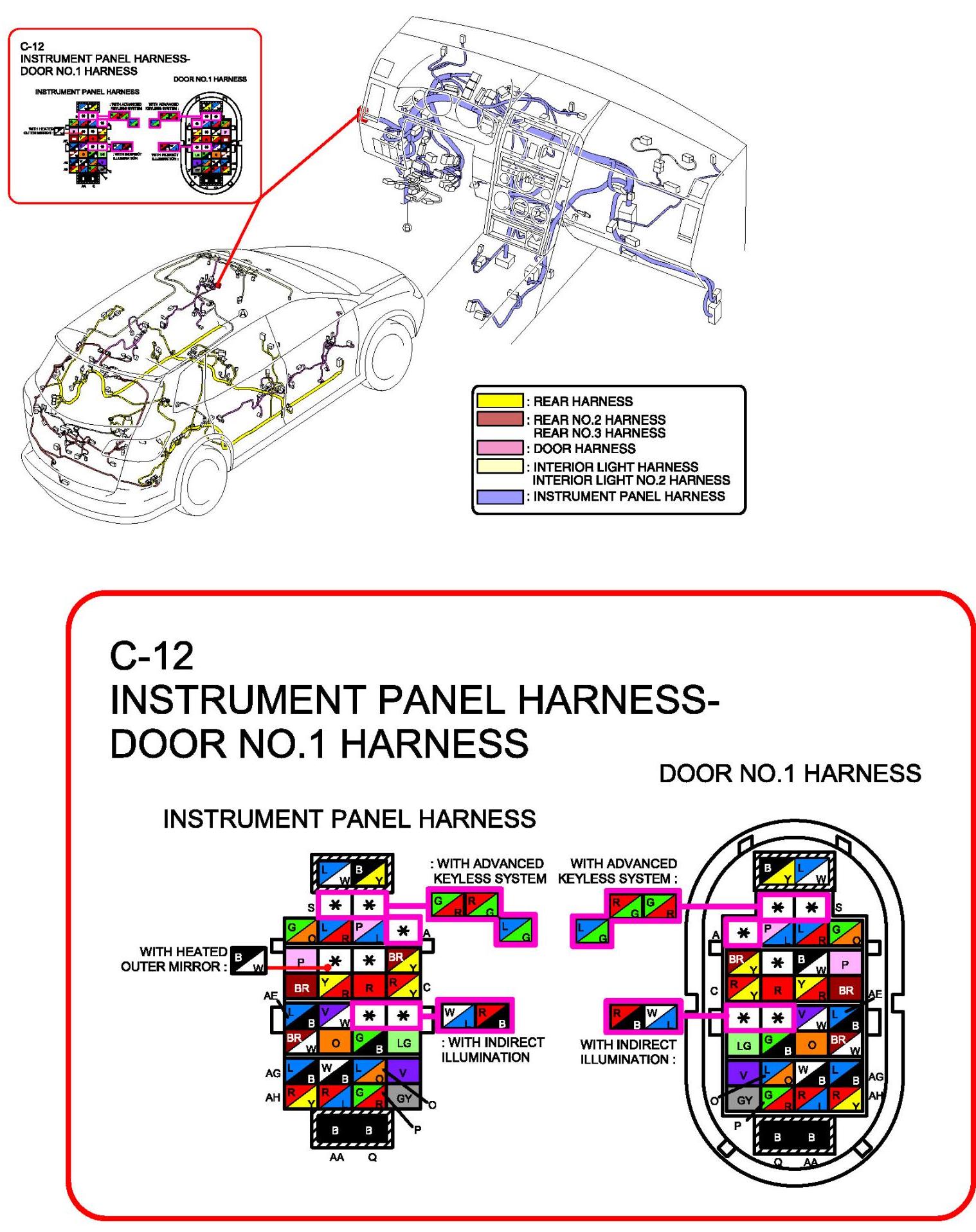

C-12 (Instrument Panel Harness-Door No.1 Harness):
