Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Turn Signal Switch >> Locations

Turn Signal Switch: Locations

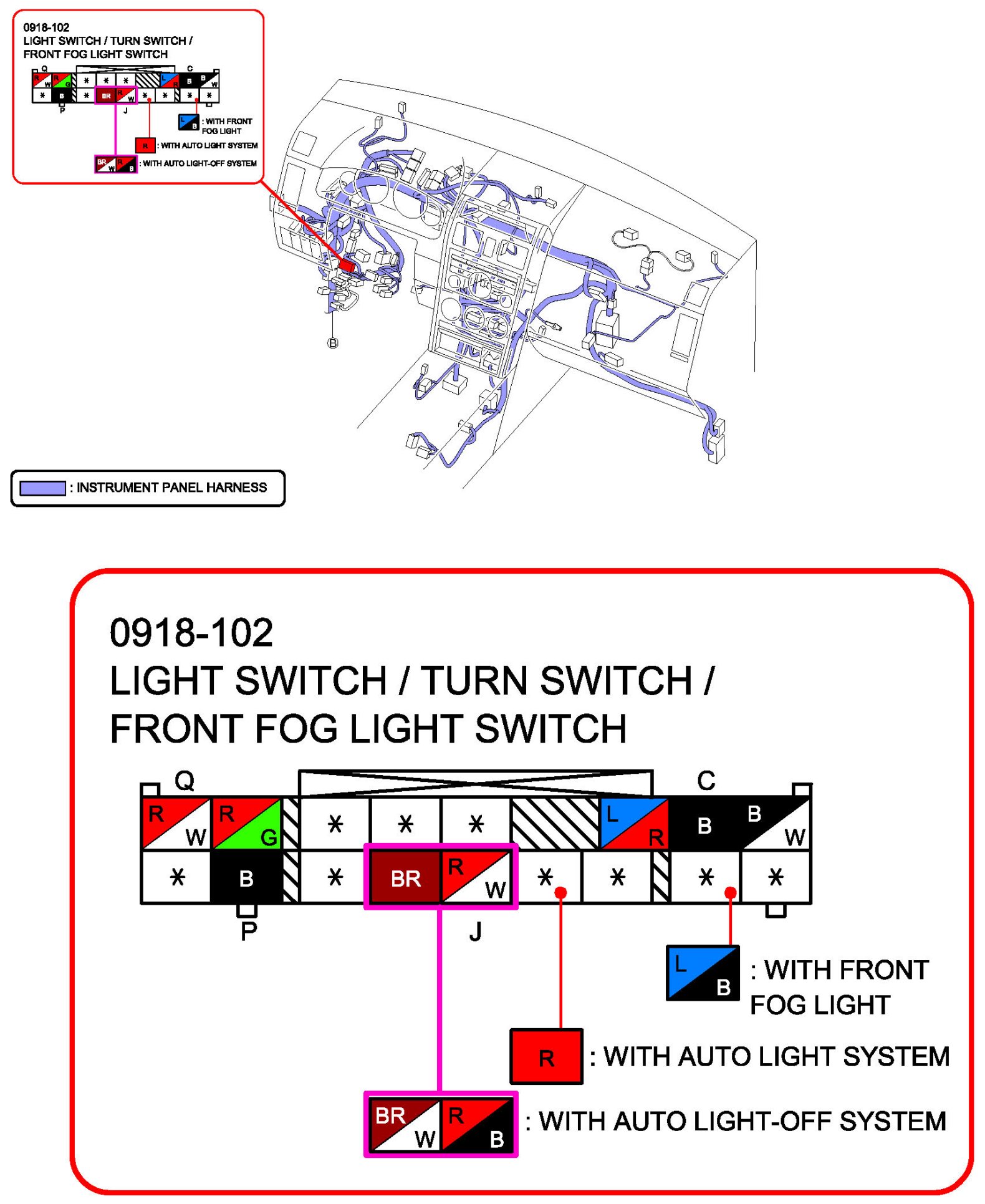

Light Switch / Turn Switch / Front Fog Light Switch:
