Connector Locations

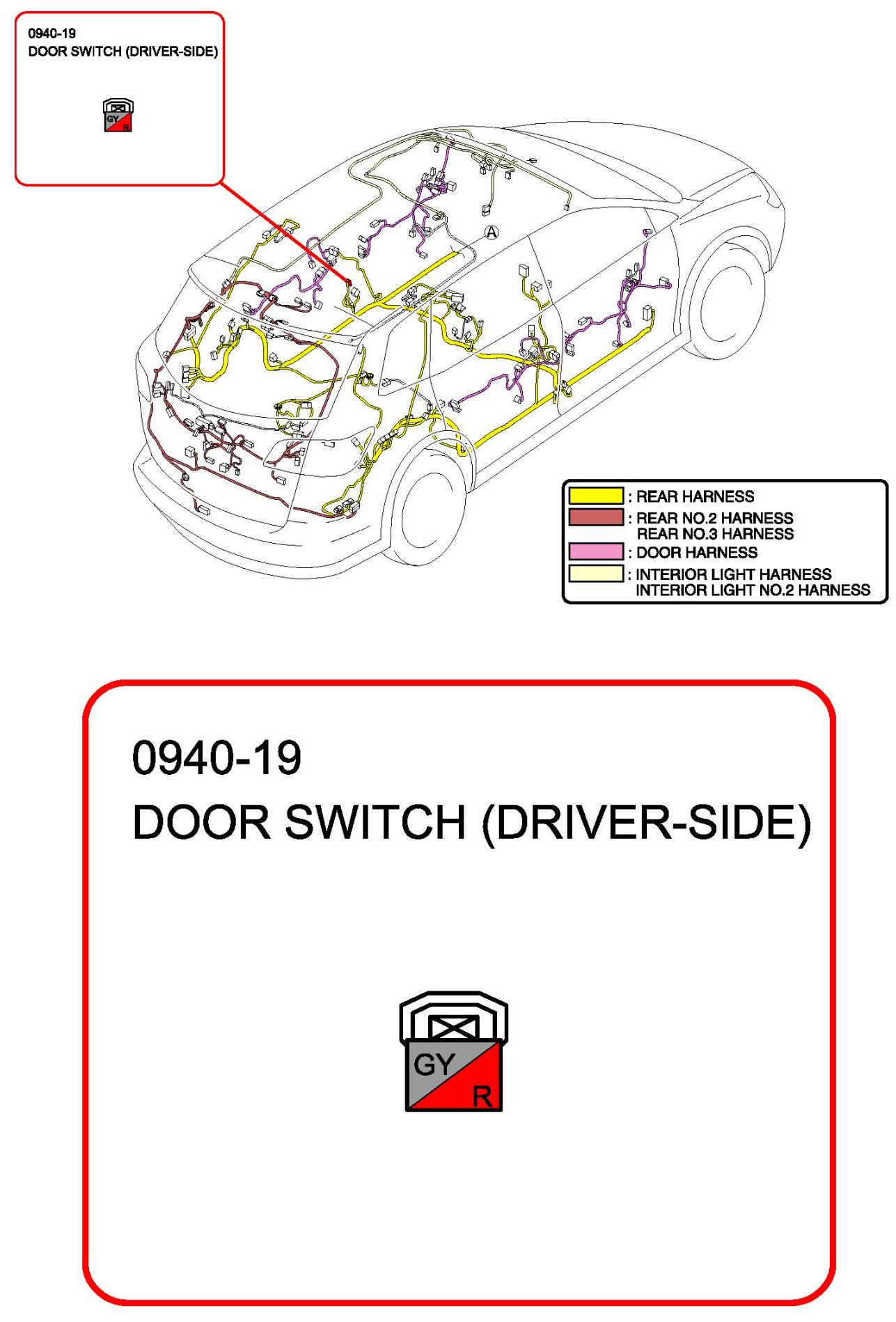

Door Switch (Driver-Side):

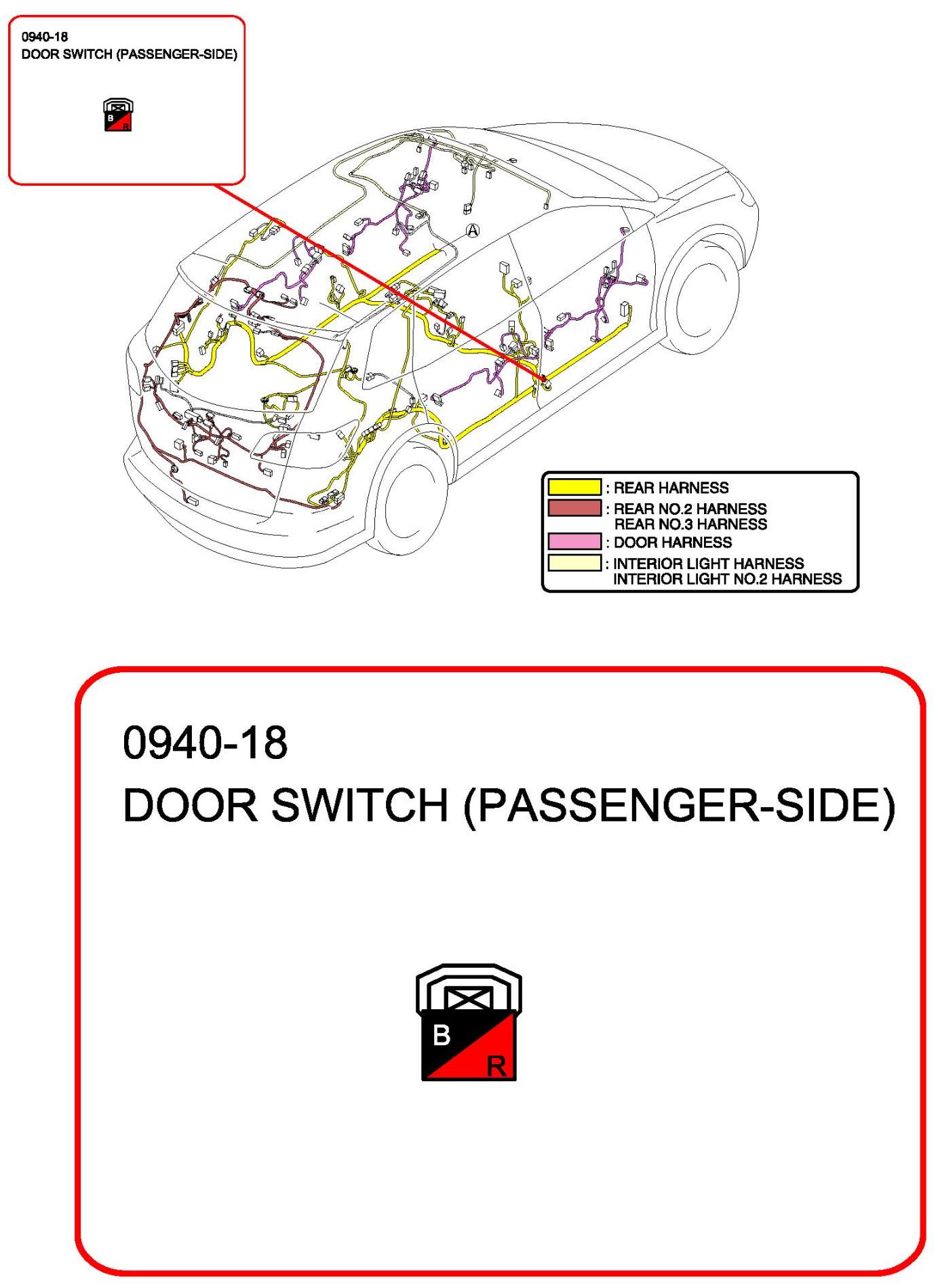

Door Switch (Passenger-Side):

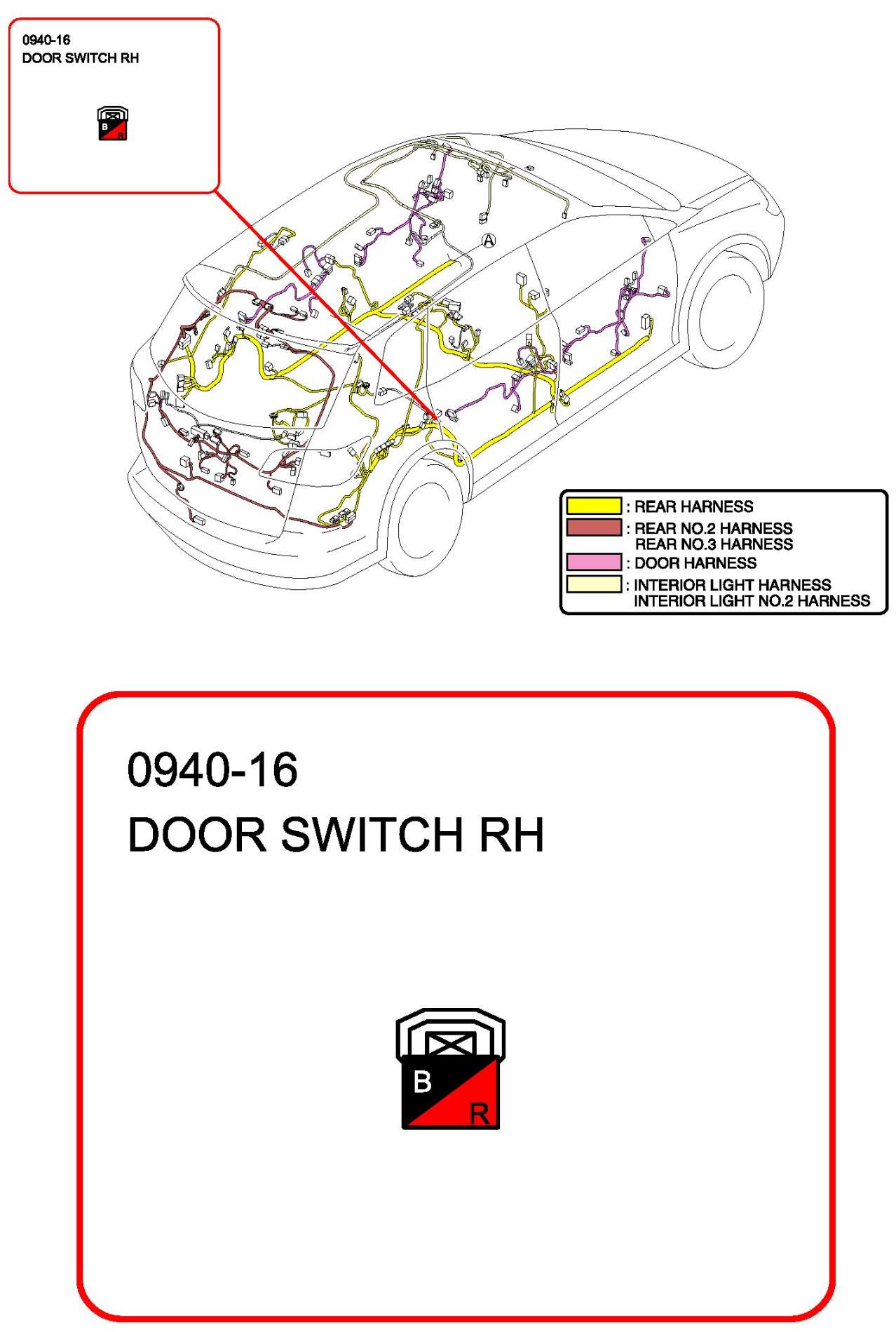

Door Switch RH:

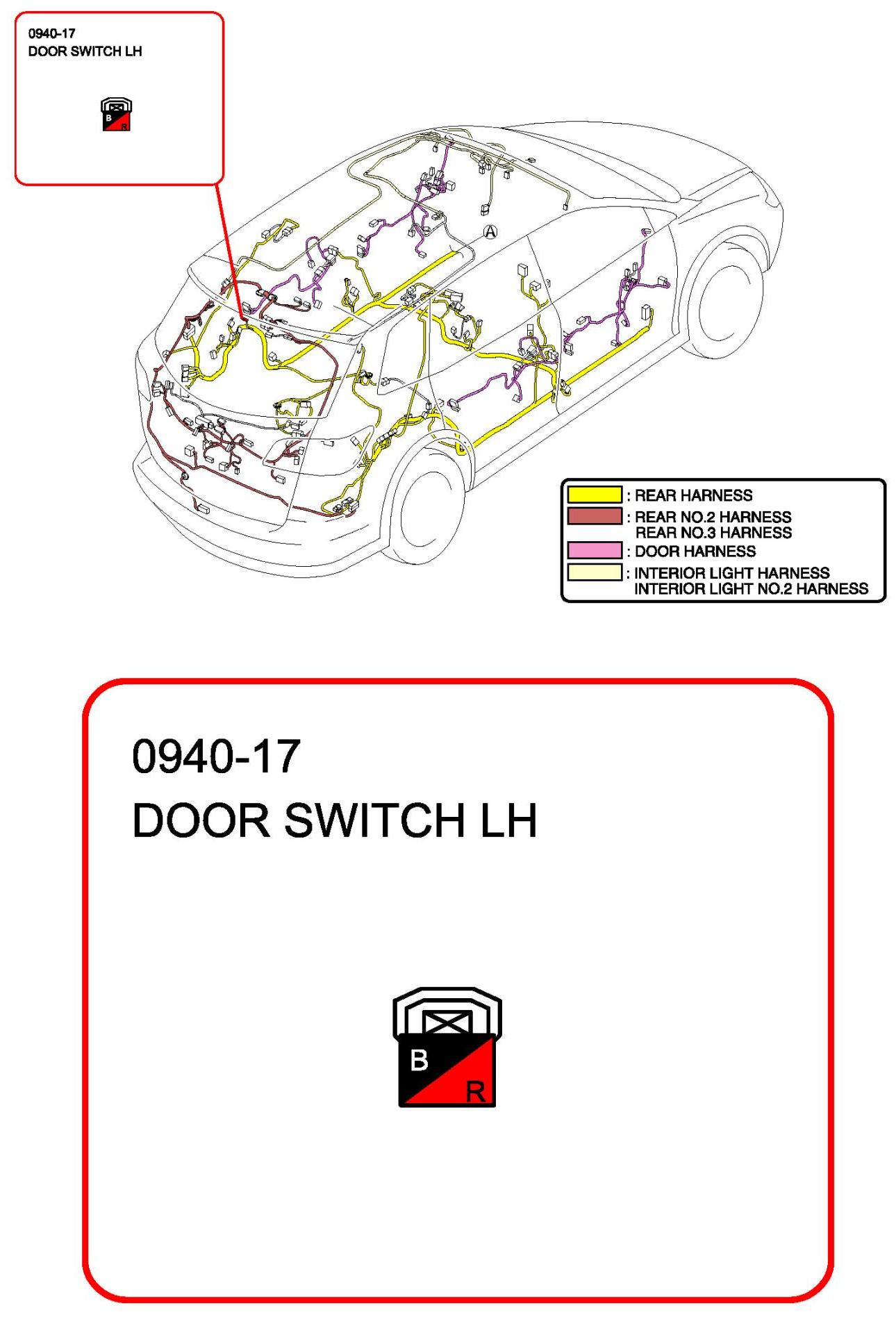

Door Switch LH:
