Instrument Panel Illumination

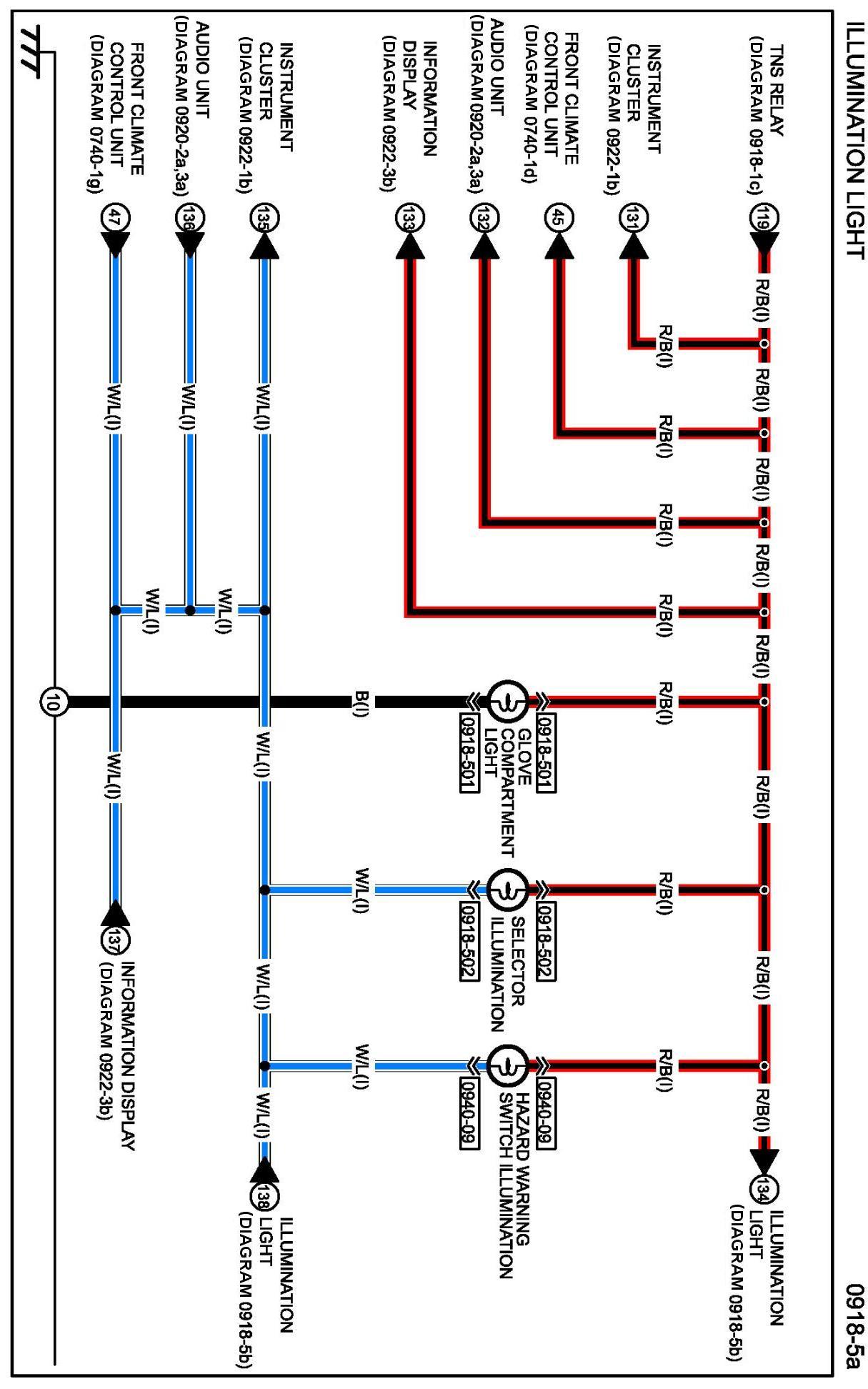

Diagram 0918-5a:

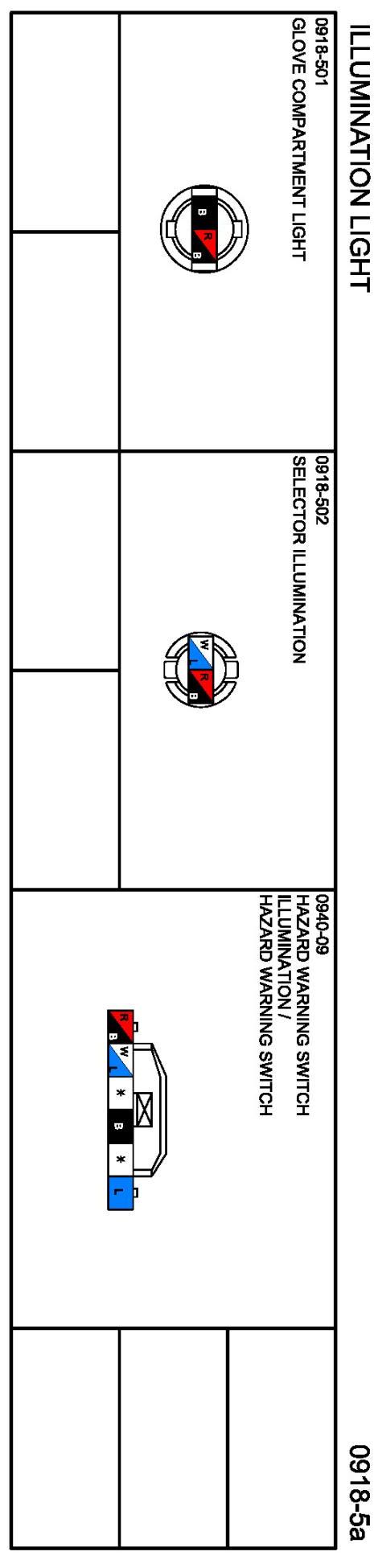

Connectors 0918-5a:

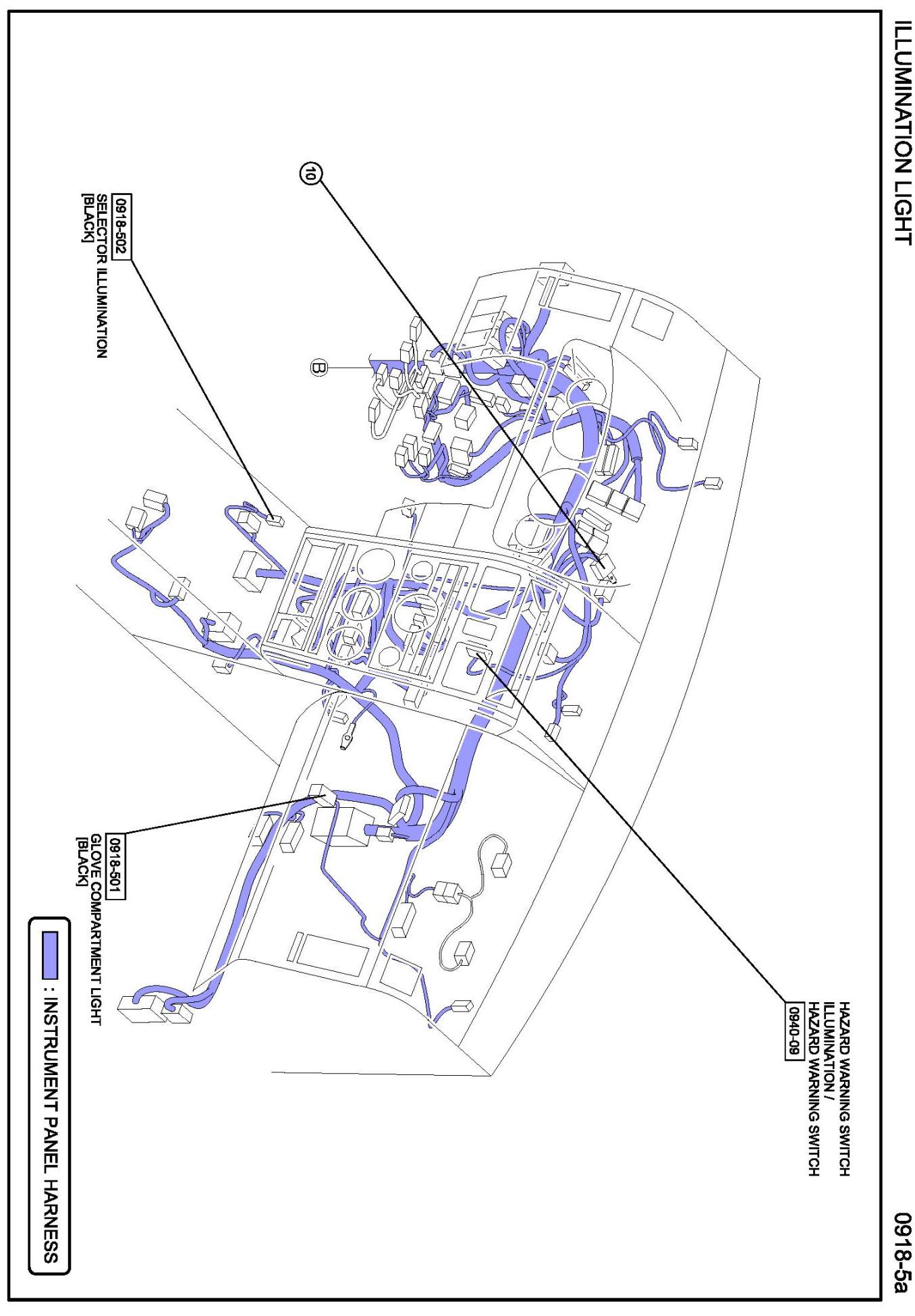

Routing View 0918-5a:

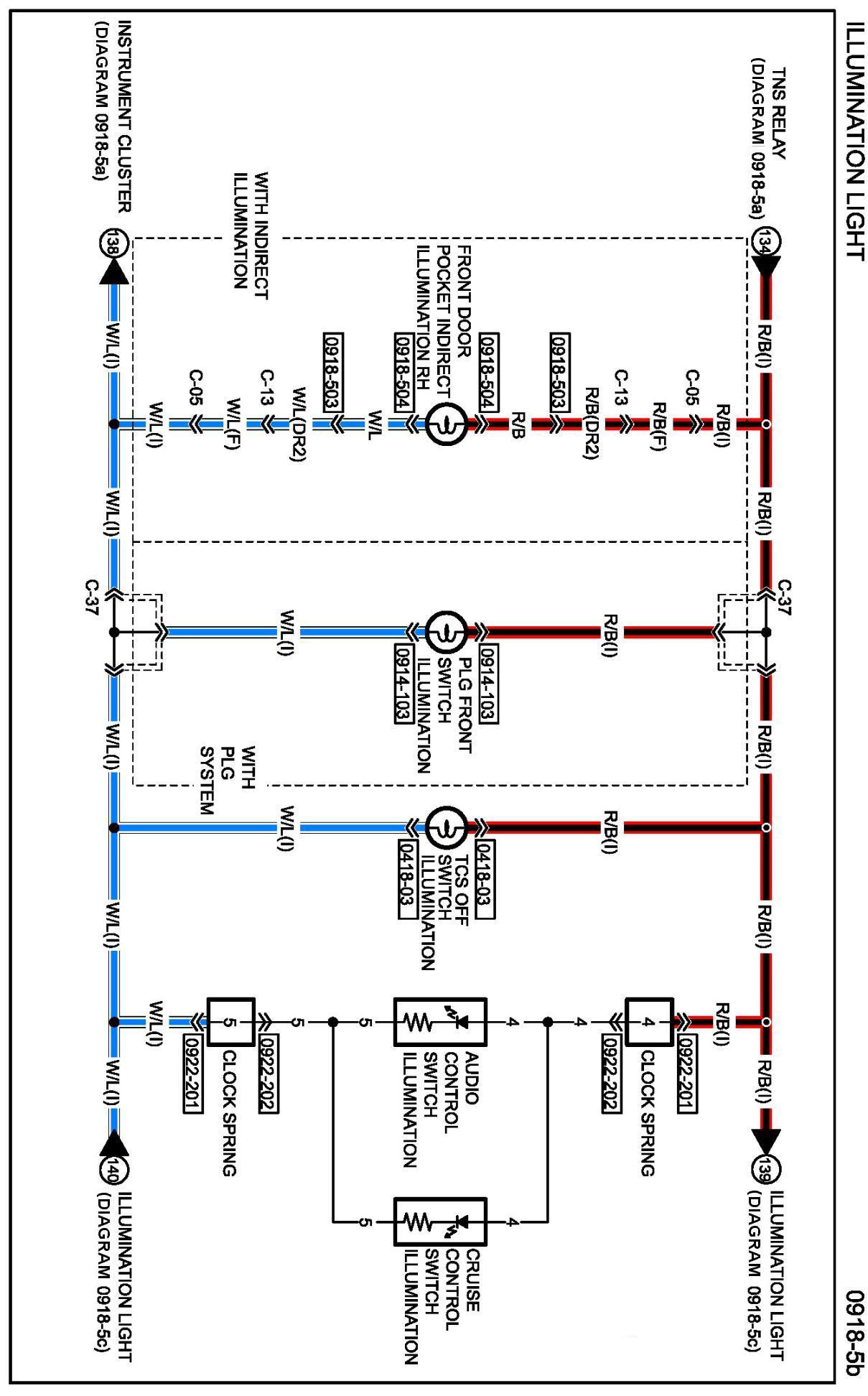

Diagram 0918-5b:

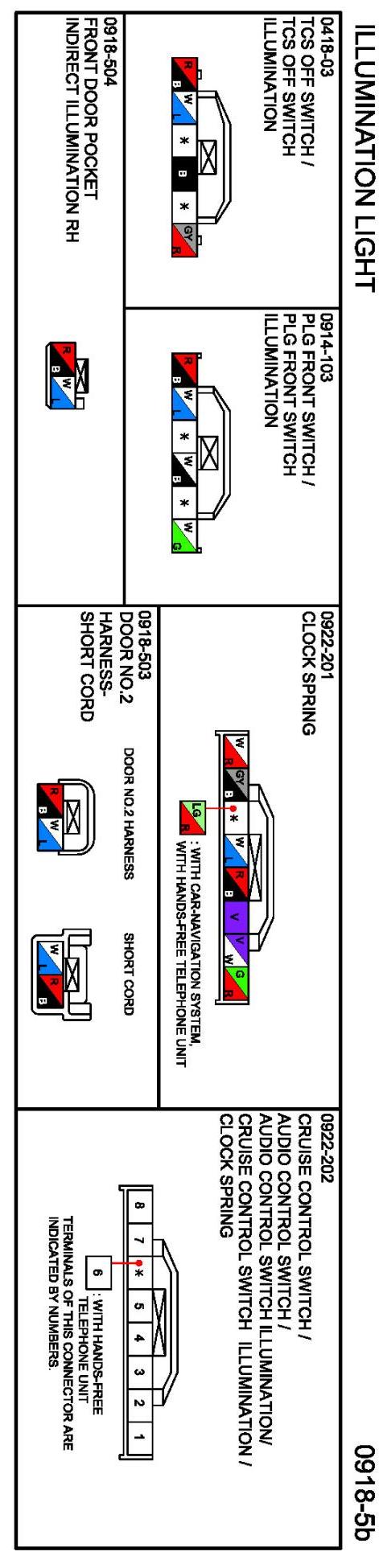

Connectors 0918-5b:

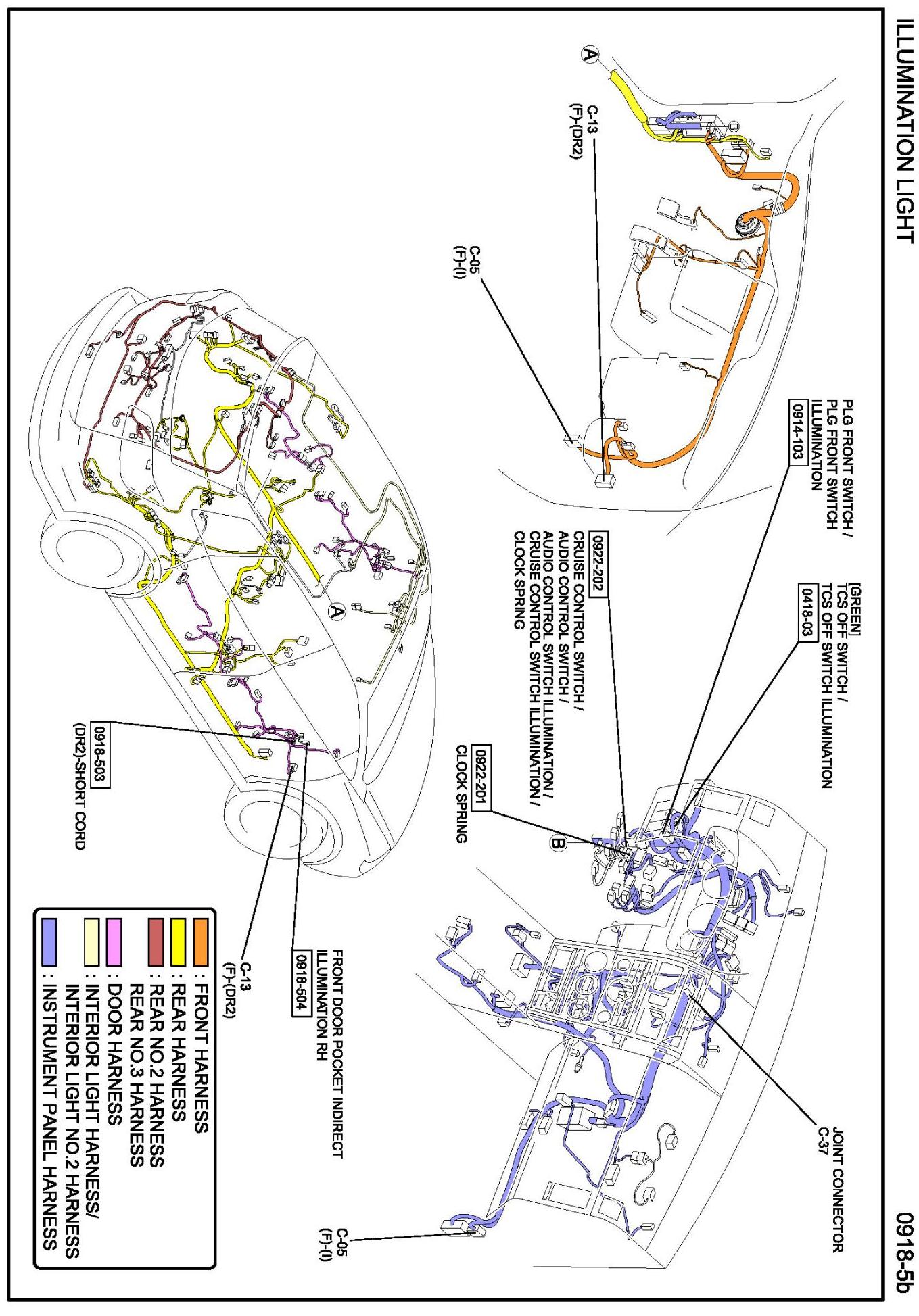

Routing View 0918-5b:

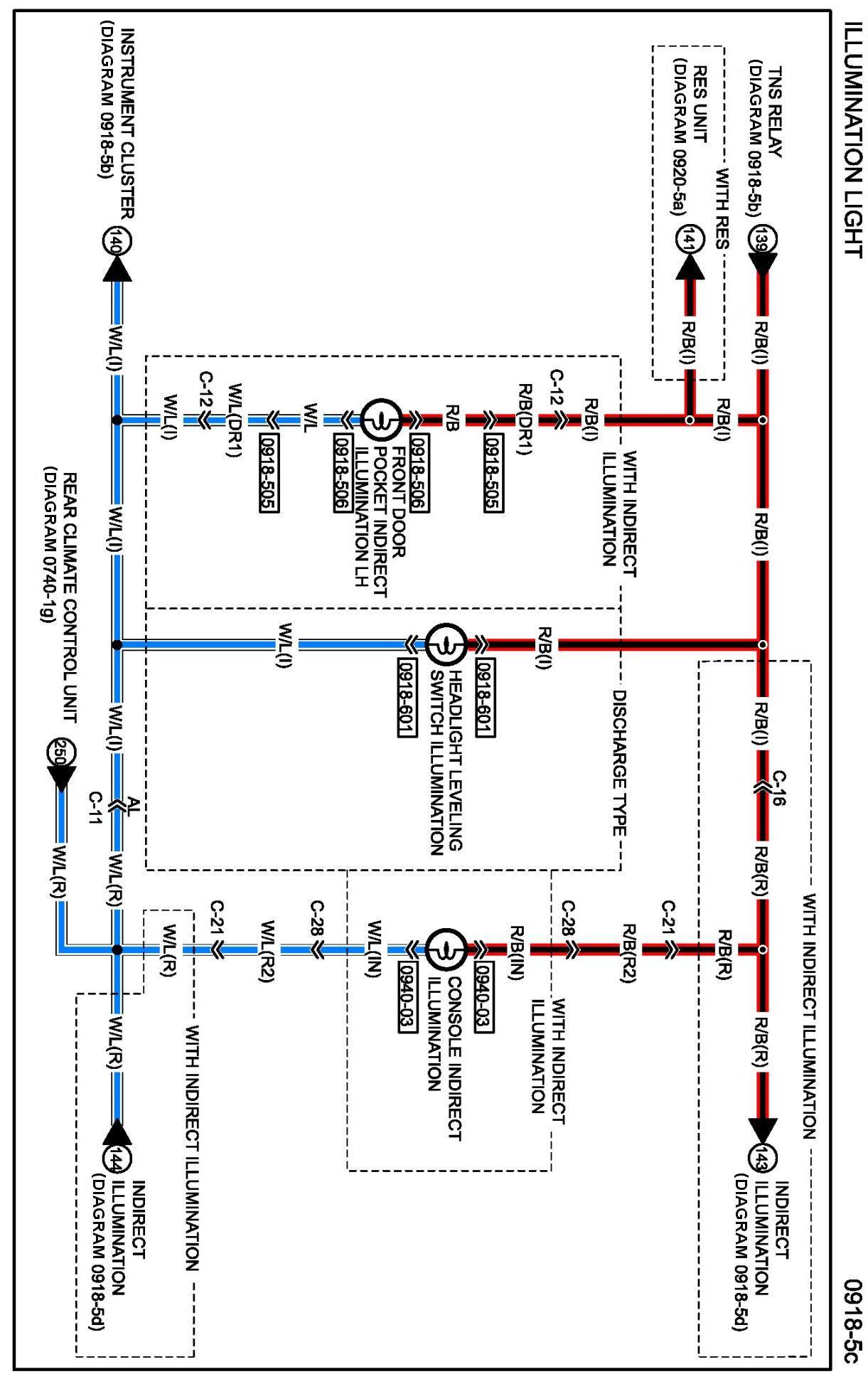

Diagram 0918-5c:

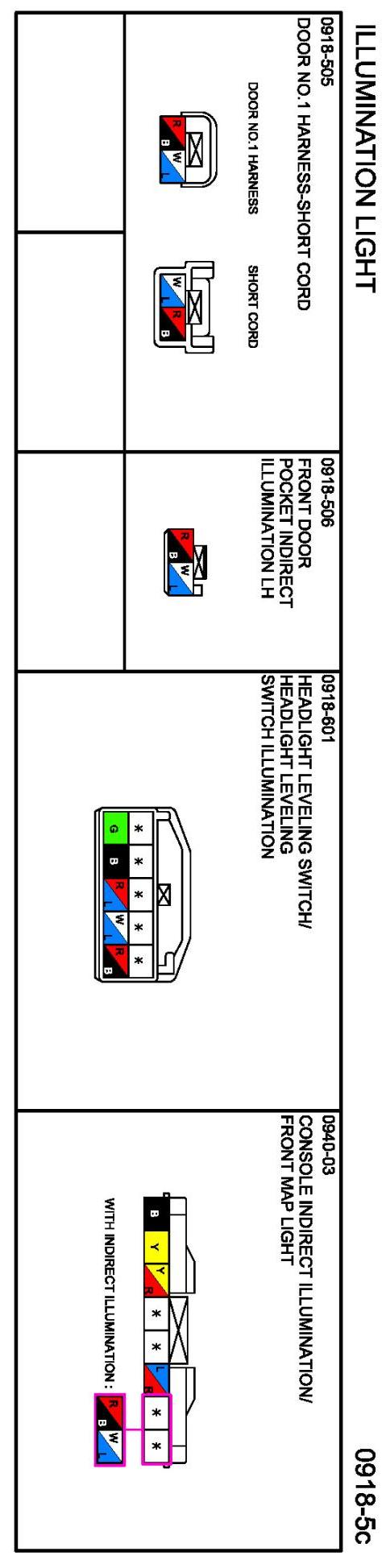

Connectors 0918-5c:

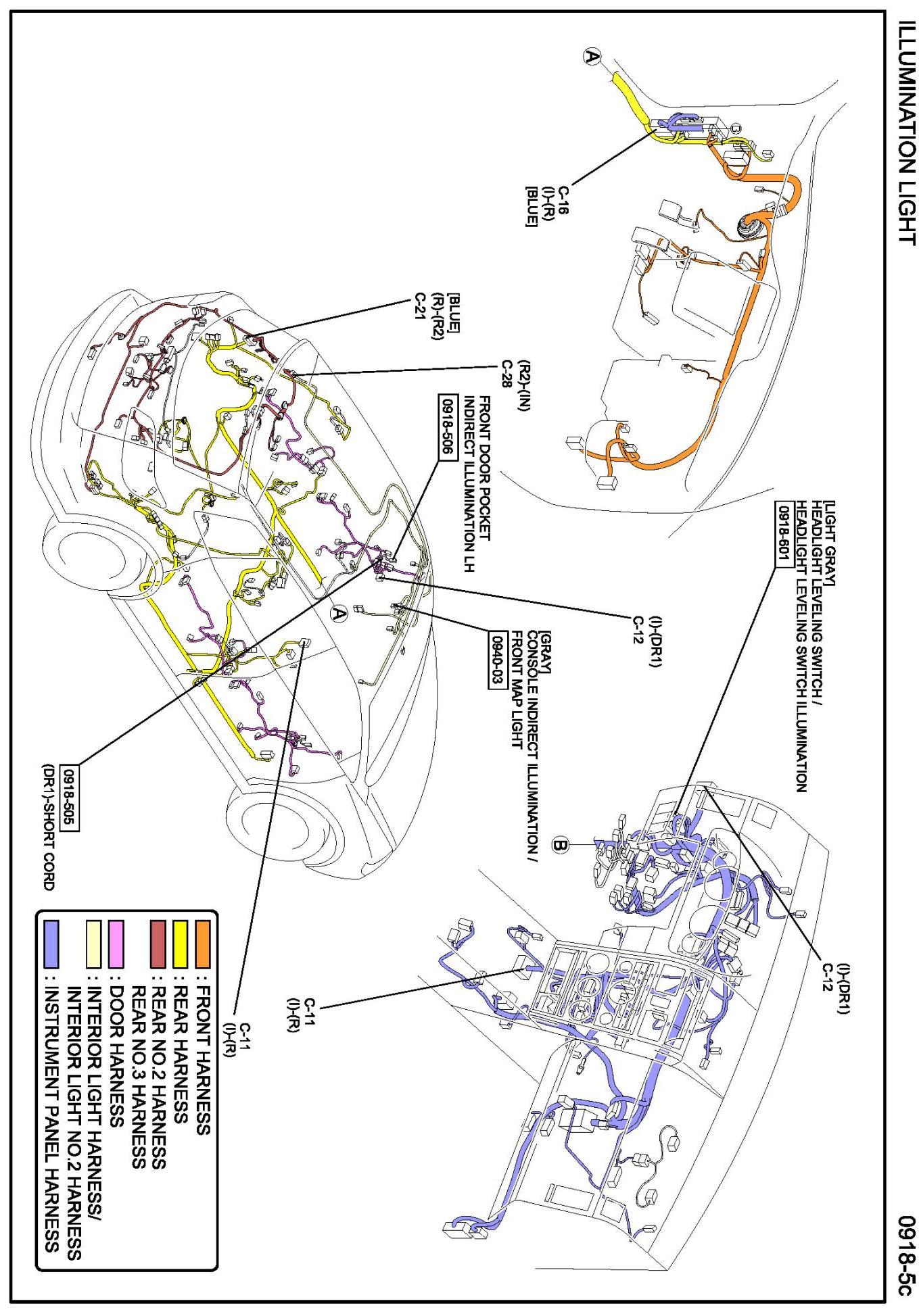

Routing View 0918-5c:

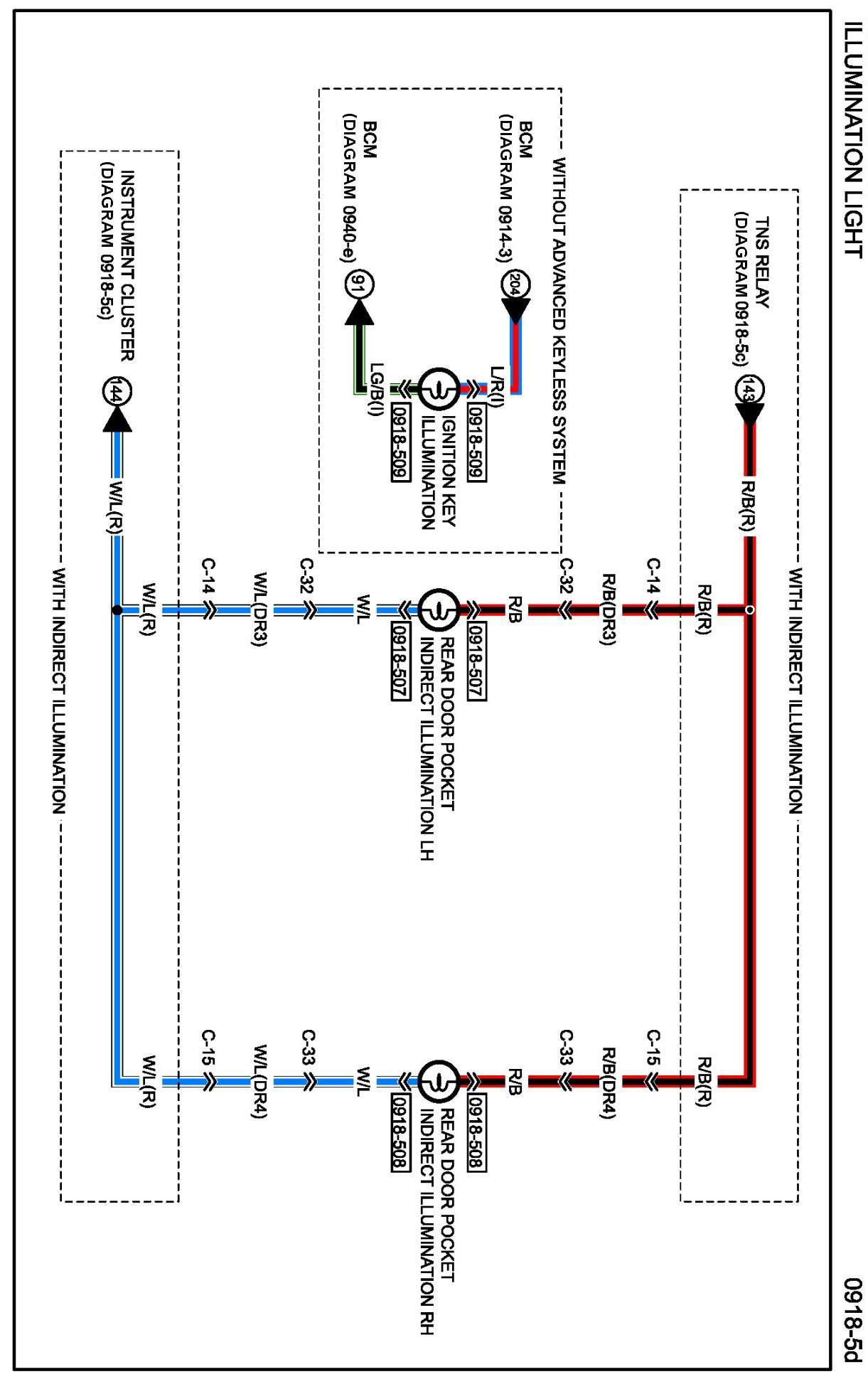

Diagram 0918-5d:

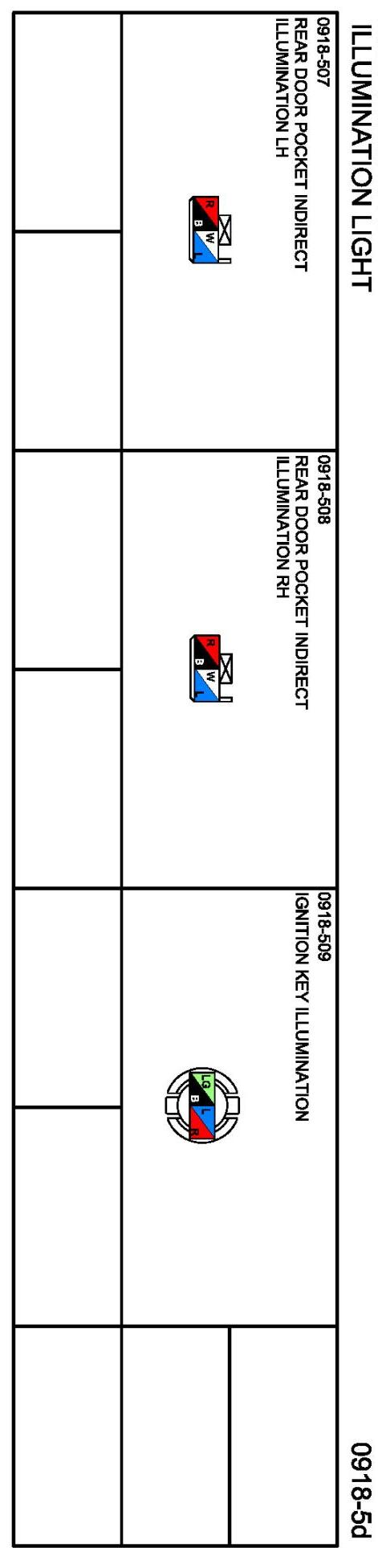

Connectors 0918-5d:

Routing View 0918-5d:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by diagram Name. Diagrams By Diagram Name
