Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0919-2a (Windshield Wiper and Washer (With Auto Wiper System))

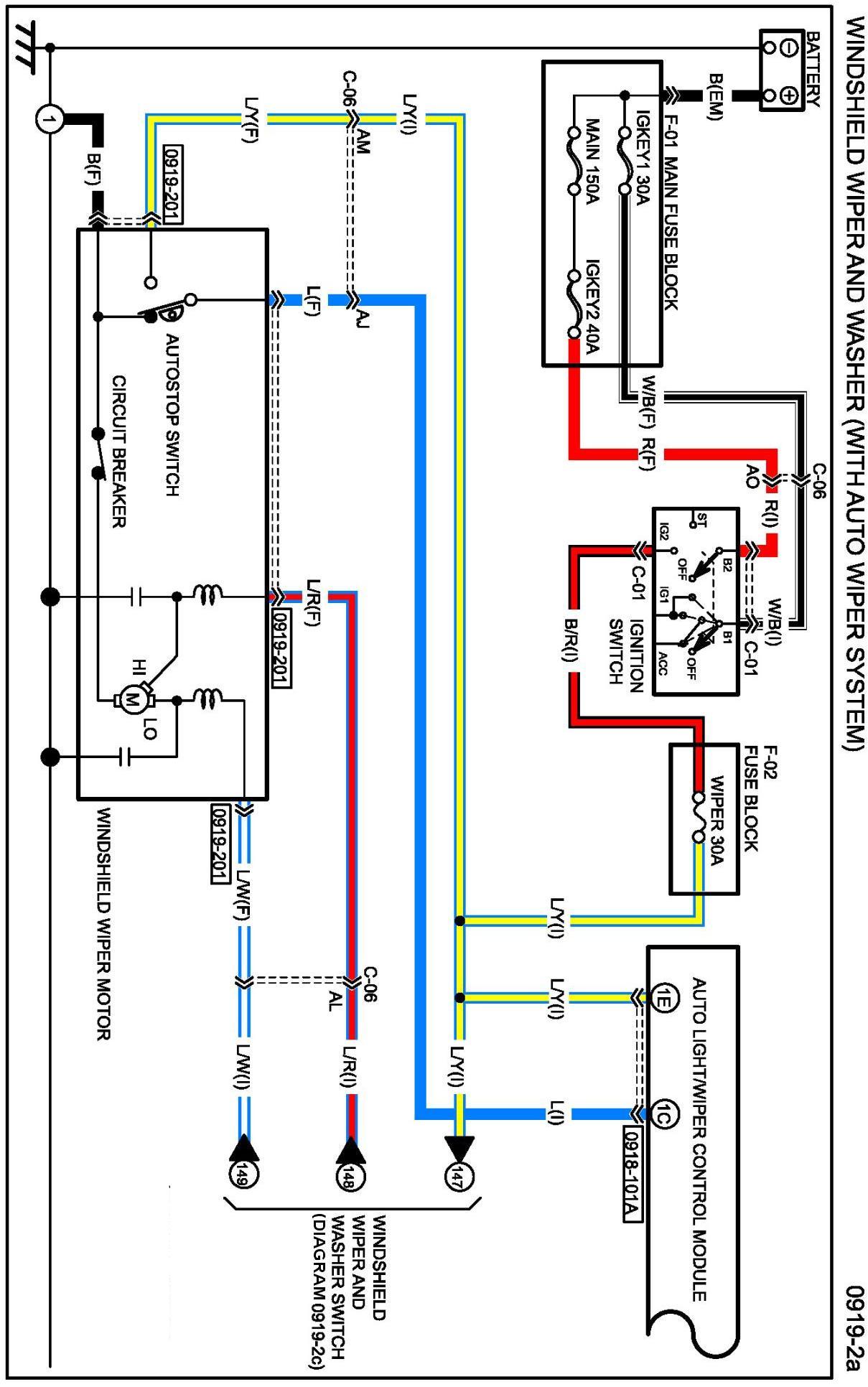

Diagram 0919-2a (Windshield Wiper and Washer (With Auto Wiper System))

Diagram 0919-2a:
