Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0918-3 (Front Fog Light)

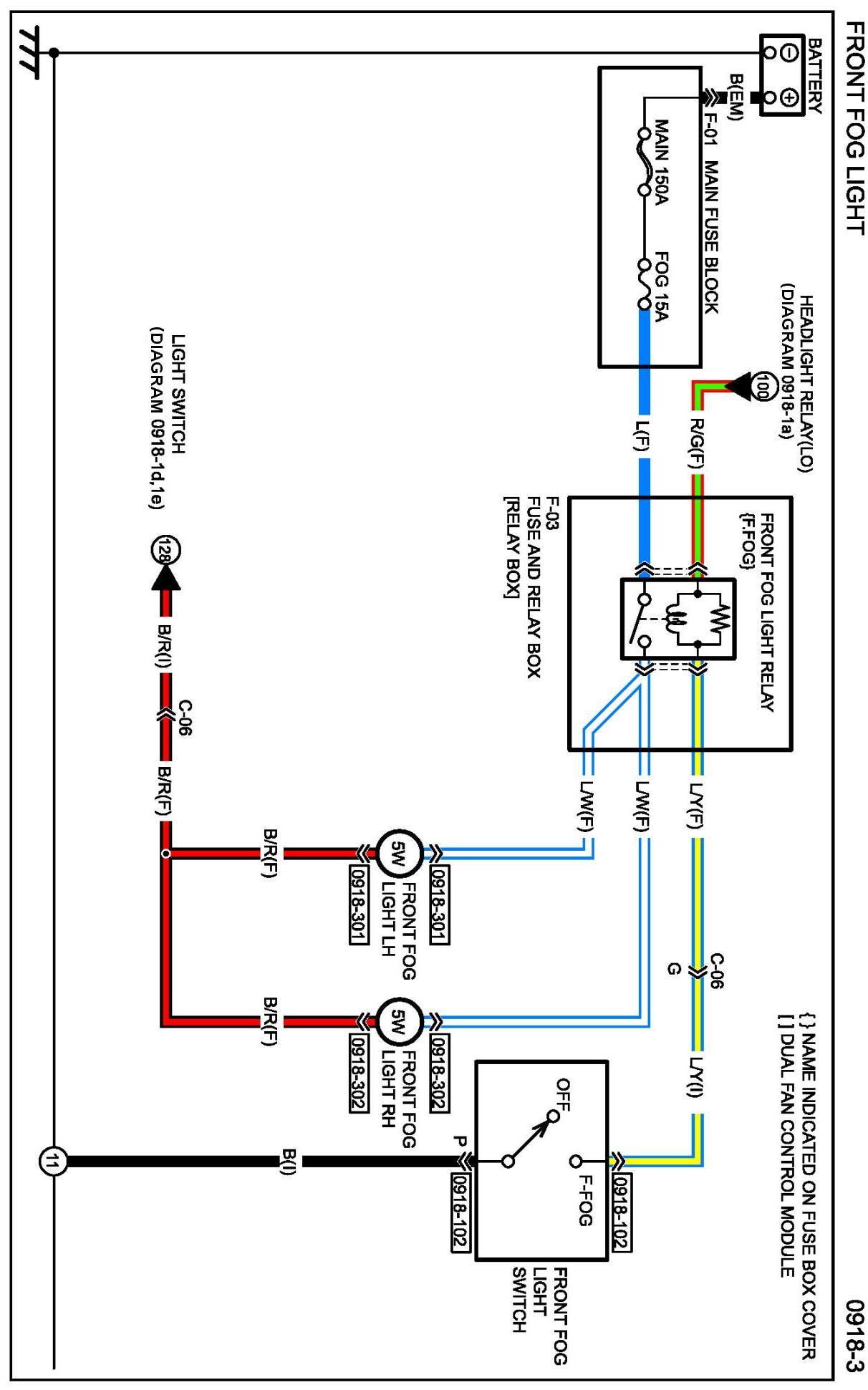

Diagram 0918-3 (Front Fog Light)

Diagram 0918-3:
