Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0913-3b (Power Seat)

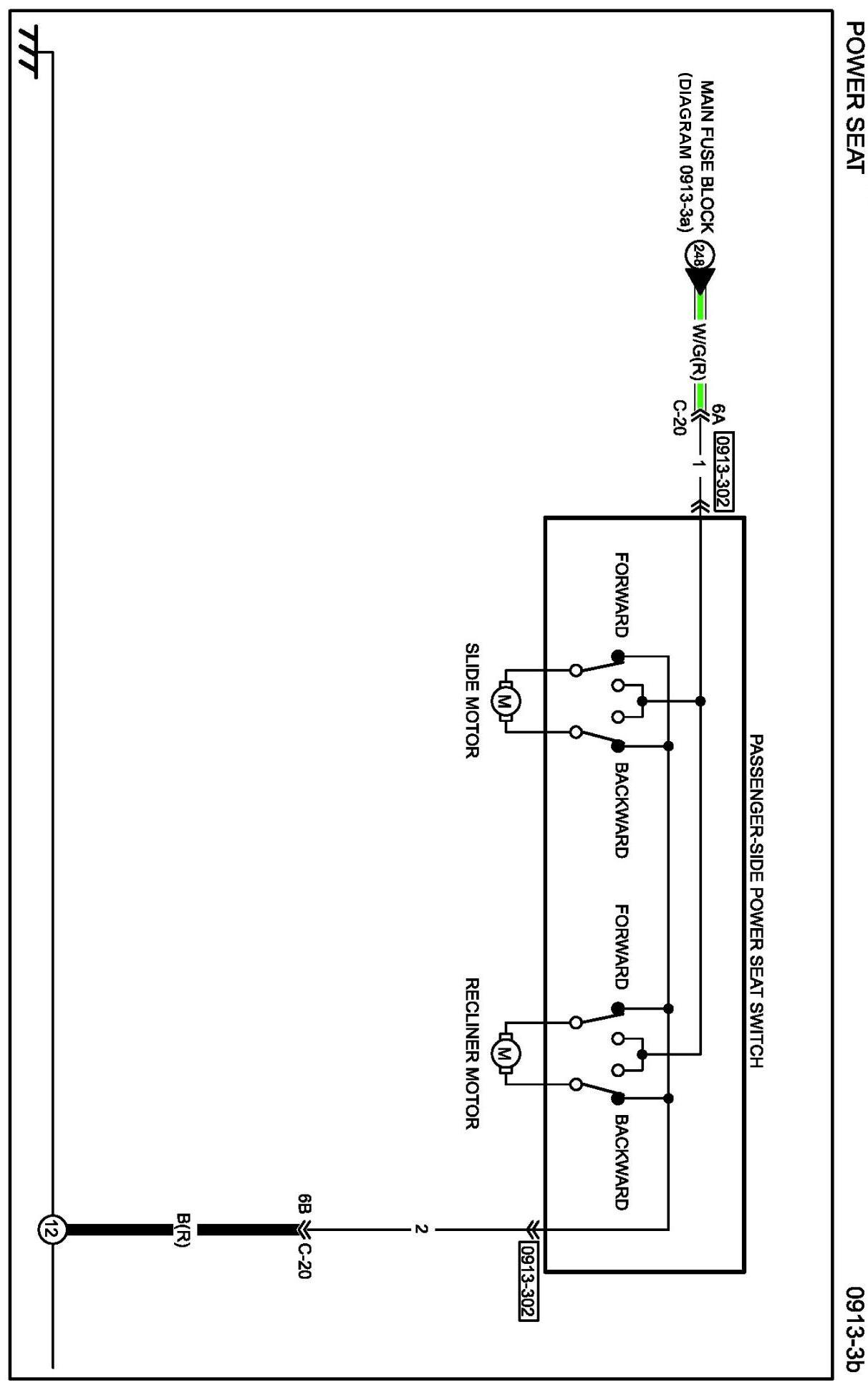

Diagram 0913-3b (Power Seat)

Diagram 0913-3b:
