Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0986

P0986

DTC P0986 [AW6A-EL, AW6AX-EL]





Diagnostic procedure

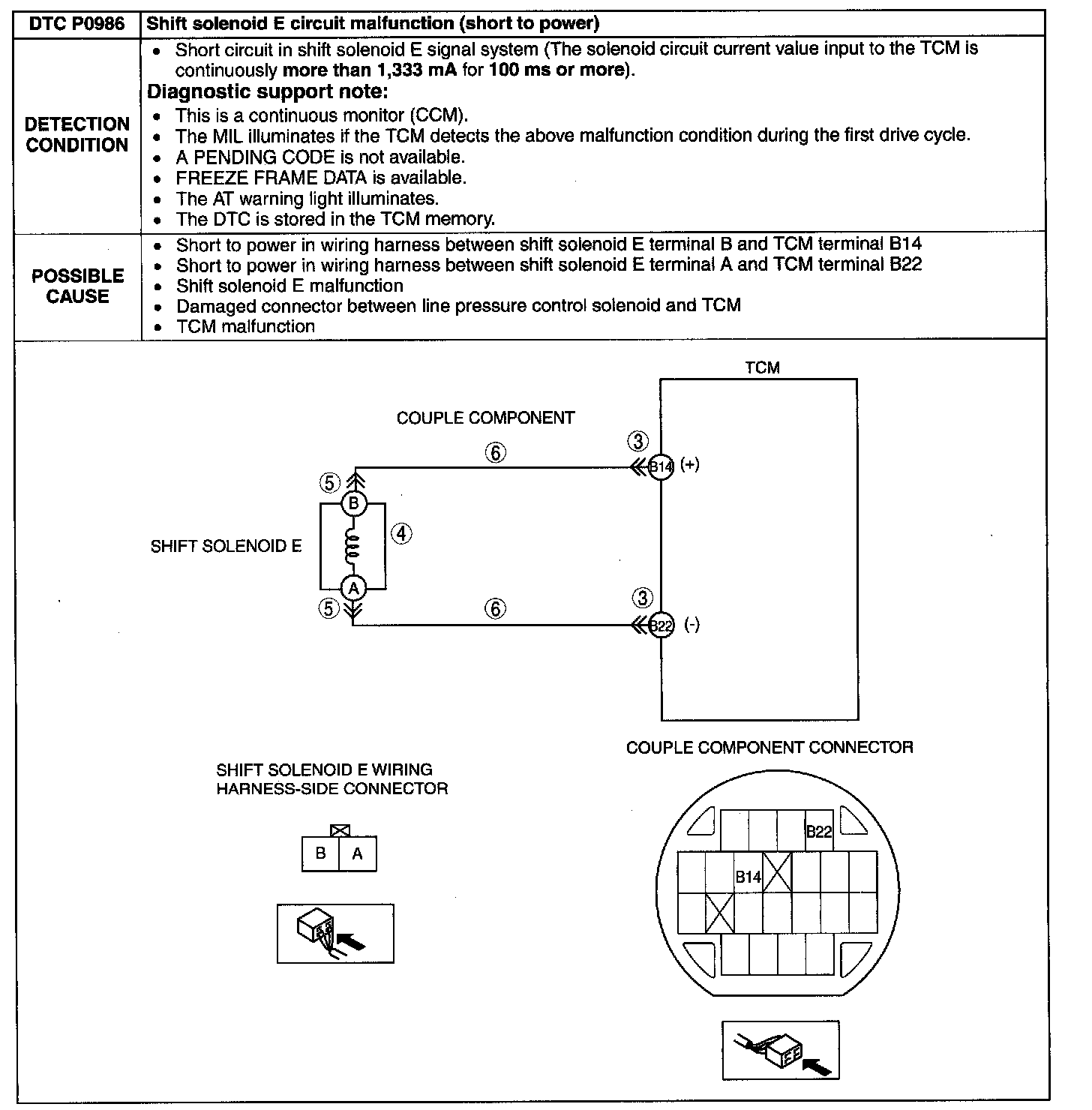

Step 1-Step 2:

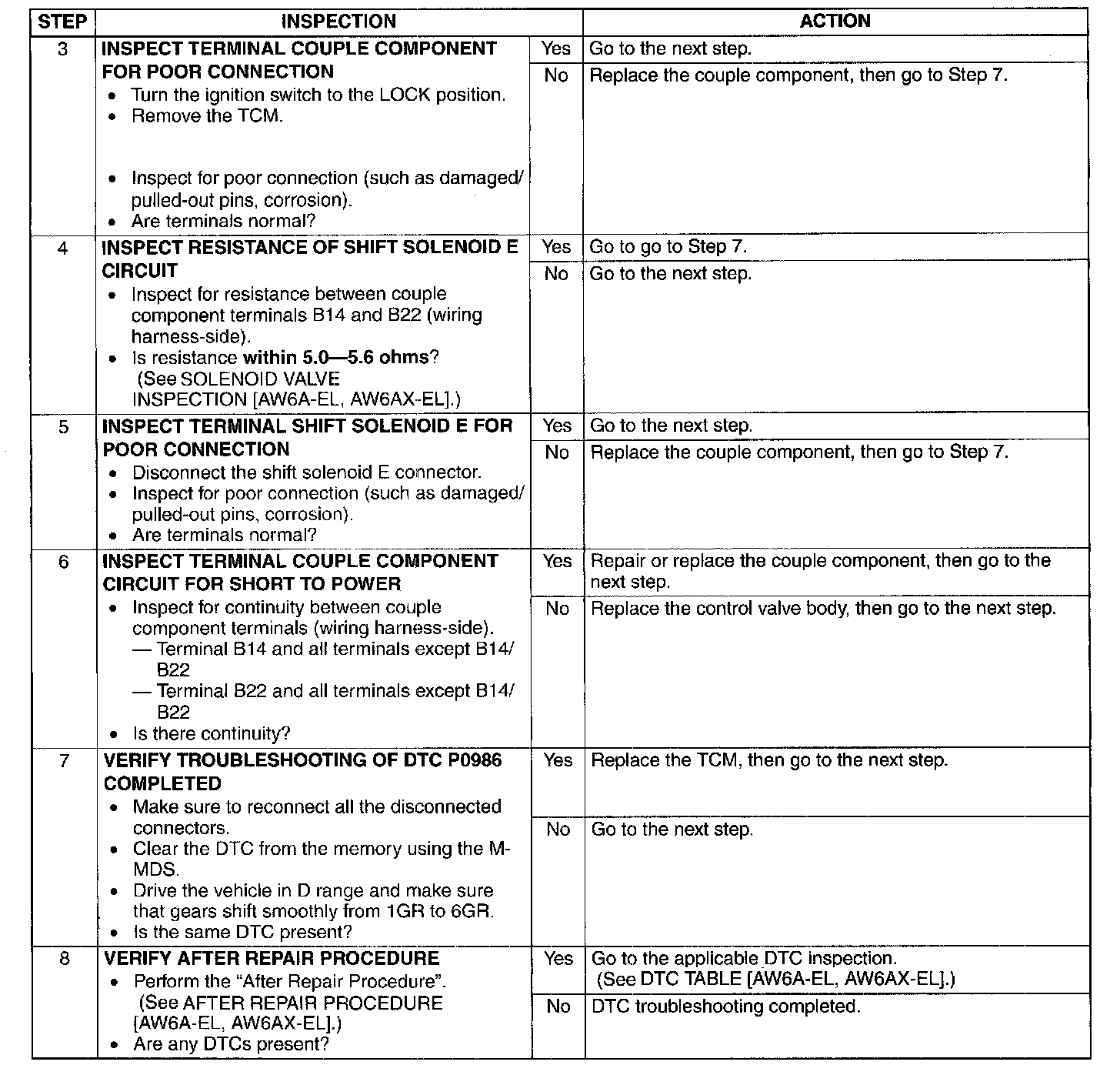

Step 3-Step 8:
