Home >> Mazda >> 2007 >> CX-9 V6-3.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0174

P0174

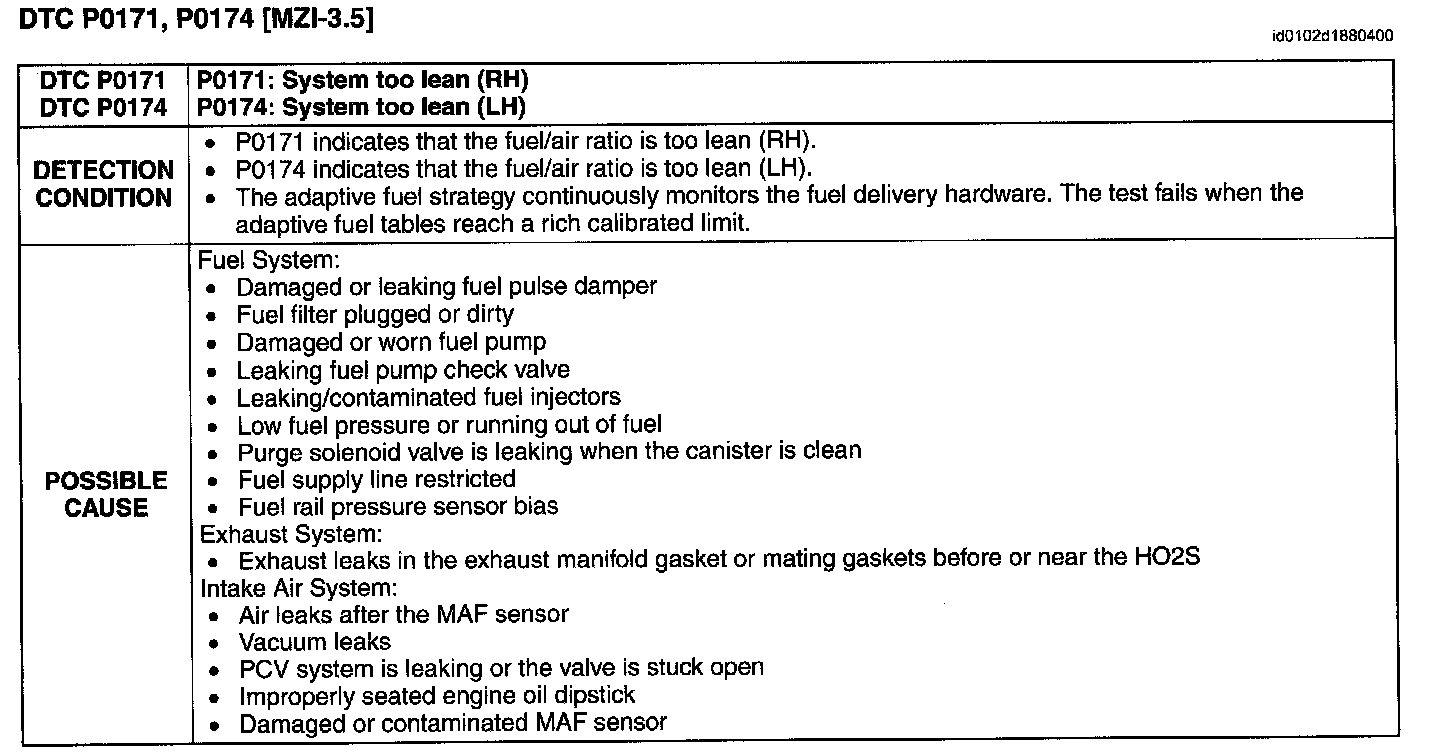

Detection Condition/Possible Cause:

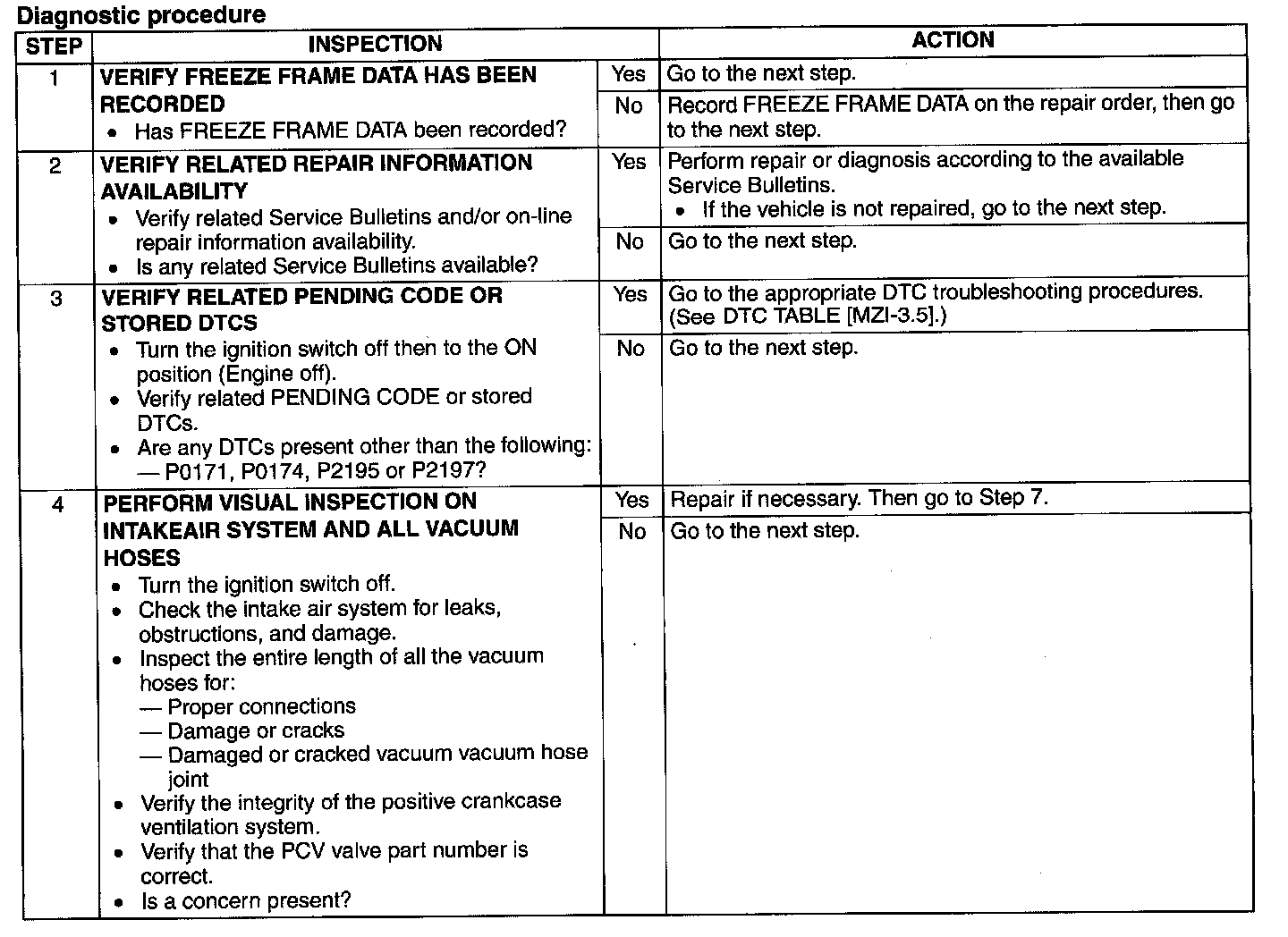

Step 1-Step 4:

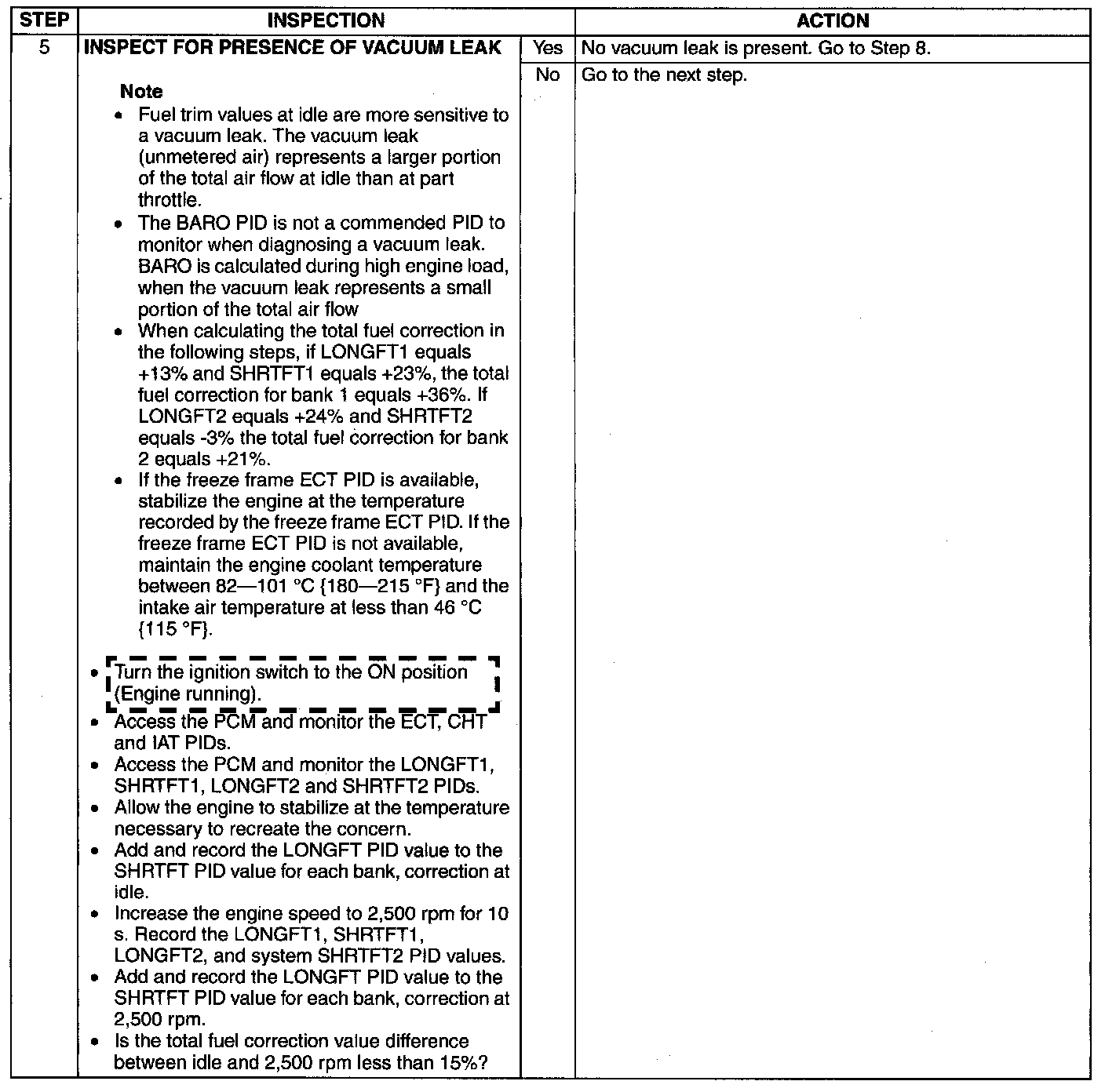

Step 5:

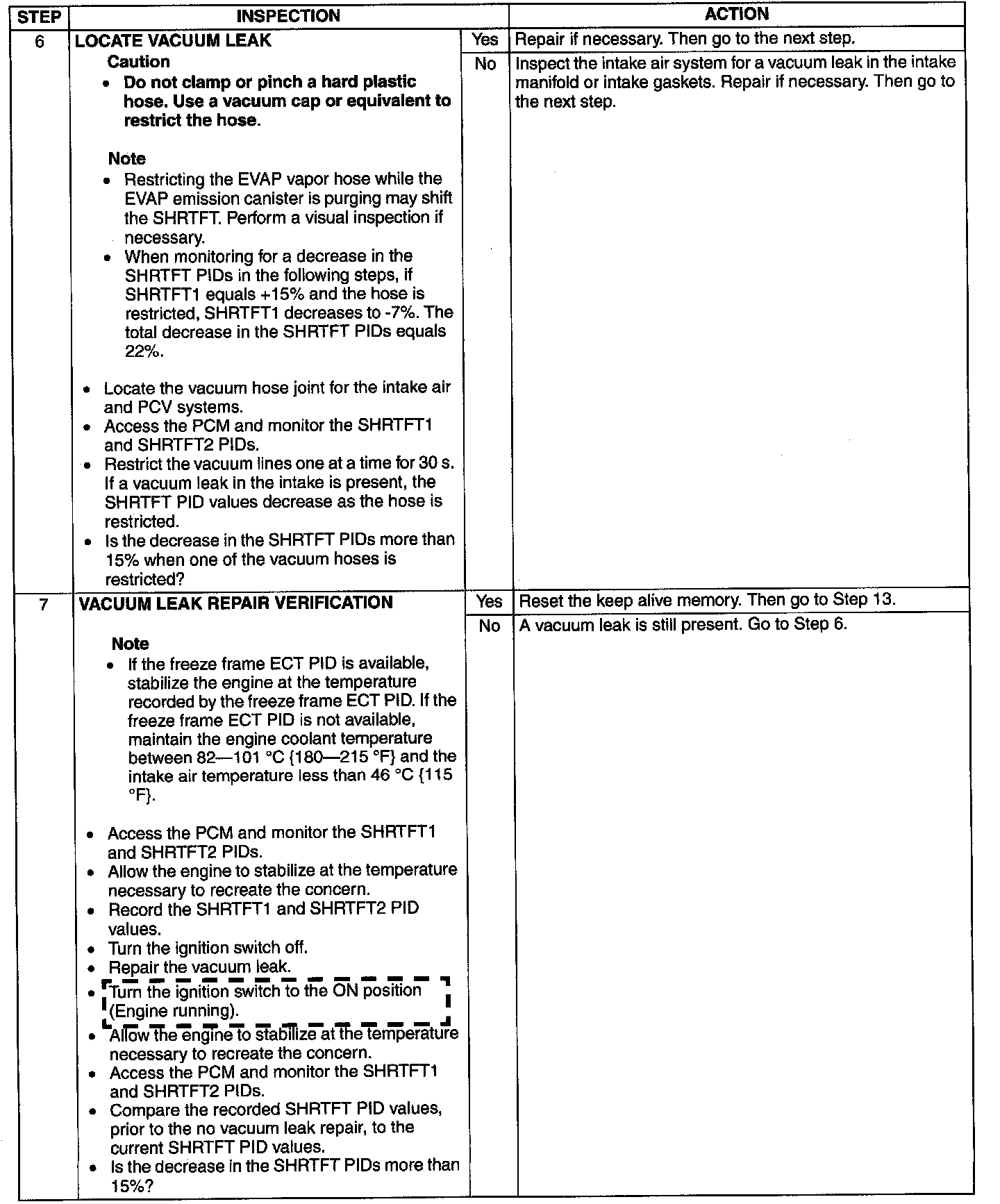

Step 6-Step 7:

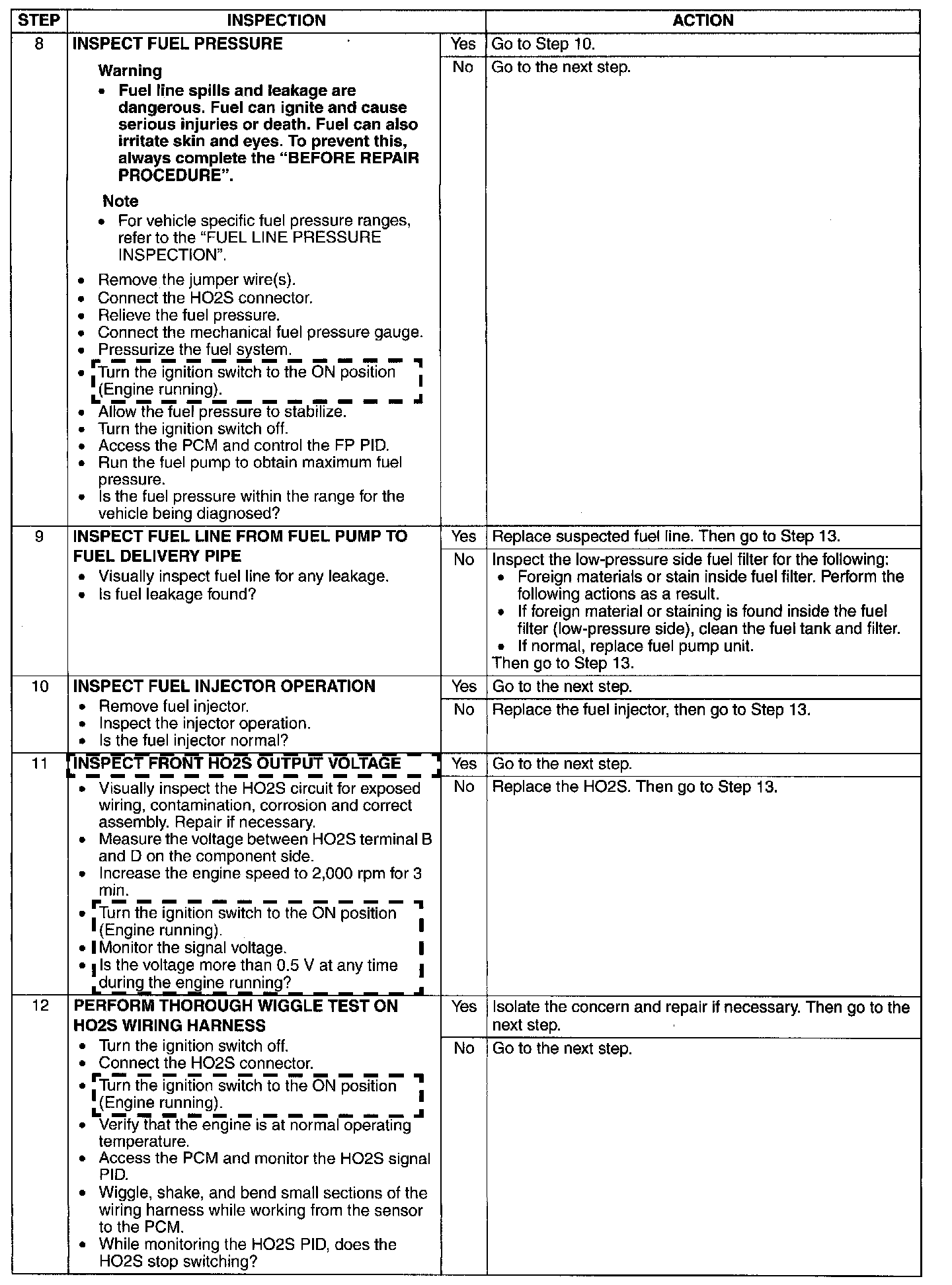

Step 8-Step 12:

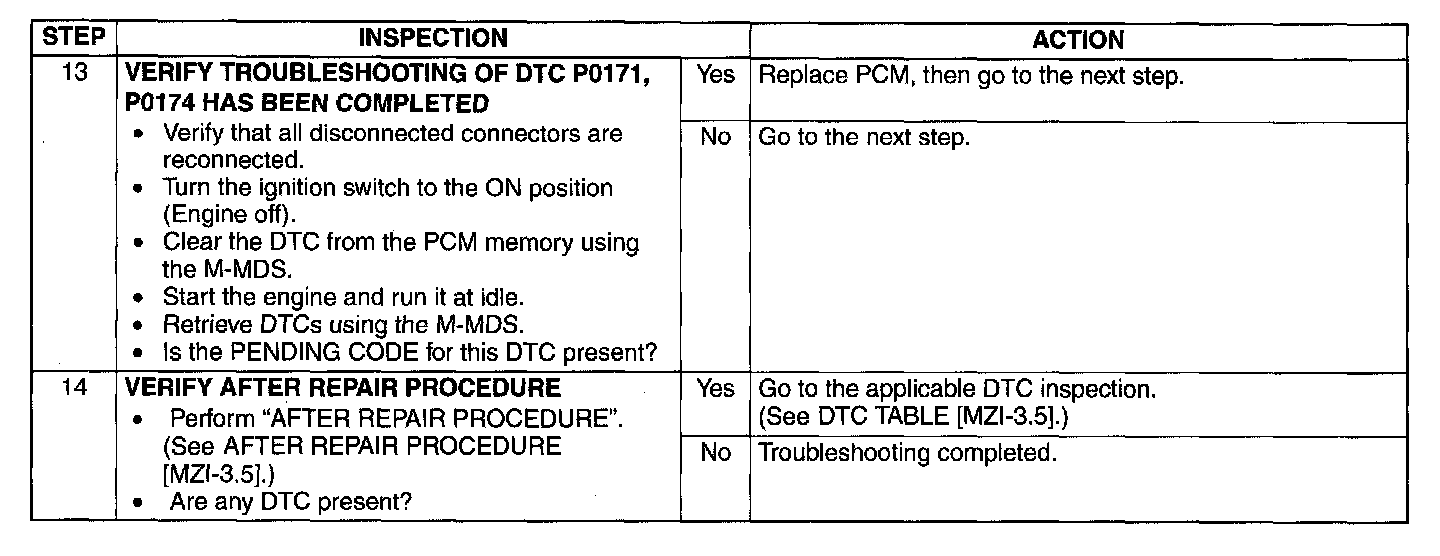

Step 13-Step 14:
