C1730

DTC B1342, C1730 DSC/RSC

Note
^ Perform the inspection of DTCs other than B1342 and C1730 first when verifying DTCs.

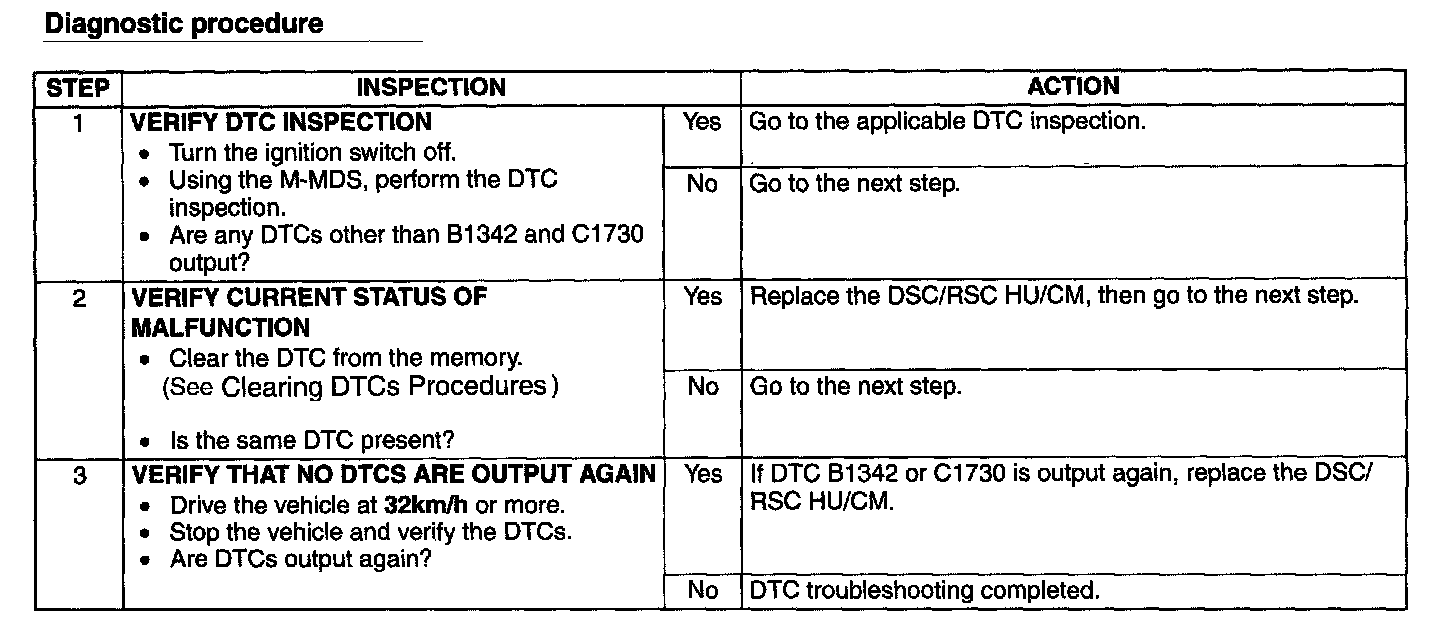

Diagnostic procedure

Step 1-Step 3:
