C1115

DTC C1115, C1185 DSC/RSC

Note
^ Perform the inspection of DTCs other than C1115 and C1185 first when verifying DTCs.

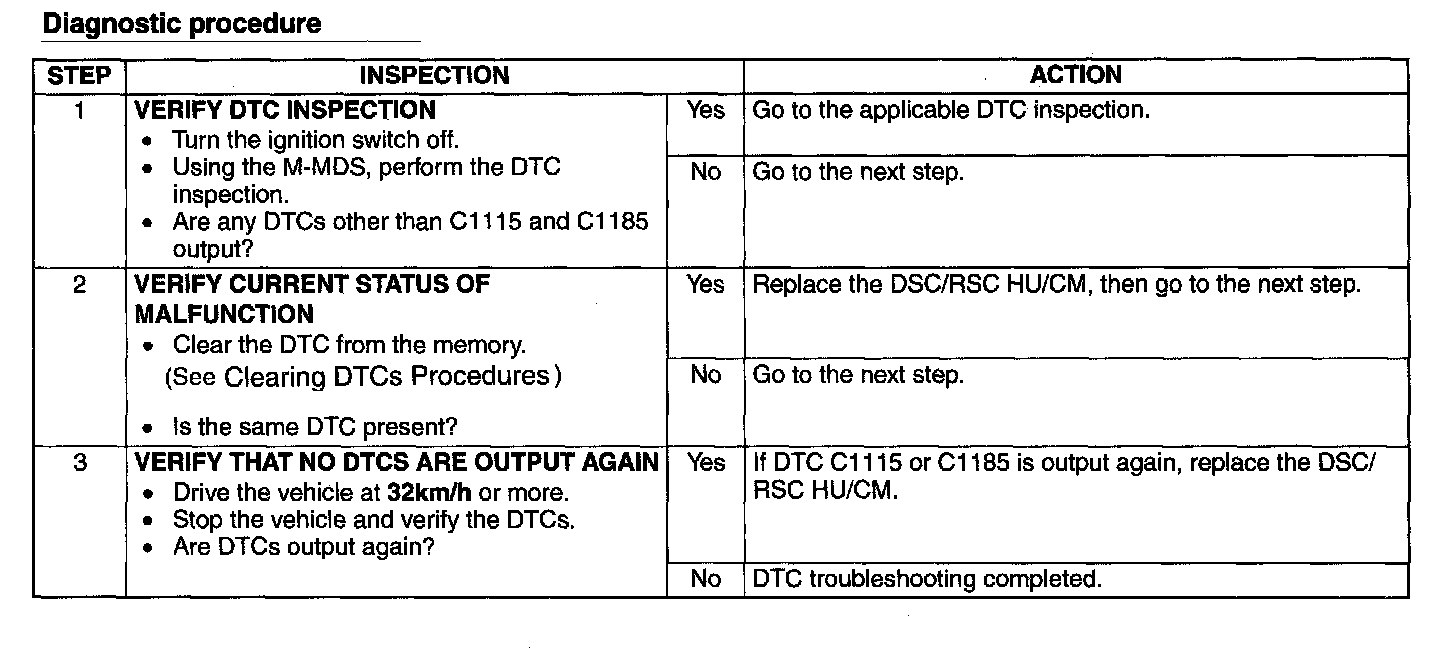

Diagnostic procedure

Step 1-Step 3:
