Power Supply System

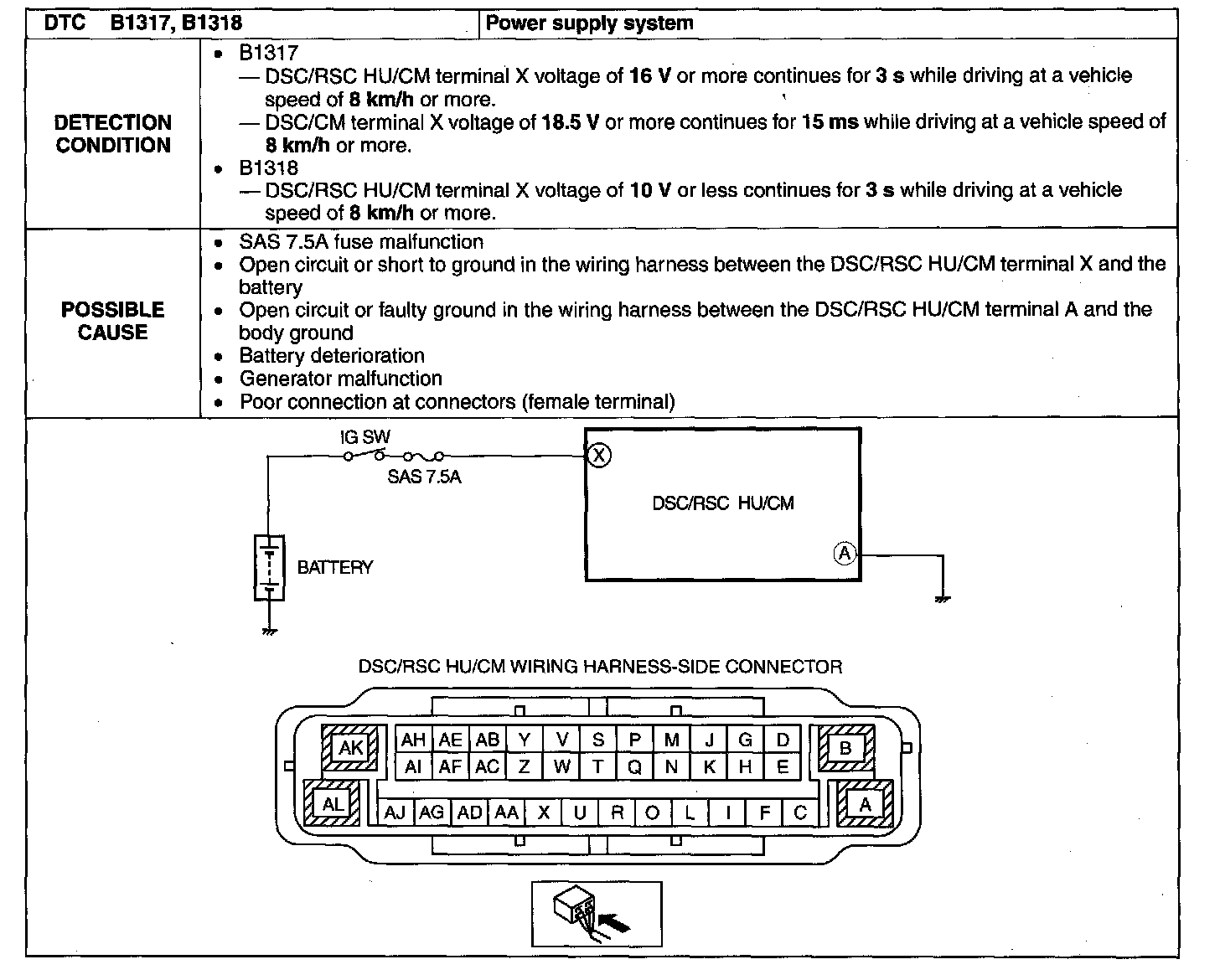

DTC B1317, B1318 DSC/RSC

Note
^ DTC B1317 is output when the battery voltage is 16 V or more. If DTC B1317 is output, inspect the battery and charging system for a malfunction before performing the malfunction diagnosis.

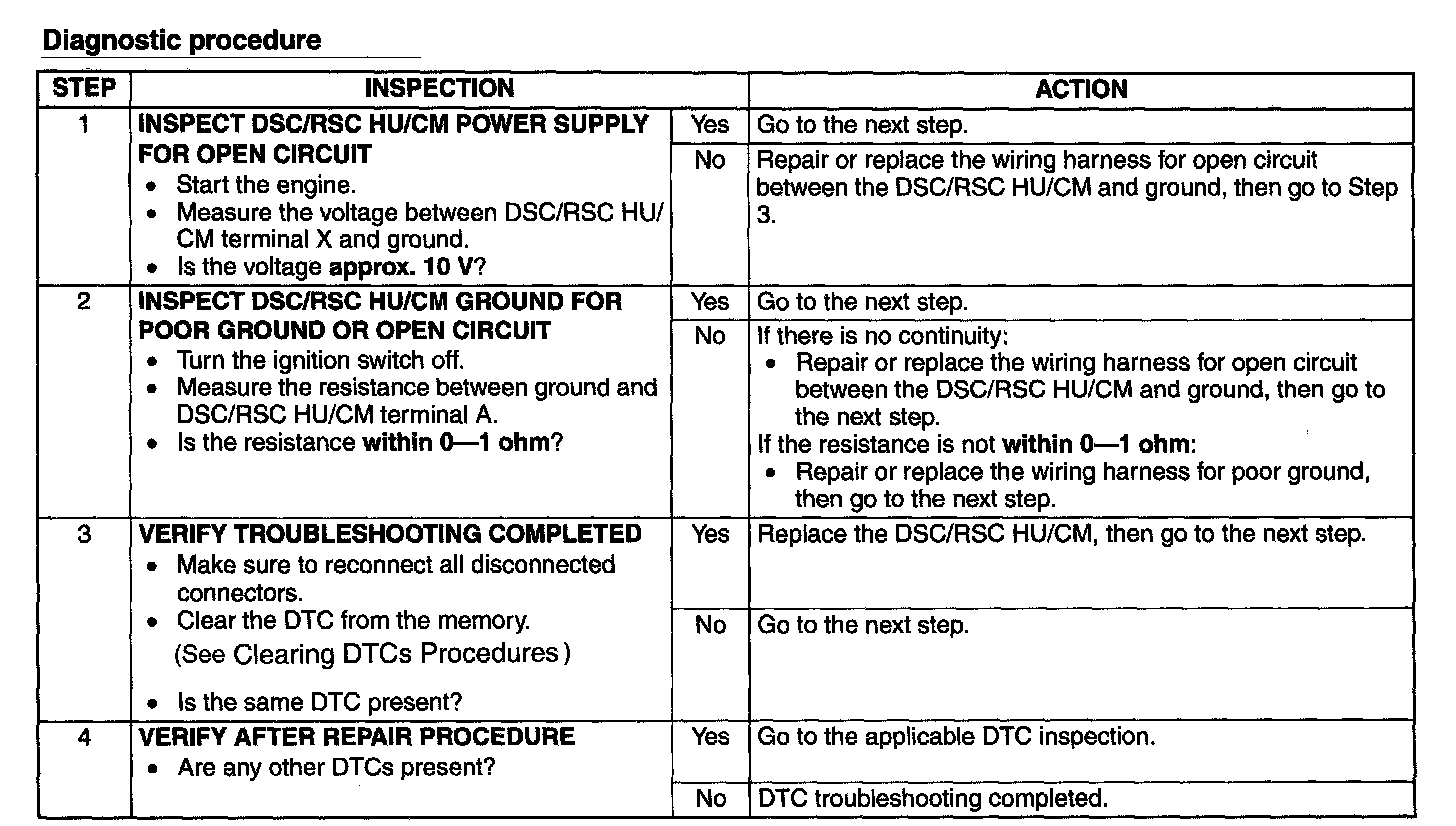

Diagnostic procedure

Step 1-Step 4:
