Electronic Control Components

WARNING: This page is about a different variant/trim than selected.

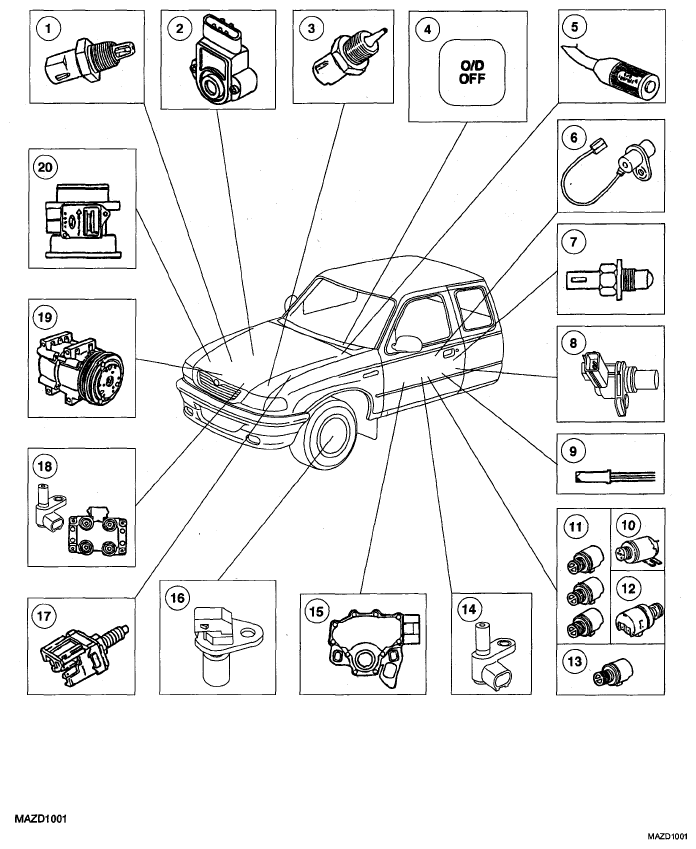

Fig 1: Identifying Electronic Control Components
G04930374Courtesy of MAZDA MOTORS CORP.

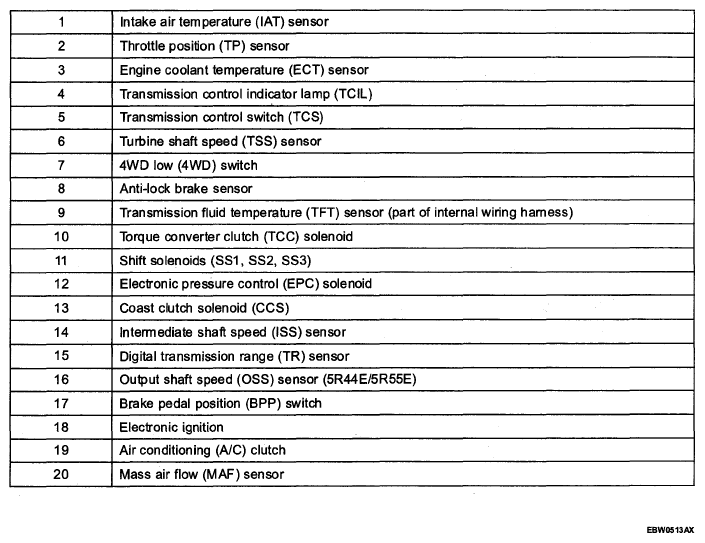

Fig 2: Electronic Control Components Legends
G04930375Courtesy of MAZDA MOTORS CORP.
