Section 2 (Automatic Transmission [Service, Removal & Installation 5R44E/5R55E])
>>
Automatic Transmission Cooling Components View
>>
3.0L and 4.0L
3.0L and 4.0L
WARNING:
This page is about a different variant/trim than selected.

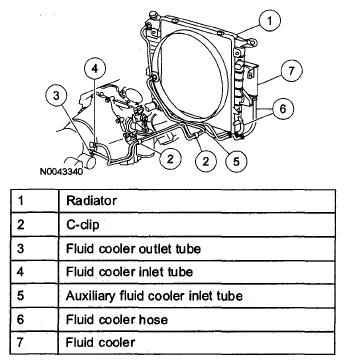

Fig 1: Automatic Transmission Cooling Components View - 3.0L And 4.0L
Courtesy of MAZDA MOTORS CORP.
