Automatic Transmission Cooler Tubes 3.0L/4.0L Removal / Installation: Notes

WARNING: This page is about a different variant/trim than selected.

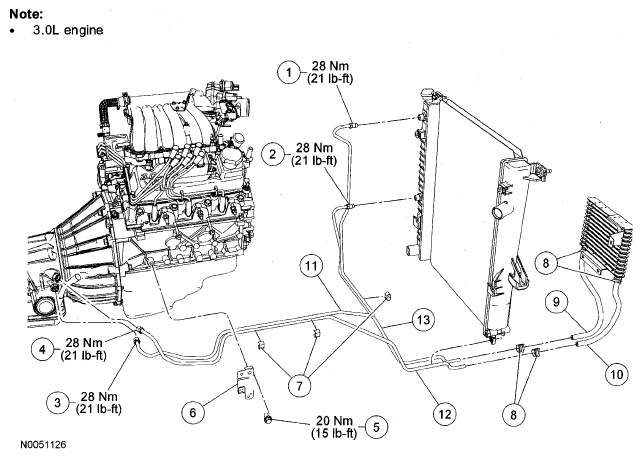

Fig 1: Automatic Transmission Cooler Tubes Replacement Components With Torque Specifications - 3.0L Engine

Courtesy of MAZDA MOTORS CORP.

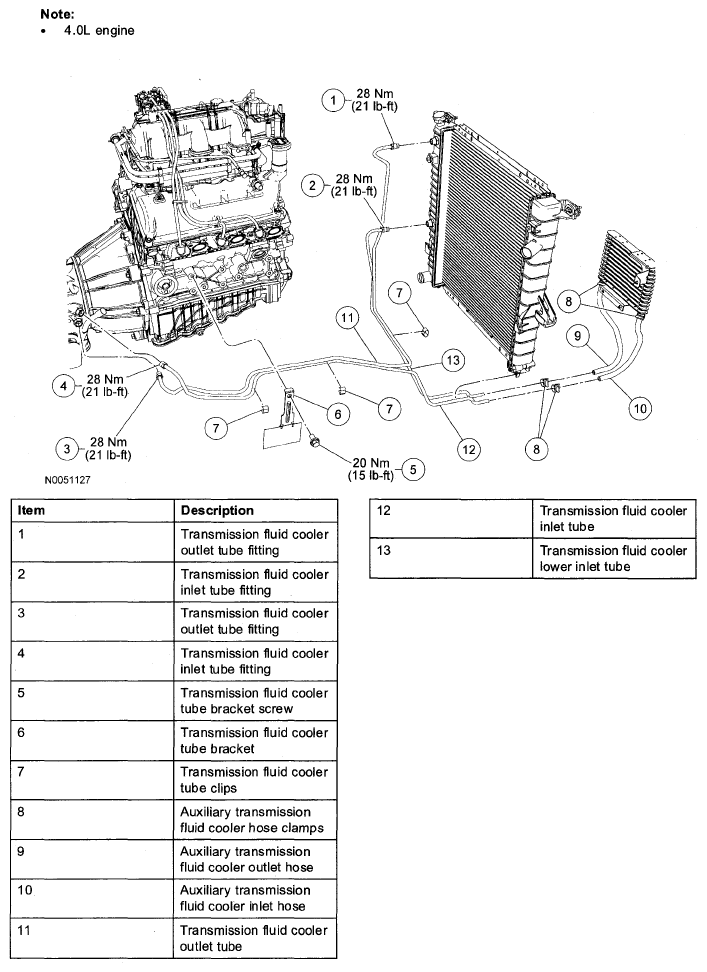

Fig 2: Identifying Automatic Transmission Cooler Tubes Components - 4.0L Engine

Courtesy of MAZDA MOTORS CORP.
