Fluid Pump

WARNING: This page is about a different variant/trim than selected.

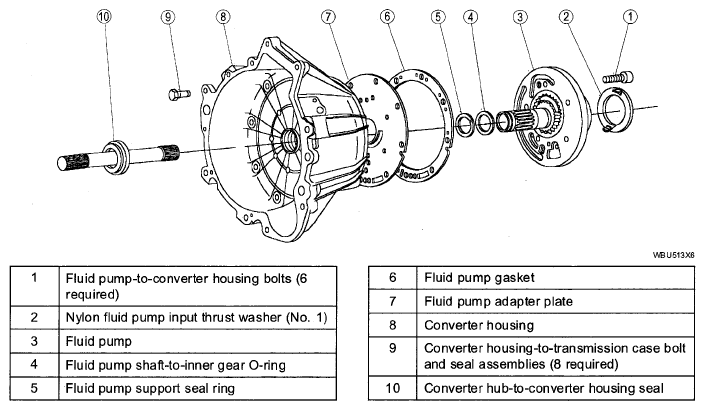

Fig 1: Disassembled View Of Fluid Pump (Hydraulic System)

Courtesy of MAZDA MOTORS CORP.

The fluid pump provides the fluid pressure required to charge the torque converter, main control assembly, transmission cooling system, lubrication system and apply devices.
The fluid pump is a positive displacement, gear and crescent-type pump.
The fluid pump is driven by the torque converter cover hub.
