Control Valve Body Assembly

WARNING: This page is about a different variant/trim than selected.

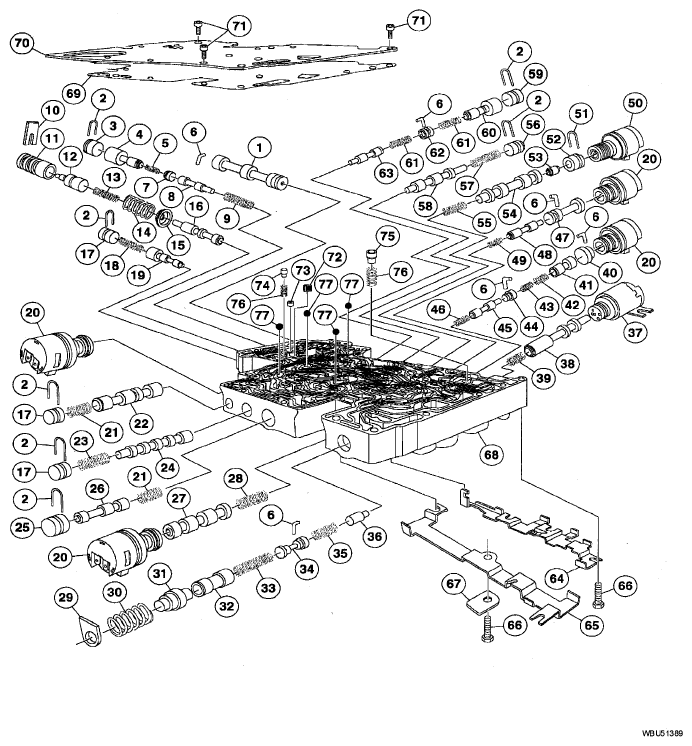

Fig 1: Disassembled View Of Control Valve Body Assembly

Courtesy of MAZDA MOTORS CORP.

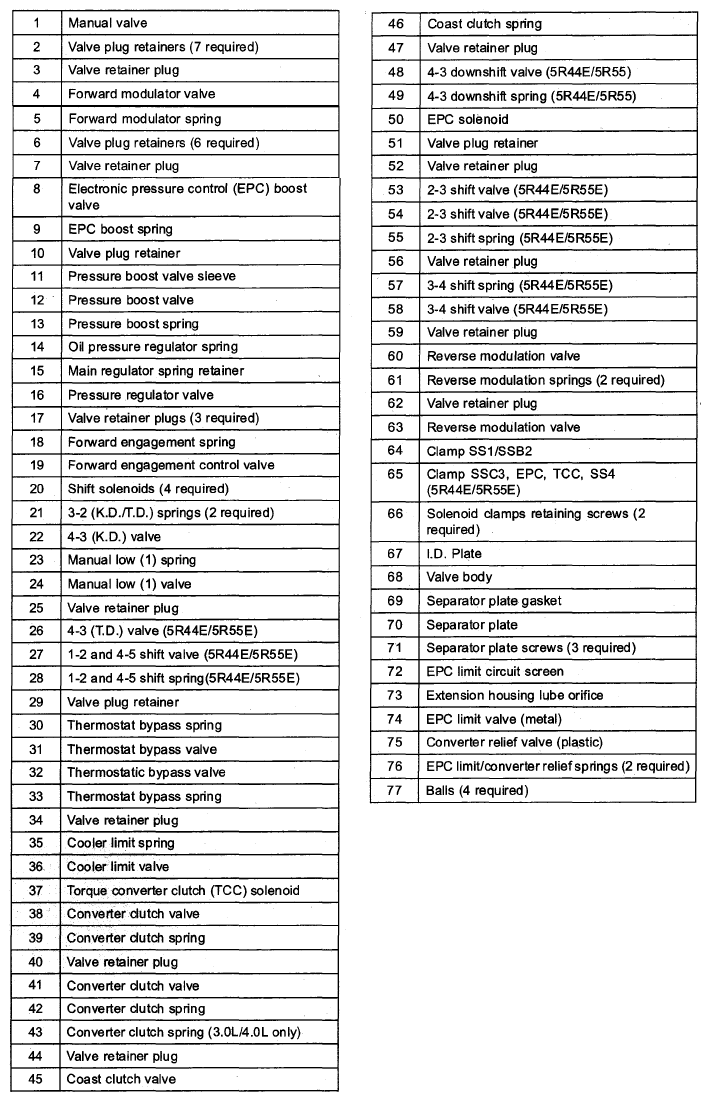

Fig 2: Control Valve Body Assembly Legends

Courtesy of MAZDA MOTORS CORP.

The control valve body and related components are part of the pressure side of the hydraulic system.
The control valve body consists of the solenoids, the valve body assembly and the separator plate.
These components combine to convert electrical signals into hydraulic actions.

All valves in the control assembly are anodized aluminum and cannot be sanded, filed, or dressed in any other way. Any damage to the valves that prevents or restricts their movement requires replacement of the entire main control valve body.
