Planetary Gearset Forward

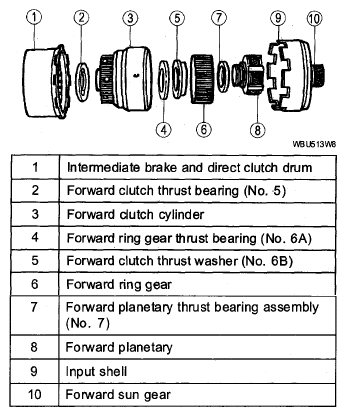

Fig 1: Disassembled View Of Planetary Gearset Forward

Courtesy of MAZDA MOTORS CORP.

The forward planetary gearset is splined to the output shaft.

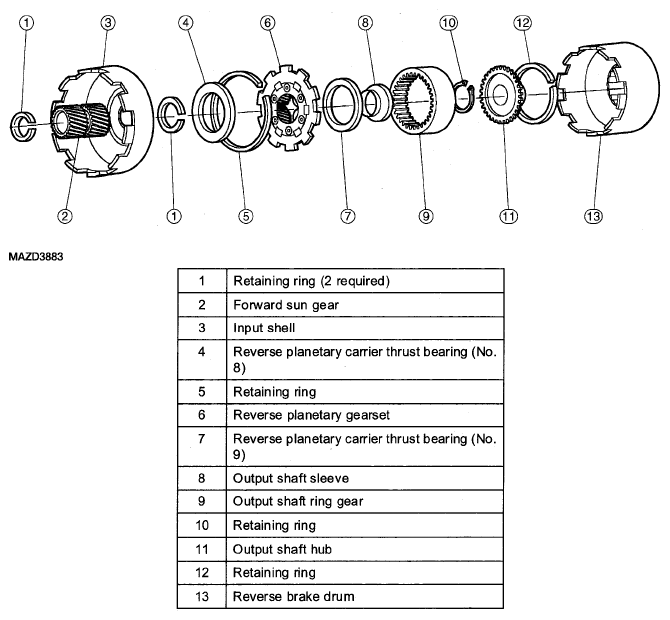

Fig 2: Disassembled View Of Planetary Gearset-Low/Reverse

Courtesy of MAZDA MOTORS CORP.

The reverse planetary gearset is connected to the reverse brake drum by lugs from the reverse brake drum to the lugs of the reverse planetary gearset.

• The forward planetary gearset is driven by the forward ring gear when the forward clutch is applied.
• The forward planetary gearset pinions drive the forward sun gear.
• The forward sun gear is splined to the input shell.
