Disassembled View

WARNING: This page is about a different variant/trim than selected.

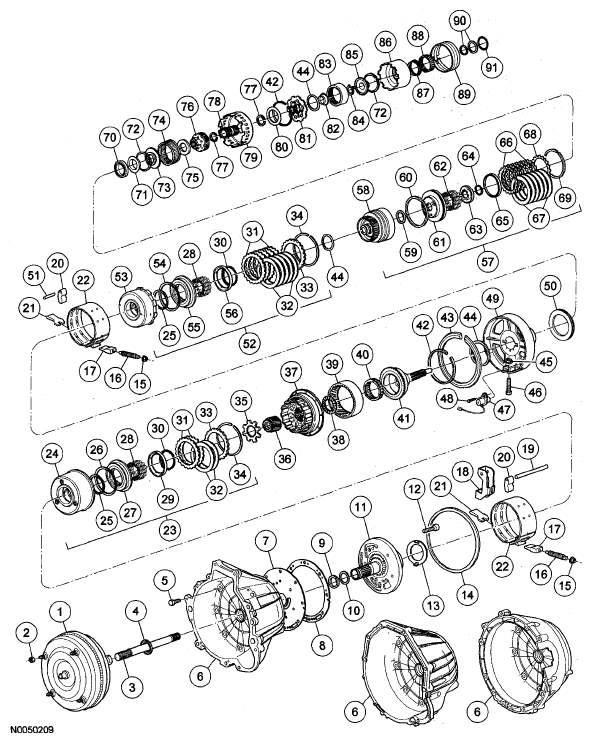

Fig 1: Disassembled View Of Automatic Transmission Components (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

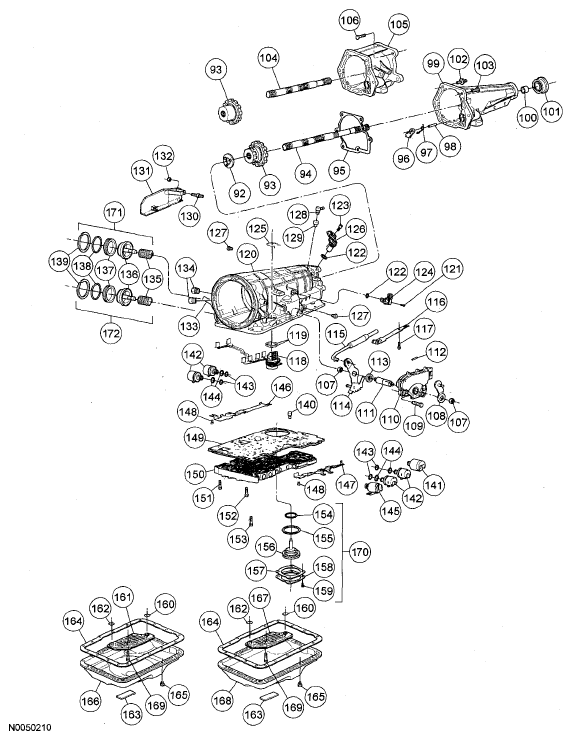

Fig 2: Disassembled View Of Automatic Transmission Components (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

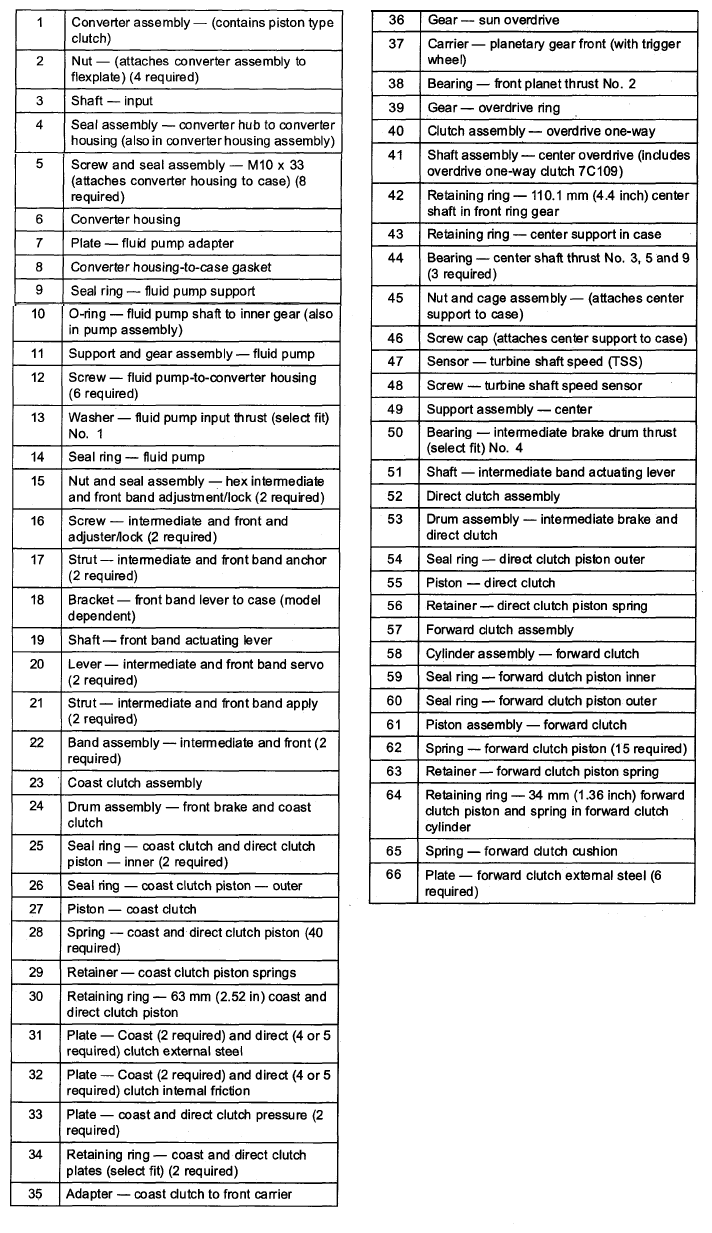

Fig 3: Automatic Transmission Legends (Items 1-66)

Courtesy of MAZDA MOTORS CORP.

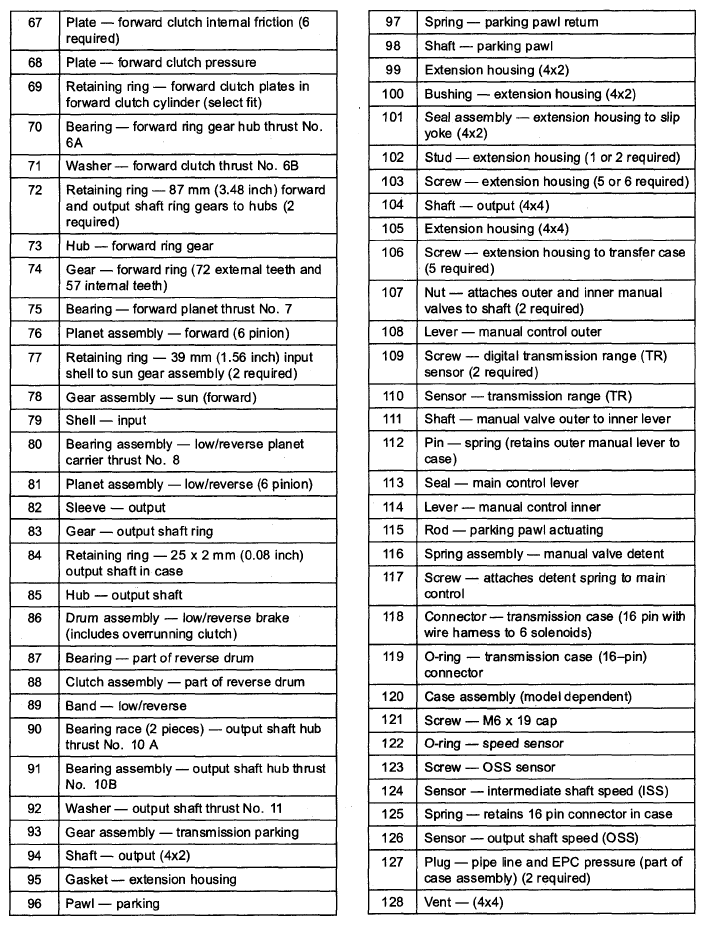

Fig 4: Automatic Transmission Legends (Items 67-128)

Courtesy of MAZDA MOTORS CORP.

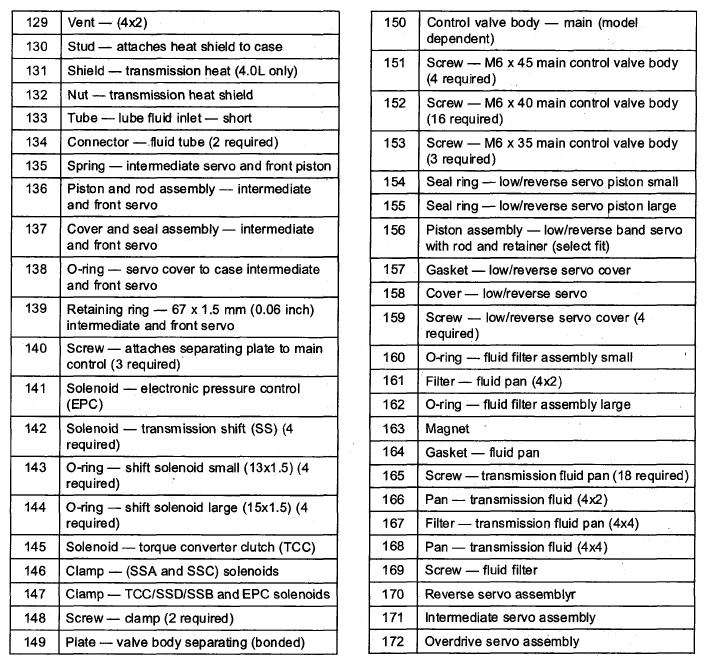

Fig 5: Automatic Transmission Legends (Items 129-172)

Courtesy of MAZDA MOTORS CORP.
