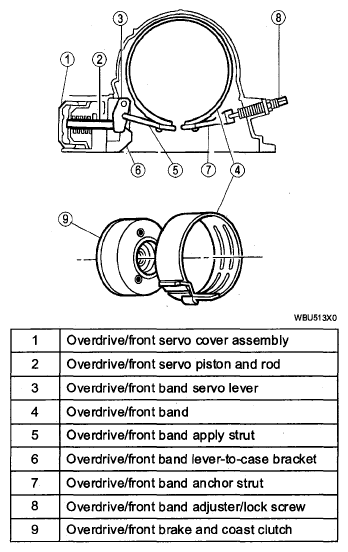

Front Band
WARNING: This page is about a different variant/trim than selected.
Hydraulic pressure is applied to the front side of the front servo.
- This pressure causes the servo to stroke and apply force to the band.
- This action causes the front brake and coast clutch drum to be held.
- The front band holds the front brake and coast clutch drum to the case in 2th and 5th gears.
- This causes the front sun gear to be held stationary through the coast clutch adapter and the front brake and coast clutch drum.
