Selector Lever Removal / Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the ignition switch. See IGNITION SWITCH .
  2. Remove the upper steering column shroud and the rubber shift lever cover.

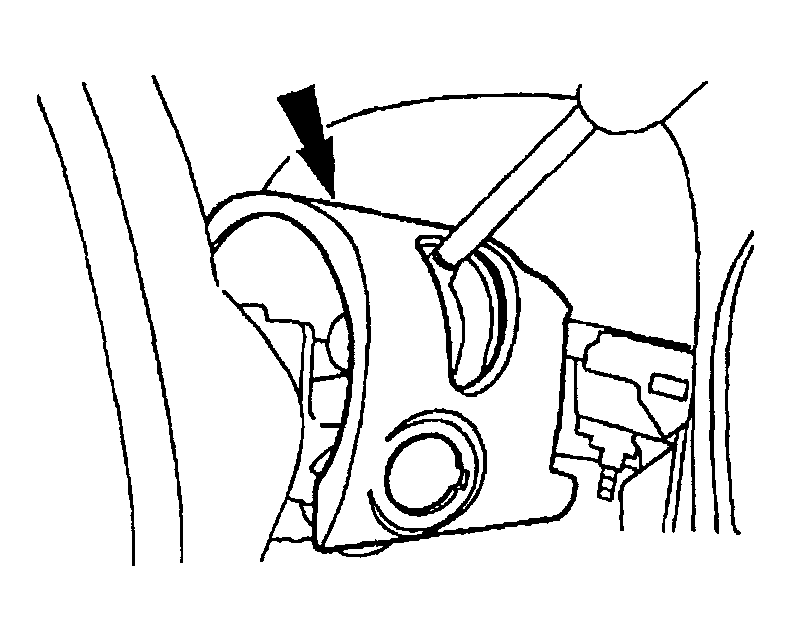

    Fig 1: Removing Upper Steering Column Shroud And Rubber Shift Lever Cover
    G04309522Courtesy of MAZDA MOTORS CORP.
  3. Remove the selector lever.
    1. Disconnect the shift control selector lever harness connector.
    2. Remove and discard the gearshift lever pin.
    3. Remove the gearshift lever.

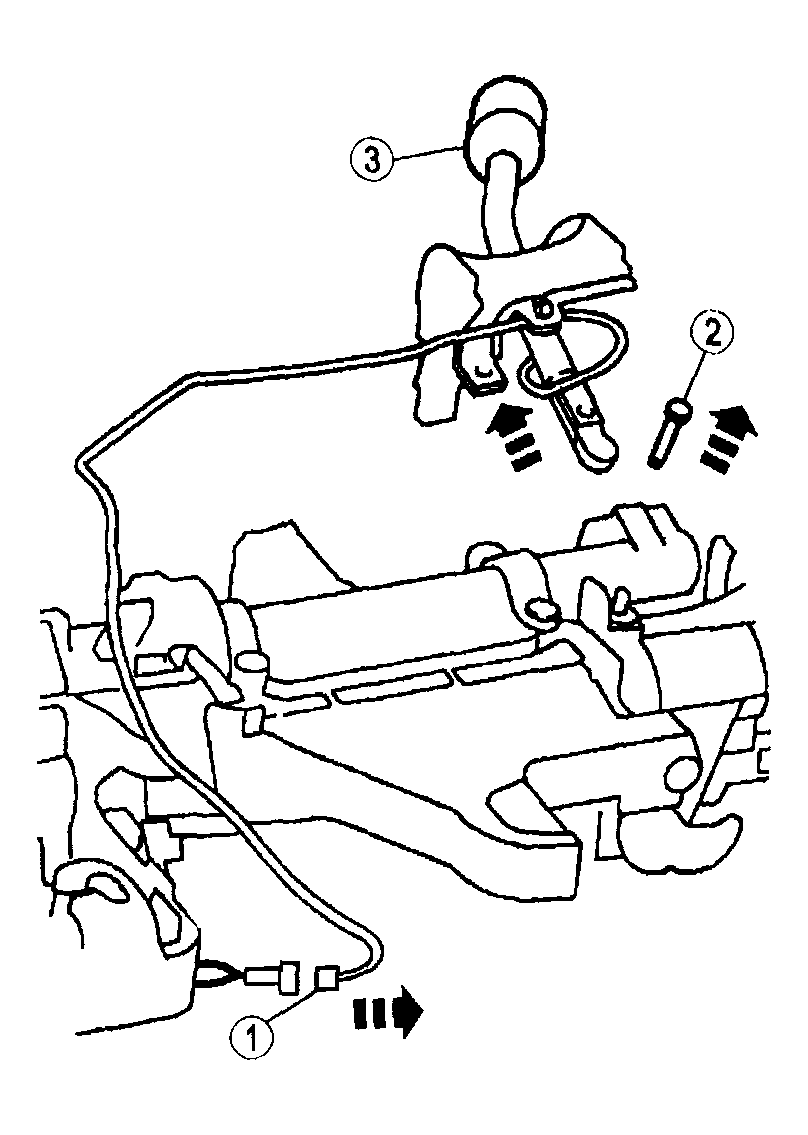

    Fig 2: Disconnecting Shift Control Selector Lever Harness Connector
    G04309523Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The gearshift lever pin must be replaced whenever removed.
  4. To install, reverse the removal procedure.
