Removal & Installation
WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Asbestos fiber dust may be present on brake and clutch assemblies and is hazardous to health if inhaled. Brake and clutch assemblies should be cleaned using a vacuum cleaner recommended for use with asbestos fibers such as a brake/clutch/service vacuum. The bag must be labeled per OSHA instructions, sealed, and the trash hauler notified as to the bag's contents. If a vacuum suitable for asbestos is not available, cleaning should be done wet. If dust generation is still possible, technicians should wear government-approved toxic dust purifying respirators. Failure to follow these instructions may result in personal injury.
- Raise and support front of vehicle. Remove the wheel and tire assembly.

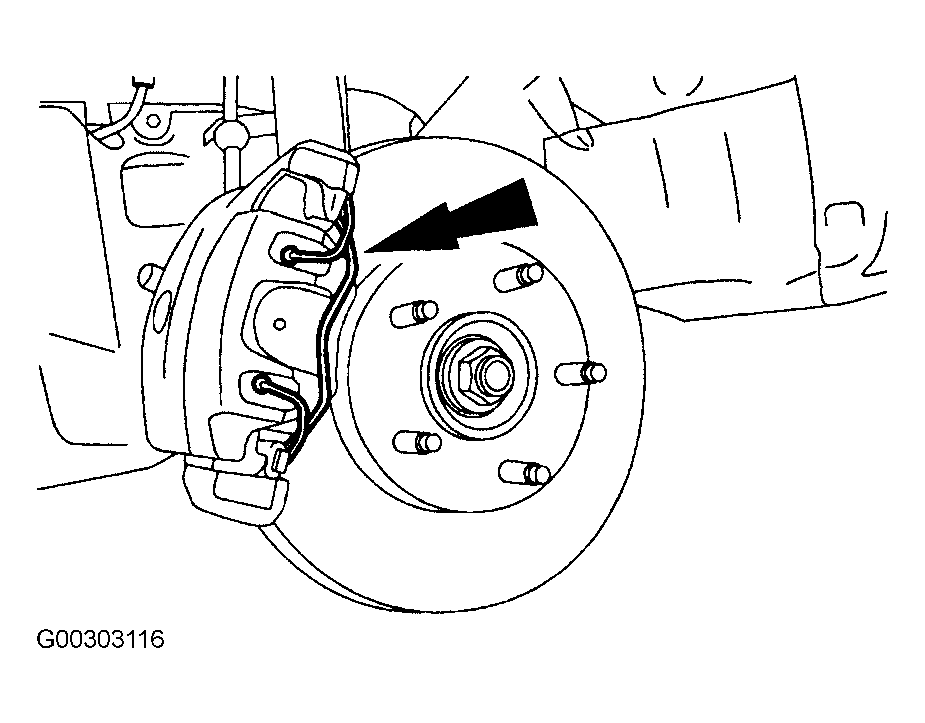

- Remove the brake caliper clip. See Figure .

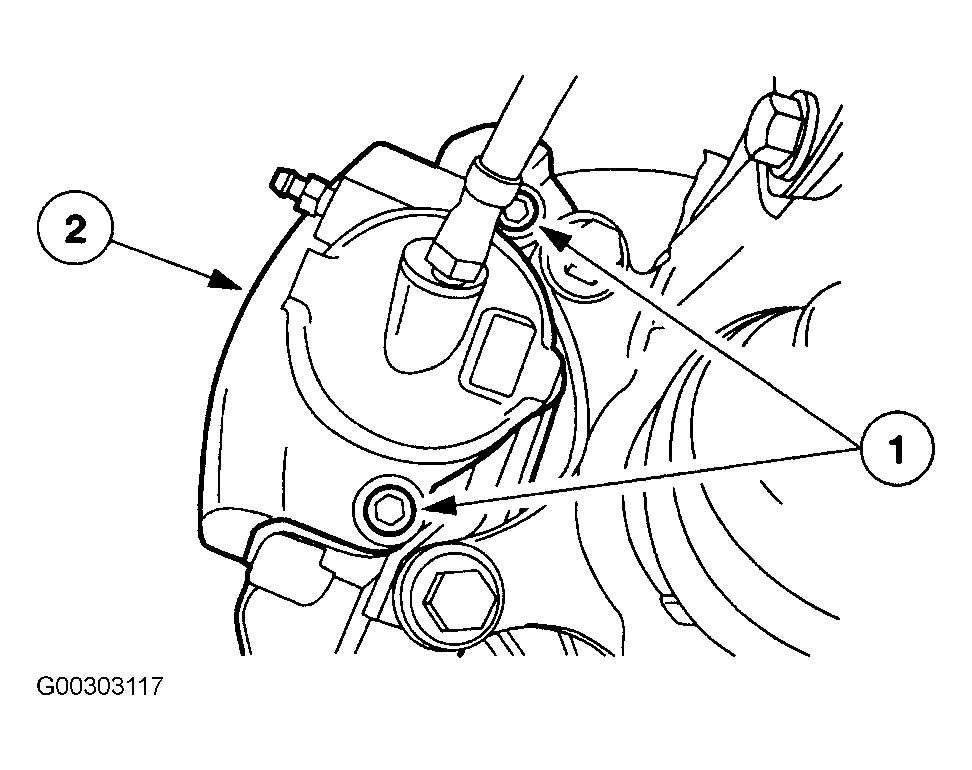

- Position the caliper aside. Remove brake caliper bolt caps and the bolts. Position the caliper aside and support. See Figure . Replace pad if lining thickness is less than specified. See DISC BRAKE SPECIFICATIONS table.

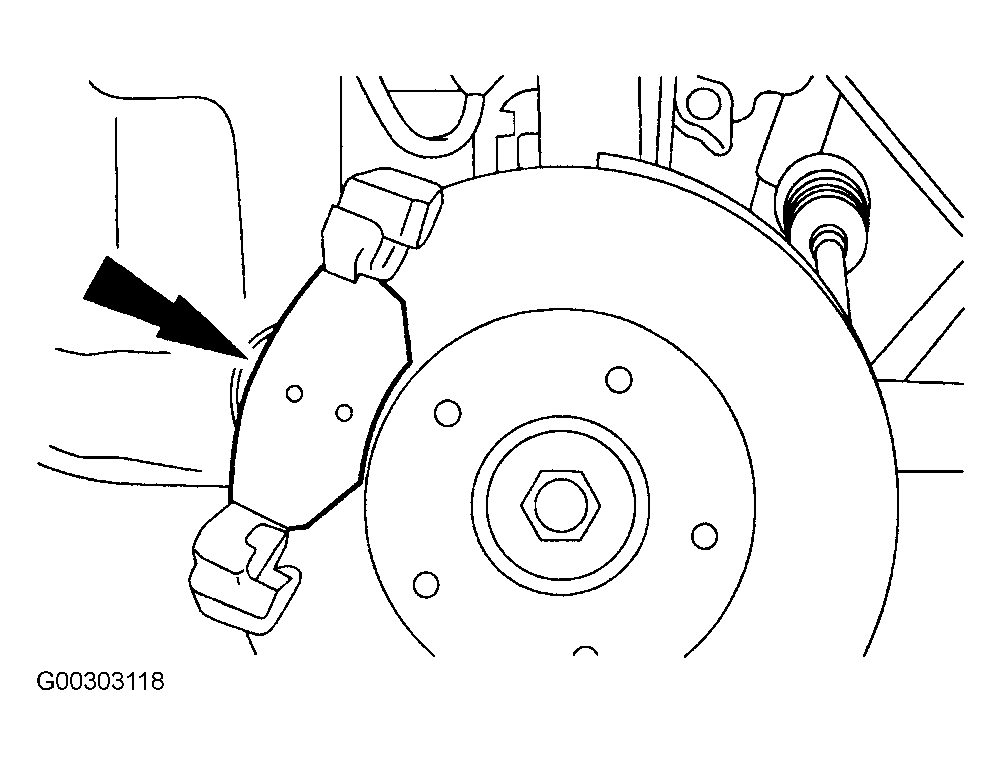

- Remove the brake pads. First remove the outer brake pad from the anchor. Then remove the inner brake pad from the caliper piston. See Figure .
- To install, reverse the removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .
