Brake Shoe Adjustment (With Drum Off)

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake drum. See REAR BRAKE DRUM  under REMOVAL & INSTALLATION.
  2. Using Brake Adjustment Gauge (206-0002), measure the inside diameter of the brake drum. See Fig 1 .
  3. Position the brake adjustment gauge on the brake shoes and linings and adjust accordingly. See Fig 2 .
  4. Install the brake drum.
Fig 1: Measuring Inside Diameter Brake Drum
G00303121Courtesy of MAZDA MOTORS CORP.

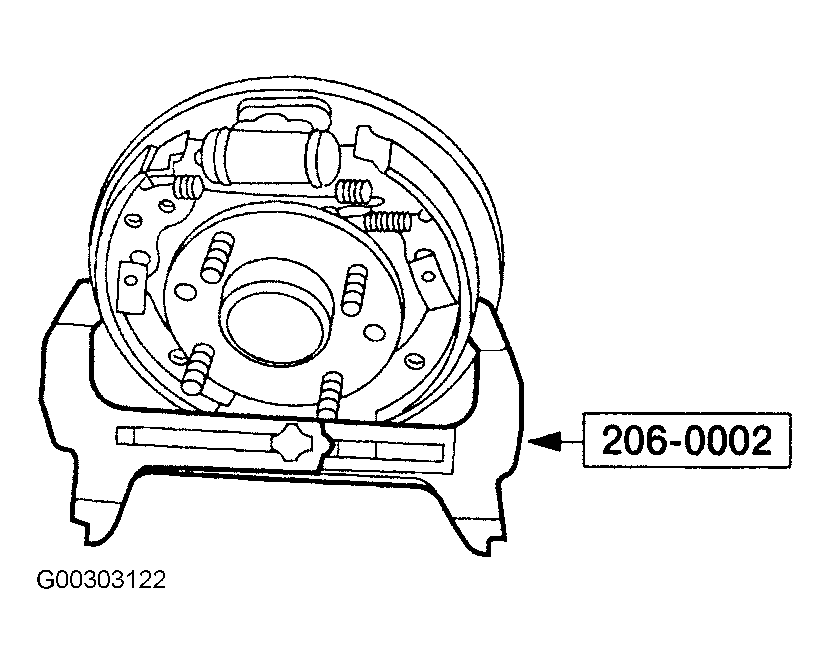

Fig 2: Adjusting Brake Drum
G00303122Courtesy of MAZDA MOTORS CORP.
