Removal & Installation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parking brake control. See PARKING BRAKE CONTROL  . Disconnect the front cable from the parking brake control. Compress the front cable parking brake control clip. See Figure .
  2. Remove the front cable from parking brake control. Disconnect front cable from frame mounting bracket. Disconnect front cable from intermediate cable. Remove front cable. To install reverse removal procedure. Make sure cable is routed through loop on takeup spool. See Fig 1 .

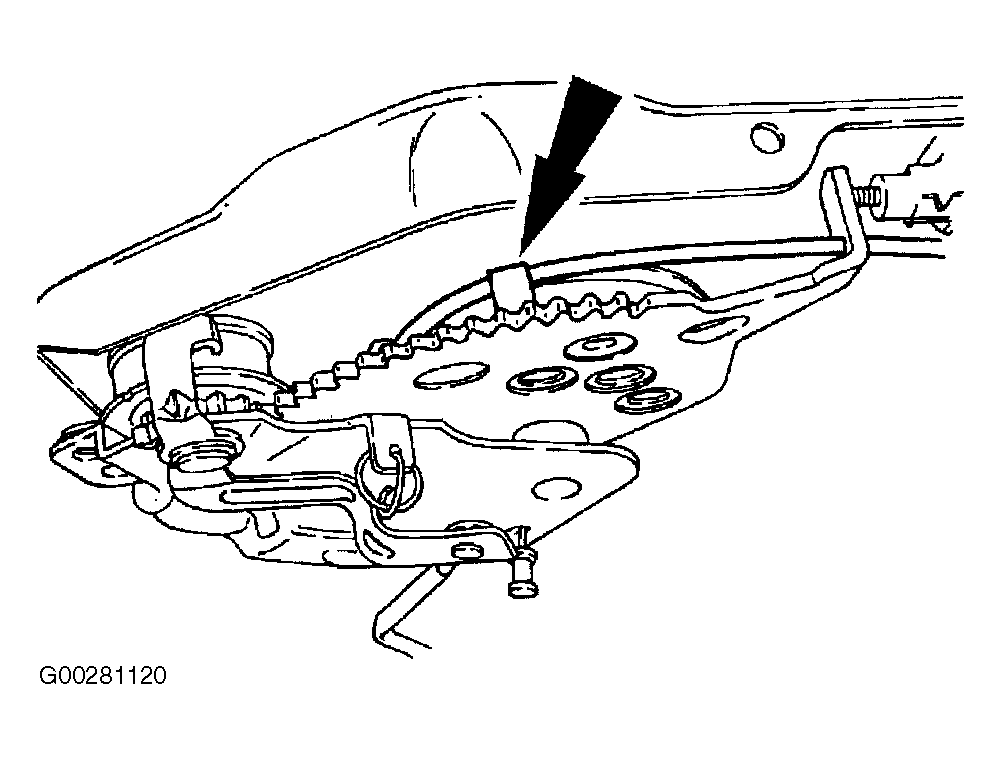

Fig 1: Routing Cable On Takeup Spool
G00281120Courtesy of MAZDA MOTORS CORP.
