Oil Level Indicator Tube Removal / Installation - 3.0L

WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

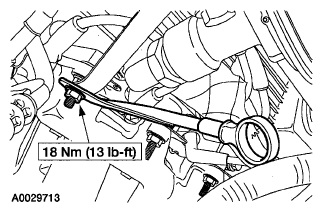

Fig 1: Removing/Installing Oil Level Indicator Tube With Torque Specification

Courtesy of MAZDA MOTORS CORP.

Remove the oil level indicator tube assembly.

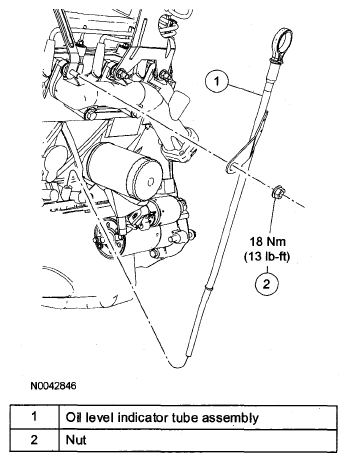

Fig 2: Locating Oil Level Indicator Tube Bracket Nut
Courtesy of MAZDA MOTORS CORP.
Coat the sealing surfaces of the oil level indicator tube with silicone sealant.

Fig 3: Locating Silicone Sealant On Oil Level Indicator Tube
Courtesy of MAZDA MOTORS CORP.
Install the oil level indicator tube.

Fig 4: Oil Level Indicator Tube Bracket Nut With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
