Removal and Installation

WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. See BATTERY DISCONNECT .
Remove the air cleaner outlet tube. See AIR CLEANER OUTLET TUBE REMOVAL / INSTALLATION - 3.0L , .
Remove the bolt and the splash shield.

Fig 1: Splash Shield Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Disconnect the throttle position (TP) sensor electrical connector.

Fig 2: Locating Throttle Position (TP) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the accelerator cable, cruise control actuator cable and return spring.

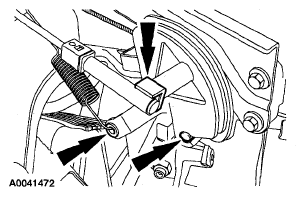

Fig 3: Locating Accelerator Cable, Speed Control Cable And Return Spring
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the throttle body.

Fig 4: Throttle Body Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
If required, remove the throttle body gasket.
If required, remove the TP sensor. See THROTTLE POSITION (TP) SENSOR REMOVAL / INSTALLATION - 3.0L , .
To install, reverse the removal procedure.
