Valve Cover - (LH) Removal / Installation - 3.0L: Notes

WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

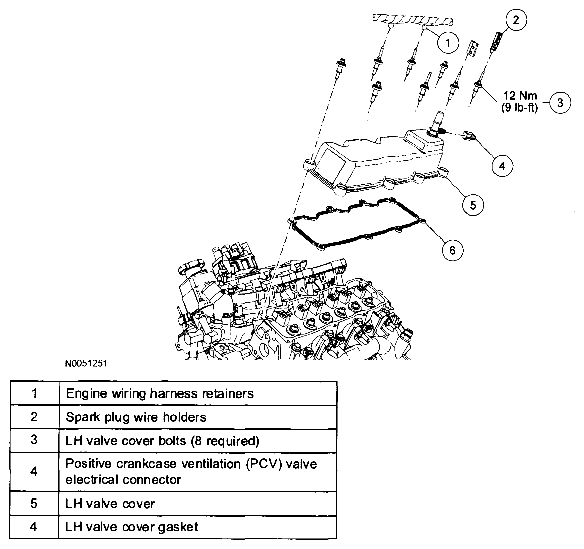

Fig 1: Valve Cover Replacement Components With Torque Specifications - 3.0L
G04929430Courtesy of MAZDA MOTORS CORP.
