Flywheel / FLEXPLATE / Rear Main Seal - Exploded View

WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

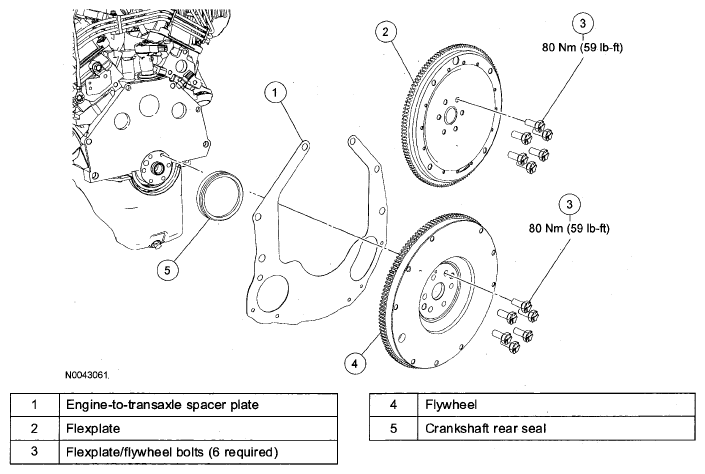

Fig 1: Exploded View Of Flywheel/Flexplate/Rear Main Seal With Torque Specifications
G04929492Courtesy of MAZDA MOTORS CORP.
