Engine Mount LH Removal / Installation - 3.0L: Installation

All vehicles

1. Position the engine support insulator.

   4WD vehicles

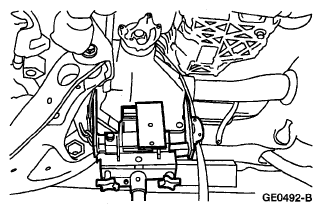

   Fig 1: Locating Engine Support Insulator Nut

   Courtesy of MAZDA MOTORS CORP.
2. Install the engine support insulator nut.

   Tightening Torque 103 Nm {10.5 kgf-m, 76 ft-lbf}

   Fig 2: Locating Axle Housing Mounting Bolts

   Courtesy of MAZDA MOTORS CORP.
3. Raise the front axle into place and install the 3 front axle mounting bolts.

   Tightening Torque 66 Nm {6.7 kgf-m, 49 ft-lbf}

   Fig 3: Securing Front Axle Housing With Suitable Jack

   Courtesy of MAZDA MOTORS CORP.
4. Remove the jack.
   Fig 4: Locating Bolt

   Courtesy of MAZDA MOTORS CORP.
   CAUTION:

   • Remove the tape applied during removal.
5. Align the index marks and install new front driveshaft straps and bolts.

   Tightening Torque 19 Nm {1.9 kgf-m, 14 ft-lbf}

   2WD vehicles

   Fig 5: Locating Engine Support Insulator Nut (2WD Vehicles)

   Courtesy of MAZDA MOTORS CORP.
6. Install the engine support insulator nut.

   Tightening Torque 103 Nm {10.5 kgf-m, 76 ft-lbf}

   All vehicles

7. Lower the engine and remove the three-bar engine support SST  .
   Fig 6: Locating Engine Support Insulator Nuts

   Courtesy of MAZDA MOTORS CORP.
8. Install the engine support insulator nuts.

   Tightening Torque 109 Nm {11.1 kgf-m, 80 ft-lbf}

9. Remove the lifting eyes SST  .
10. Install the fan blade. See COOLING FAN AND CLUTCH REMOVAL / INSTALLATION -- 3.0L .
11. Install the hood.
12. Connect the battery.
