Engine Front Cover Removal / Installation - 3.0L: Notes
WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

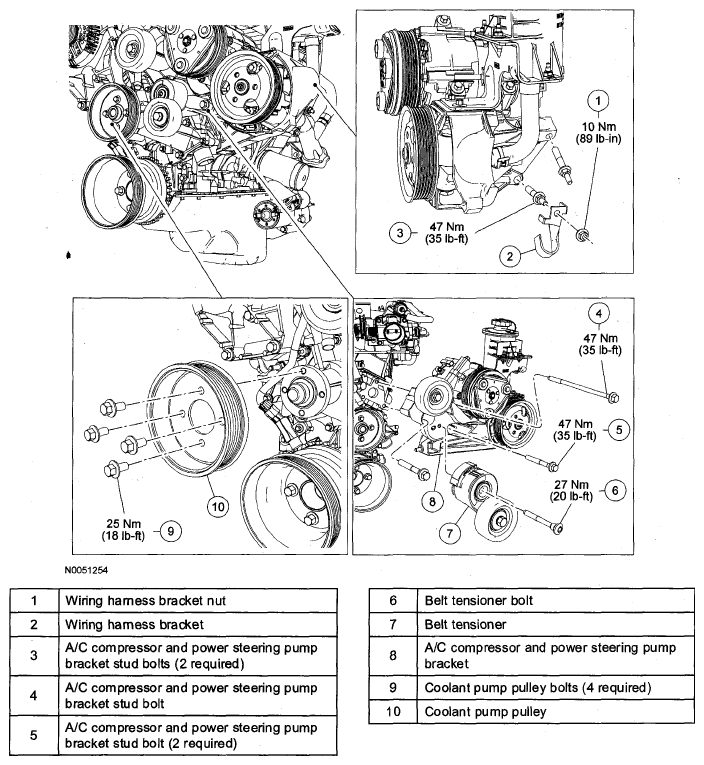

Fig 1: Engine Front Cover Replacement Components With Torque Specifications - 3.0L (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

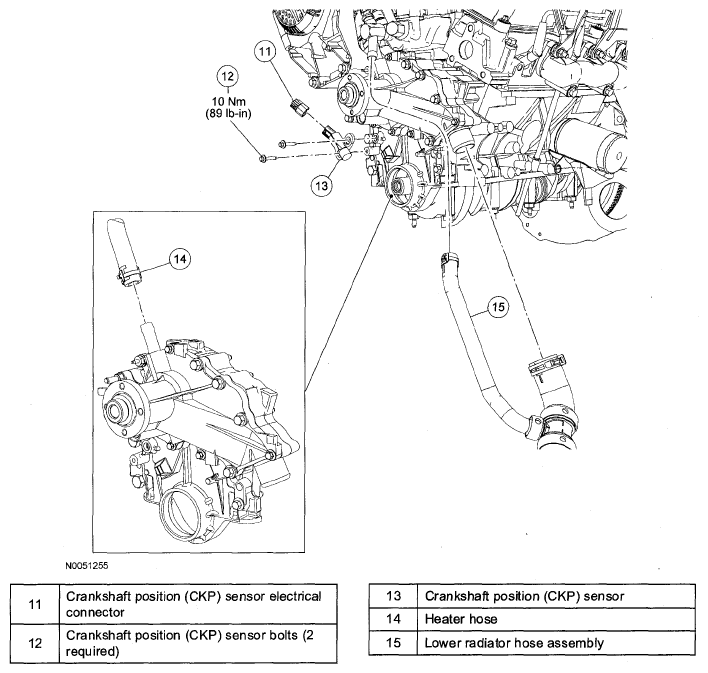

Fig 2: Engine Front Cover Replacement Components With Torque Specifications - 3.0L (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

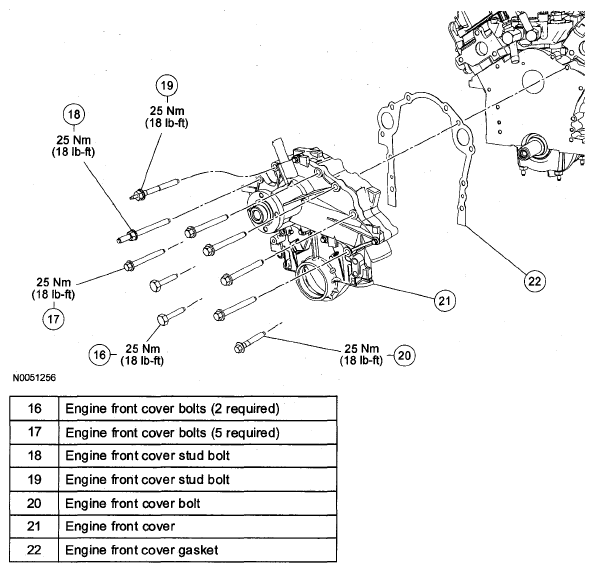

Fig 3: Engine Front Cover Replacement Components With Torque Specifications - 3.0L (3 Of 3)
