Accessory Drive Components - Exploded View

WARNING: This page is about a different car, the 2007 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

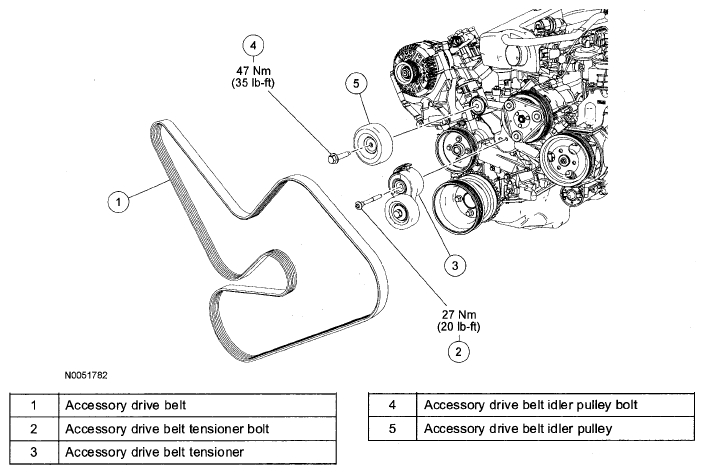

Fig 1: Exploded View Of Accessory Drive Components With Torque Specifications
G04929417Courtesy of MAZDA MOTORS CORP.
