Exhaust Manifold Removal / Installation - 2.3L

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

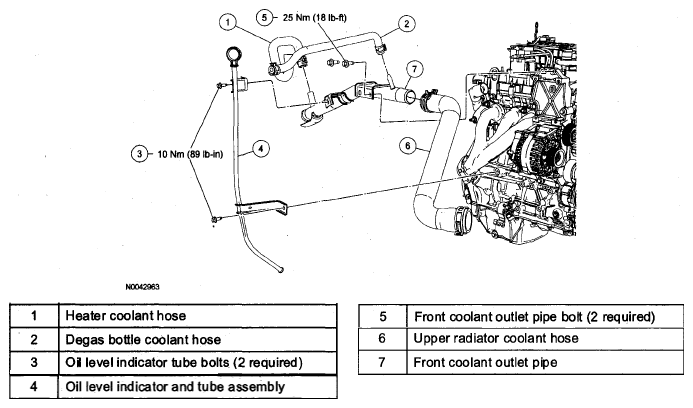

Fig 1: Radiator And Coolant Hose Replacement Components With Torque Specifications - 2.3L
G04930044Courtesy of MAZDA MOTORS CORP.

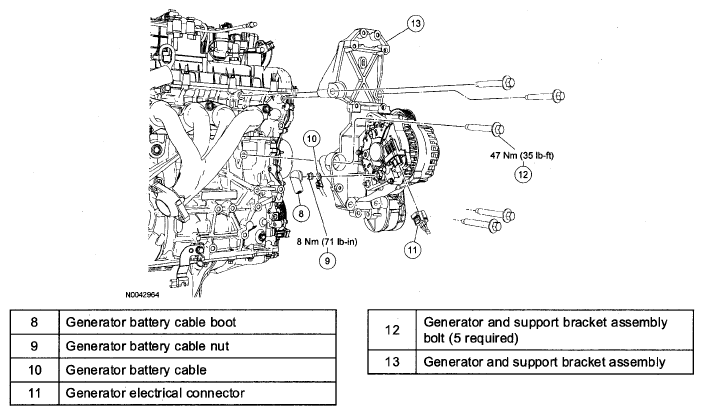

Fig 2: Generator Replacement Components With Torque Specifications - 2.3L
G04930045Courtesy of MAZDA MOTORS CORP.

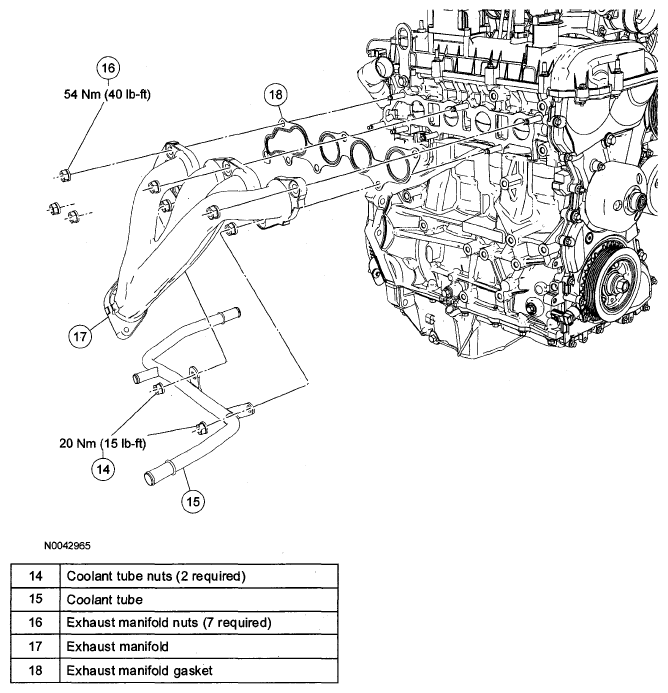

Fig 3: Exhaust Manifold Replacement Components With Torque Specifications - 2.3L
G04930046Courtesy of MAZDA MOTORS CORP.
  1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
  2. Disconnect the negative battery cable. See BATTERY DISCONNECT .
    Fig 4: Identifying Exhaust Flange Nuts
    G04930047Courtesy of MAZDA MOTORS CORP.
  3. Remove the exhaust flange nuts.
  4. Remove the drive belt. See DRIVE BELT REMOVAL / INSTALLATION - 2.3L , .
  5. Drain the cooling system. See ENGINE COOLANT REPLACEMENT -- 2.3L .
    Fig 5: Identifying Upper Radiator Hose And Engine Reservoir Hose
    G04930048Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the upper radiator hose and the engine reservoir hose.
  7. Remove the A/C compressor. See A/C COMPRESSOR REMOVAL / INSTALLATION -- 2.3L .
    Fig 6: Identifying Heater Water Hose
    G04930049Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the heater water hose.
    Fig 7: Oil Level Indicator And Upper Retaining Bolt With Torque Specifications
    G04930050Courtesy of MAZDA MOTORS CORP.
  9. Remove the oil indicator and the upper bolt for the tube assembly.
    Fig 8: Lower Bolt With Torque Specifications
    G04930051Courtesy of MAZDA MOTORS CORP.
  10. Remove the lower bolt and remove the oil indicator tube assembly.
    Fig 9: Front Radiator Tube Bolts With Torque Specifications
    G04930052Courtesy of MAZDA MOTORS CORP.
  11. Remove the bolts and the front radiator tube.
    Fig 10: Locating Pushpins
    G04929219Courtesy of MAZDA MOTORS CORP.
  12. Remove the pushpins and position the right inner fender splash shield out of the way.
    Fig 11: Locating Alternator Electrical Connectors With Torque Specifications
    G04929240Courtesy of MAZDA MOTORS CORP.
  13. Disconnect the alternator electrical connectors.
    Fig 12: Lower Front End Accessory Drive (FEAD) Mounting Bolts With Torque Specifications
    G04930055Courtesy of MAZDA MOTORS CORP.
  14. Remove the lower front end accessory drive (FEAD) mounting bolts.
    Fig 13: Upper Mounting Bolt Torque Specifications
    G04930056Courtesy of MAZDA MOTORS CORP.
  15. Remove the upper mounting bolt and the FEAD assembly.
    Fig 14: Coolant Tube Nuts With Torque Specifications
    G04930057Courtesy of MAZDA MOTORS CORP.
  16. Remove the two nuts and position the coolant tube out of the way.
    Fig 15: Exhaust Manifold Nuts With Torque Specifications
    G04930058Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Engine removed for clarity.
  17. Remove the nuts and the exhaust manifold.
    Fig 16: Locating Exhaust Manifold Gasket
    G04930059Courtesy of MAZDA MOTORS CORP.
  18. Remove the exhaust manifold gasket.
  19. To install, reverse the removal procedure.
