Intake Manifold Removal / Installation - 2.3L: Installation

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Inspect and install new intake manifold gaskets.

Fig 1: Locating Intake Manifold Gaskets
Courtesy of MAZDA MOTORS CORP.
Install the intake manifold and the five mounting bolts.

Fig 2: Intake Manifold Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Connect the wiring pushpin to the bottom of the intake manifold.
Connect fuel supply tube to the manifold. See FUEL INJECTION SUPPLY MANIFOLD AND FUEL INJECTOR - 2.3L REMOVAL / INSTALLATION , .
Connect the engine KS connector to the intake manifold and connect the electrical connector.

Fig 3: Locating Engine Knock Sensor (KS) Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Attach the electrical connectors and the fuel supply tube to the bracket and connect the vapor purge tube quick connect coupling.

Fig 4: Locating Fuel Supply Tube, Electrical Connectors And Vapor Purge Tube Quick Connect Coupling
Courtesy of MAZDA MOTORS CORP.
Install the EGR flange mounting bolts.

Fig 5: EGR Flange Mounting Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the EGR tube bracket bolt.

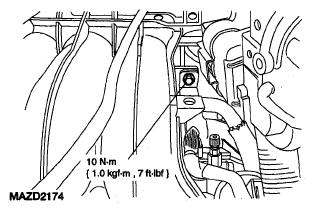

Fig 6: EGR Tube Bracket Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Position the engine wiring harness and connect the pin-type retainers.

Fig 7: Locating Engine Wiring Harness Pin-Type Retainers
Courtesy of MAZDA MOTORS CORP.
Connect the engine vacuum harness, brake booster hose and the crankcase breather hose. Connect the coolant hoses.

Fig 8: Locating Vacuum Harness, Brake Booster Hose And Crankcase Breather Hose
Courtesy of MAZDA MOTORS CORP.
Connect the vapor purge hose and the IAC valve electrical connector.

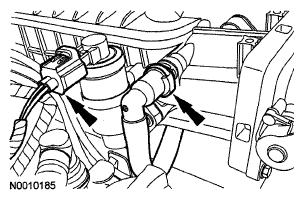

Fig 9: Locating Vacuum Hose And Idle Air Control Valve Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Connect the MAP sensor electrical connector.

Fig 10: Locating Manifold Absolute Pressure (MAP) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Connect the TP sensor electrical connector.

Fig 11: Locating Throttle Position (TP) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Connect the throttle cables to the intake manifold and the throttle body.

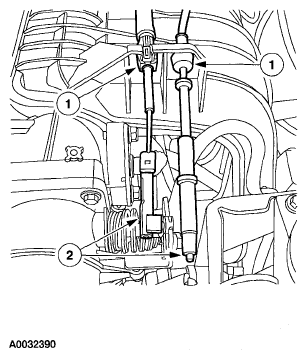

Fig 12: Identifying Throttle Cables And Intake Manifold
Courtesy of MAZDA MOTORS CORP.
1. Connect the accelerator cable and cruise control cable (if equipped) into the mounting bracket.
2. Connect the accelerator cable and cruise control cable (if equipped) onto the throttle linkage.
Install the air cleaner outlet pipe. See AIR CLEANER OUTLET PIPE REMOVAL / INSTALLATION -2.3L , .
Install the accelerator control splash shield.

Fig 13: Locating Accelerator Control Splash Shield Bolts
Courtesy of MAZDA MOTORS CORP.
Fill and bleed the engine cooling system. See ENGINE COOLANT REPLACEMENT -- 2.3L .
