Air Intake Components

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

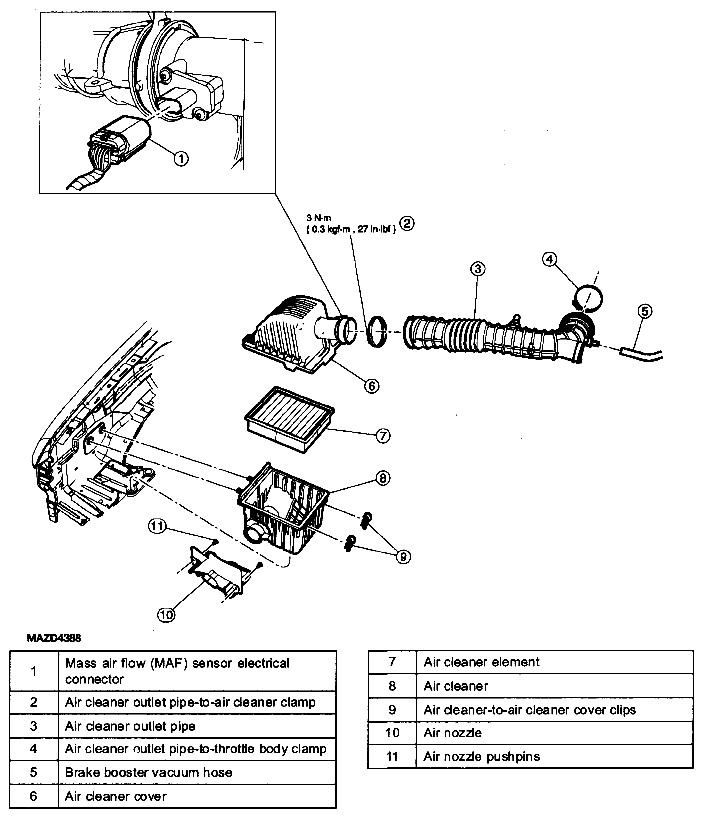

Fig 1: Air Intake Replacement Components With Torque Specifications
G04929836Courtesy of MAZDA MOTORS CORP.
