Valve Train Components - Exploded View

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

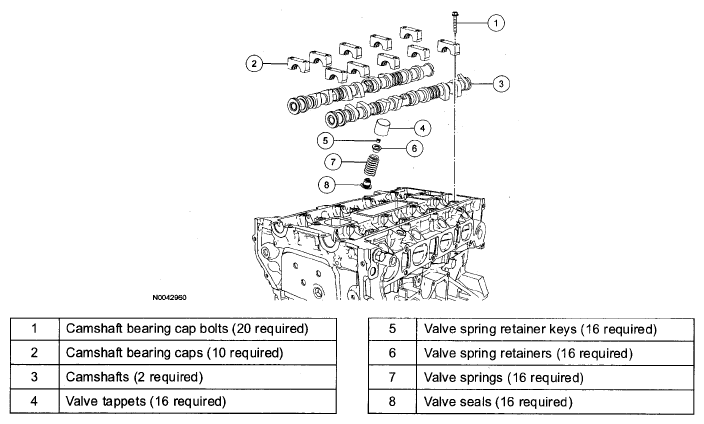

Fig 1: Valve Train Components - Exploded View
G04929118Courtesy of MAZDA MOTORS CORP.
