Valve Cover Removal / Installation - 2.3L: Notes

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

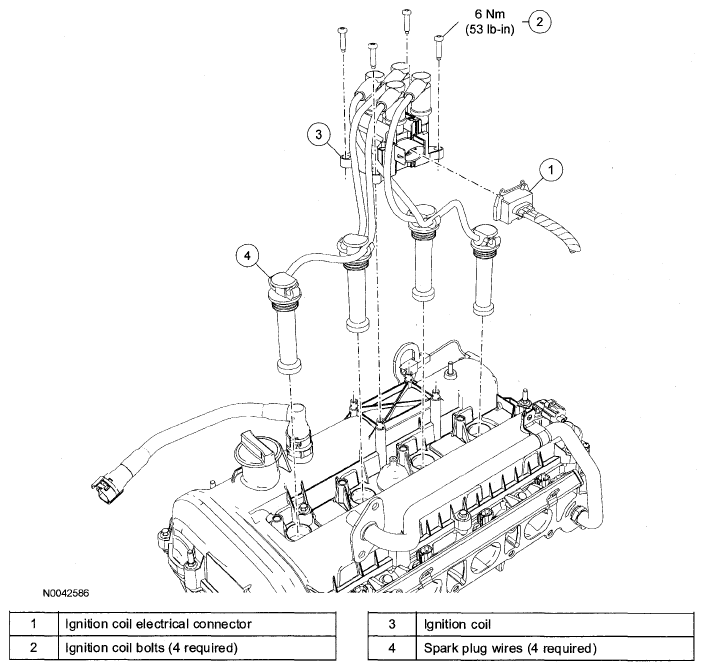

Fig 1: Ignition Coil, Coil Bolts, Connector And Spark Plug Wires With Torque Specifications
G04929114Courtesy of MAZDA MOTORS CORP.

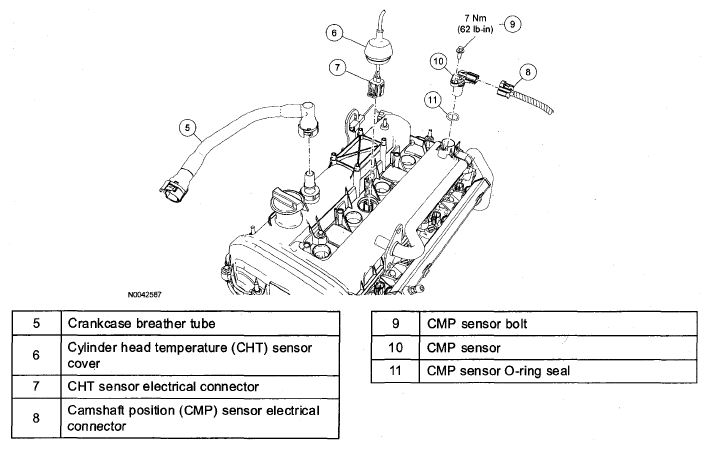

Fig 2: CHT And CMP Sensor Connector With Associated Replacement Components With Torque Specifications
G04929115Courtesy of MAZDA MOTORS CORP.

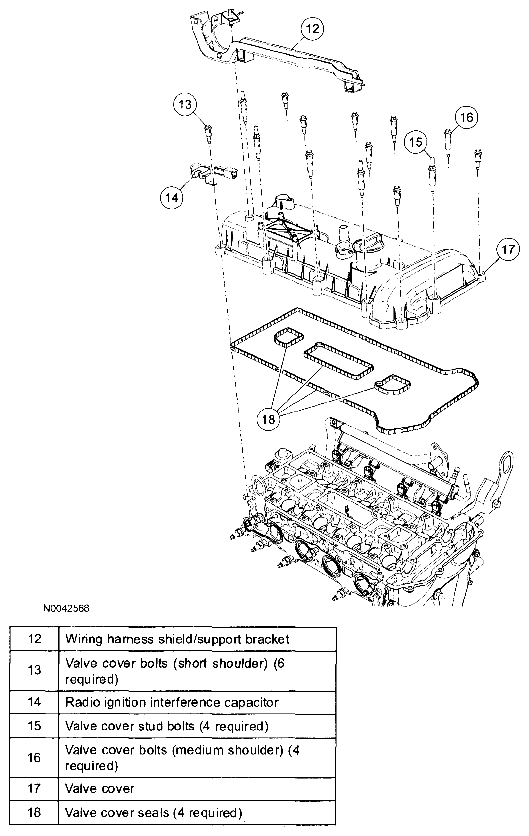

Fig 3: Exploded View Of Valve Cover
G04929116Courtesy of MAZDA MOTORS CORP.
