Timing Chain Removal / Installation - 2.3L: Installation

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the camshaft alignment plate SST .

Fig 1: Identifying Camshaft Alignment Plate (303-465)
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not rotate the camshafts. Damage to the valves and pistons can occur.
If the camshaft sprockets were not removed, use the flats on the camshafts to prevent camshaft rotation and loosen the sprocket bolts.

Fig 2: Locating Flats On Camshaft
Courtesy of MAZDA MOTORS CORP.
If removed, install the camshaft sprockets and the bolts. Do not tighten the bolts at this time.

Fig 3: Locating Camshaft Sprockets Bolts
Courtesy of MAZDA MOTORS CORP.
Install the LH timing chain guide and bolts.

Fig 4: Locating LH Timing Chain Guide With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the timing chain.

Fig 5: Locating Timing Chain
Courtesy of MAZDA MOTORS CORP.
Install the RH timing chain guide.

Fig 6: Locating RH Timing Chain Guide
Courtesy of MAZDA MOTORS CORP.
Install the timing chain tensioner and the bolts. Remove the paper clip to release the piston.

Fig 7: Timing Chain Tensioner Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the camshaft alignment plate SST .

Fig 8: Identifying Camshaft Alignment Plate (303-465)
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not rely on the camshaft alignment plate to prevent camshaft rotation. Damage to the tool or the camshafts can result.
Using the flats on the camshafts to prevent camshaft rotation, tighten the bolts.

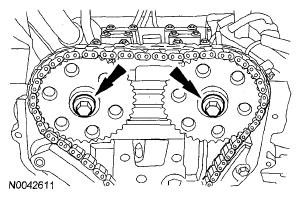

Fig 9: Locating Camshaft Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening Torque:

72 Nm {7.3 kgf-m, 53 ft-lbf}
Install the front cover. See ENGINE FRONT COVER REMOVAL / INSTALLATION - 2.3L ,
