Engine Front Cover Removal / Installation - 2.3L: Notes
WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

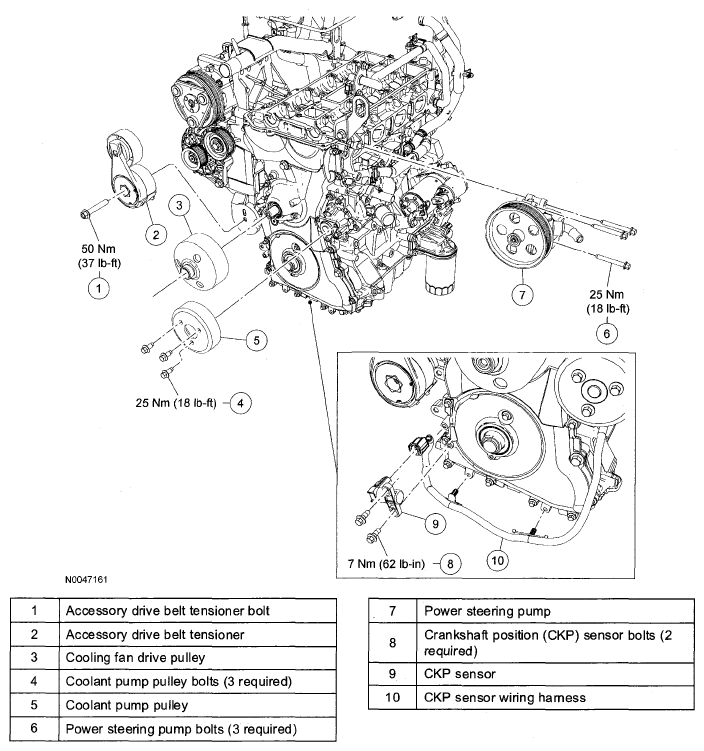

Fig 1: Engine Front Cover Replacement Components With Torque Specifications - 2.3L (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

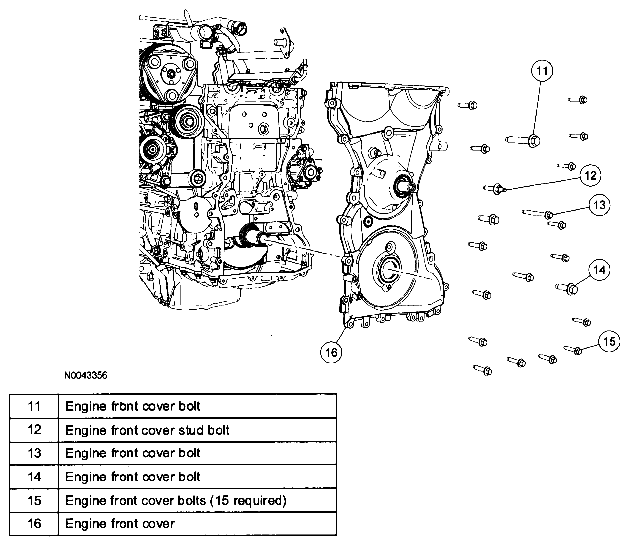

Fig 2: Identifying Engine Front Cover Components - 2.3L (2 Of 2)
