Intake Manifold

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

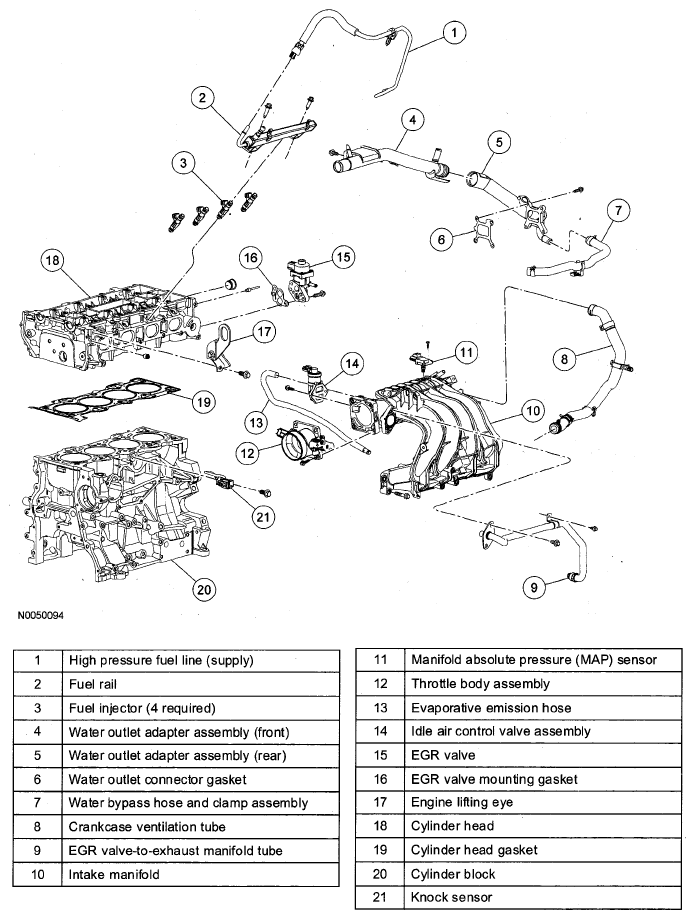

Fig 1: Disassembling View Of Intake Manifold
G04929269Courtesy of MAZDA MOTORS CORP.
