Oil Pressure Sensor Inspection - 2.3L
WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the oil pressure switch.

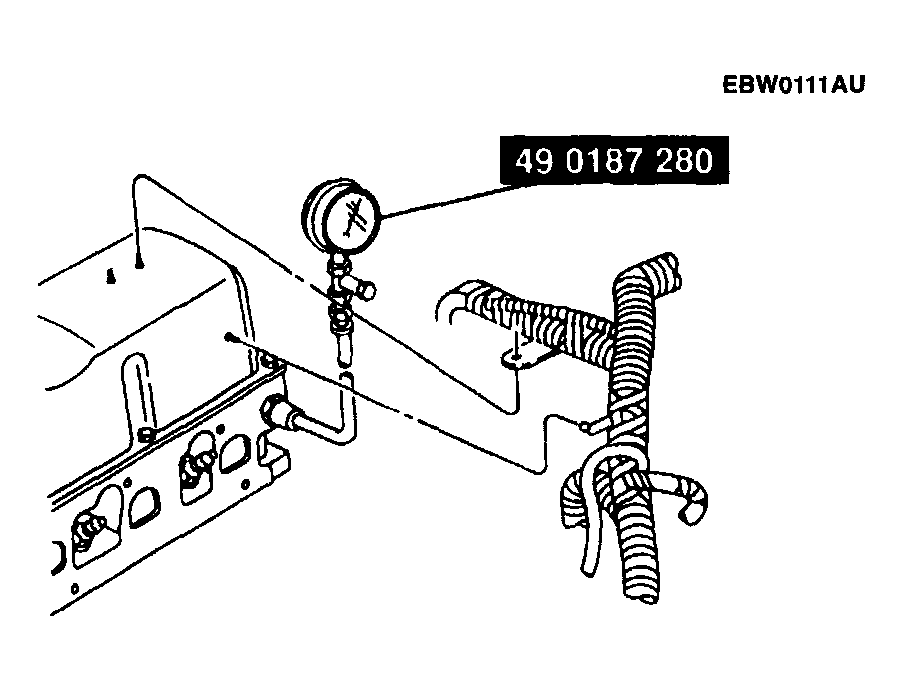

- Screw oil pressure gauge SST into the oil pressure switch installation hole.
- Run the engine at 2000 RPM and note the engine readings.
- If pressure is not within specification (40-60 psi, 276-413 kpa, 2.8-4.2 kgf/cm 2 ), see ENGINE IGNITION SPECIFICATIONS - 2.3L , for further diagnosis.
- Apply sealant to oil pressure switch threads.
- Remove oil pressure gauge SST
and install switch.
Tightening torque
11-24 N.m {1.1-2.4 kgf.m, 8-18 ft.lbf}
