Oil Level Indicator And Tube Removal / Installation - 2.3L

WARNING: This page is about a different car, the 2007 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

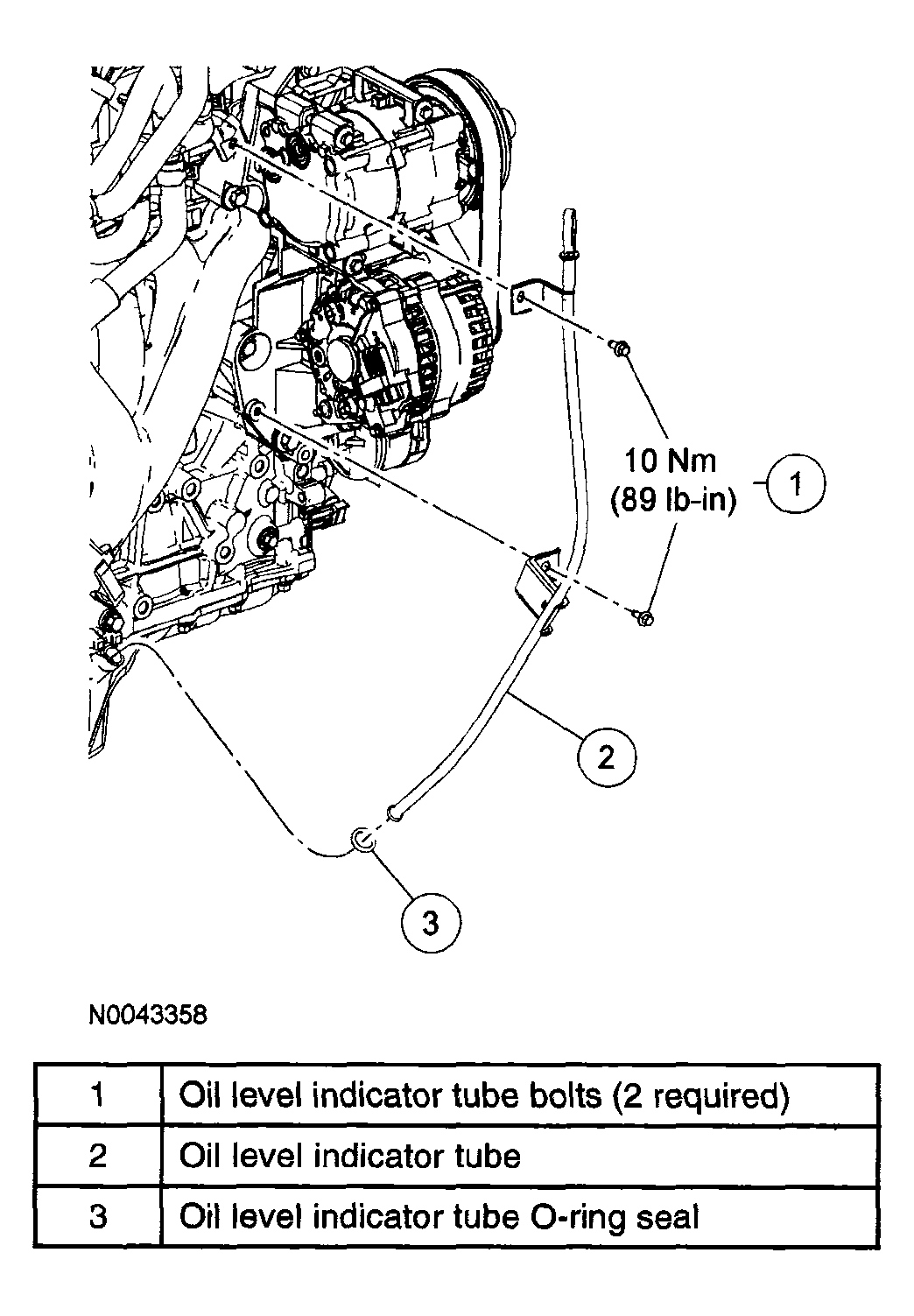

Fig 1: Oil Level Indicator And Tube With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

With the vehicle in NEUTRAL, position it on a hoist. See LIFTING , .

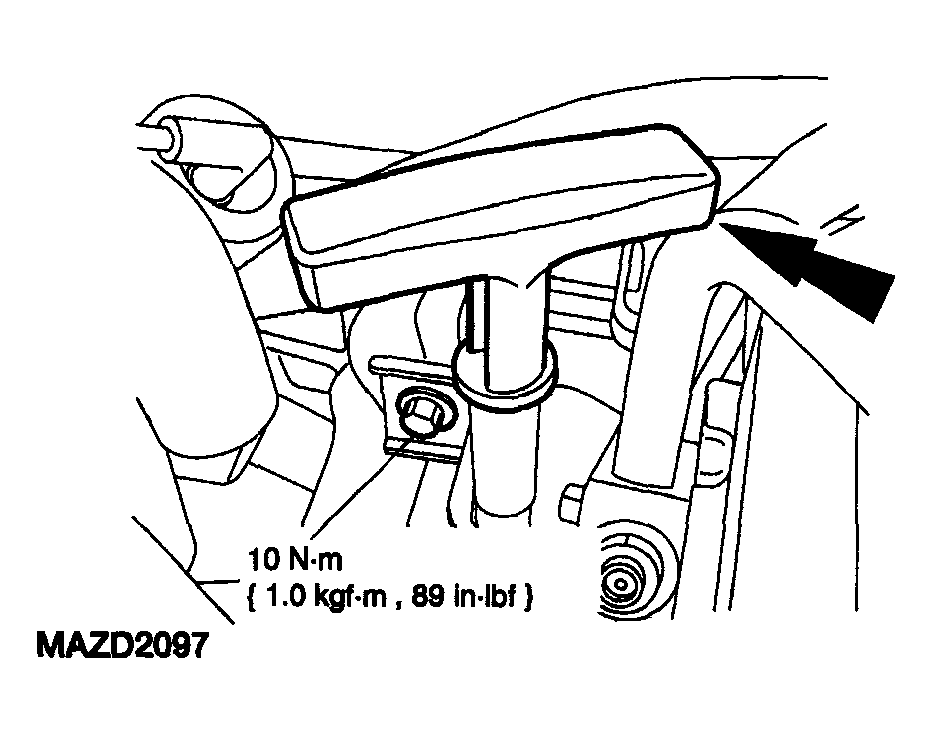

Fig 2: Oil Level Indicator Upper Retaining Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the oil level indicator and the upper retaining bolt.

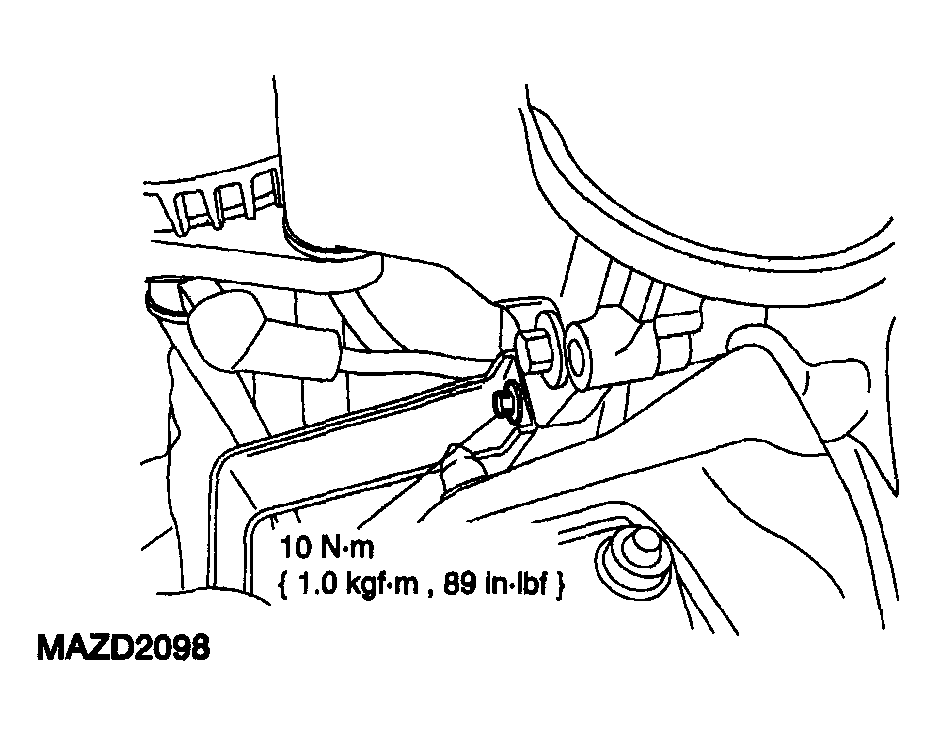

Fig 3: Oil Level Indicator Retaining Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the oil level indicator tube.
- Remove the bolt.
- Remove the oil level indicator tube.
Fig 4: Removing O-Ring From Indicator Ring
Courtesy of MAZDA MOTORS CORP.
Remove the O-ring from the indicator ring.
NOTE:
- Apply clean engine oil to the O-ring before installation of the indicator tube.
To install, reverse the removal procedure.
